LCM-40KN
38.94
Details

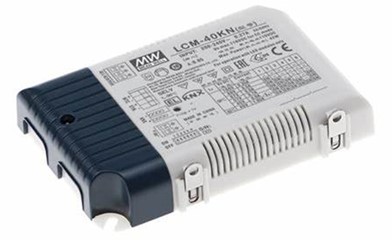

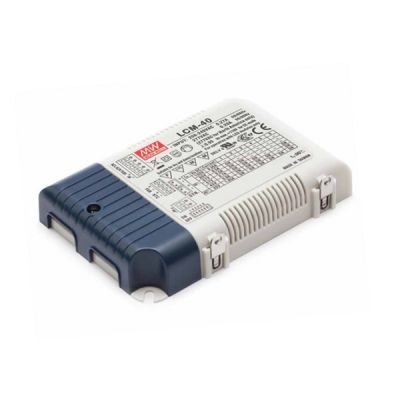

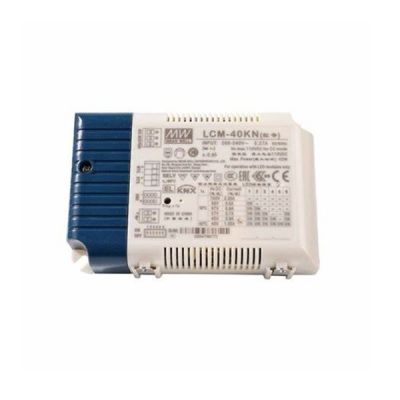

Meanwell LCM-40KN is a 40W AC/DC constant current mode output LED driver. The product features the multiple levels selectable by dip switch and the KNX interface to avoid using the complicated KNX-DALI gateway. At the same time, LCM-40KN operates from 180~ 295VAC and offers different current levels ranging between 350mA and 1050mA. Thanks to the high efficiency high up to 90% with the fanless design, the entire series is able to operate for -30℃~+90℃case temperature under free air convection. In addition, LCM-40KN is equipped with push dimming and synchronization, so as to provide the optimal design flexibility for LED lighting system.
Meanwell LCM-40KN Series Encoding
| LCM | Series Name |
| 40 | Output wattage |
| KN | Built-in KNX interface |
| AUX | Function mode option |
| S | Built-in with KNX Secure function |
| Blank | KNX and push dimming ,with standby power consumption <0.5 W |
| AUX | KNX and push dimming, with standby power consumption <1.2W and Auxiliary DC output |
Meanwell LCM-40KN Series Model Specifications
| Model | LCM-40KN-□ | ||||||
| OUTPUT | CURRENT LEVEL | Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section | |||||
| 350mA | 500mA | 600mA | 700mA (default) | 900mA | 1050mA | ||
| RATED POWER | 42W | ||||||
| DC VOLTAGE RANGE | 2-200V | 2-80V | 2-67V | 2-57V | 2-45V | 2-40V | |
| OPEN CIRCUIT VOLTAGE (max.) | 110V | 65V | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| AUXILIARY DC OUTPUT | Nominal 12V(deviation 11.4~12.6V)@50mA for AUX-Type only | ||||||
| SETUP TIME | 500ms / 230VAC | ||||||
| INPUT | VOLTAGE RANGE | 180 ~ 295VAC 220 ~ 392VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR (Typ.) | PF>=0.975/230VAC, PF>=0.95/277VAC@full load | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=75%) | ||||||
| EFFICIENCY (Typ.) | 90% | ||||||
| AC CURRENT (Typ.) | 0.23A/230VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 20A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 21 units (circuit breaker of type B) / 35 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||||||
| STANDBY POWER CONSUMPTION | <0.5W for Blank-Type, <1.2W for AUX-Type | ||||||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 110 ~ 130V | ||||||
| Shutdown o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shutdown o/p voltage,re-power on to recover | ||||||
| FUNCTION | DIMMING | Please refer to "DIMMING OPERATION" section | |||||
| SYNCHRONIZATION | Please refer to "SYNCHRONIZATION OPERATION” section | ||||||
| TEMP. COMPENSATION | By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section | ||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP. | Tcase=+90℃ | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, BIS IS15885(Part2/Sec13), EAC TP TC 004 approved, GB19510.14 and GB19510.1(by request) ; According to BS EN/EN50172, BS EN/EN 60598-2-22, BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac) |
|||||
| KNX STANDARDS | Certified protocol | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load>=40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1 EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020 | ||||||
| OTHERS | MTBF | 1764.6K hrs min. Telcordia SR-332 (Bellcore) ; 190.4K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 123.5*81.5*23mm (L*W*H) | ||||||
| PACKING | 0.24Kg ; 54pcs/15Kg/1.12CUFT | ||||||
Meanwell LCM-40KN Series Features
l Constant Current mode output with multiple levels selectable by dip switch
l KNX/EIB protocol
l Flicker free design
l Support emergency lighting (EL)
l Integrated constant light output
l Integrated KNX push button interface
l Synchronization up to 10 units
l Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection, etc
l 3 years warranty
Meanwell LCM-40KN Series Applications
l LED indoor lighting
l LED office lighting
l LED architectural lighting
l LED panel lighting

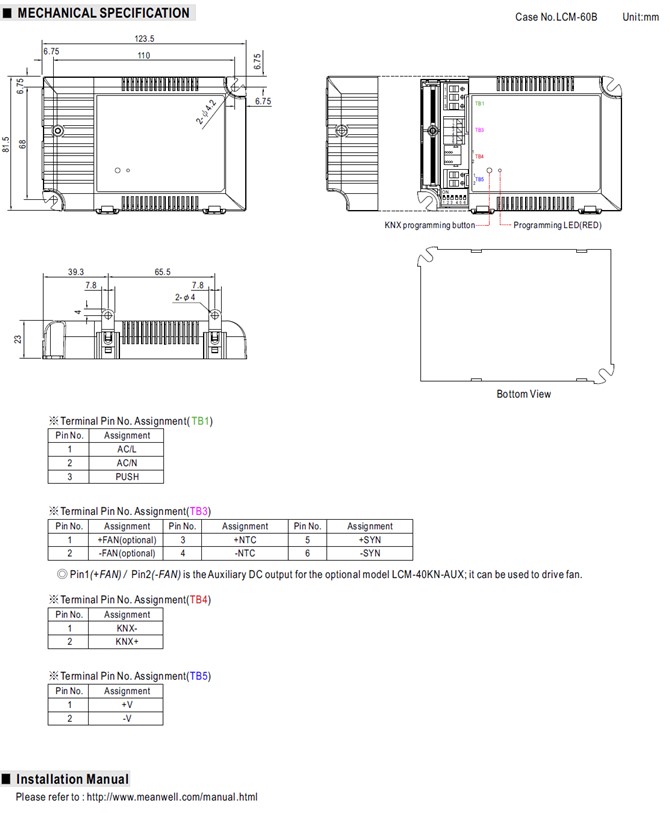

Meanwell LCM-40KN Series Mechanical Diagram
