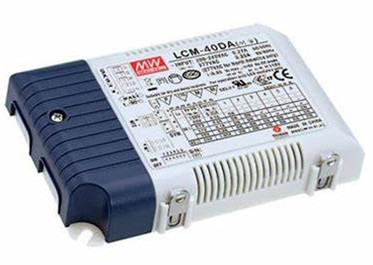

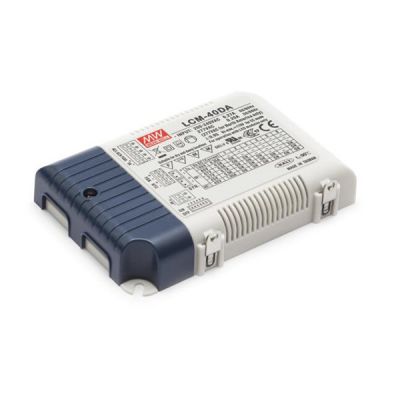

LCM-40DA
28
Details
Meanwell LCM-40DA Series is 40W AC/DC constant current mode output LED driver highlighting adjustable output current by dip switch and the DALI interface with the compliance to IEC62386. At the same time, the product operates from 180~295VAC and offers different current between 350mA and 1050mA. Since the high efficiency reaches up to 91%, with the fanless design, LCM-40DA is able to work for -30℃~+90'℃ case temperature under free air convection. What’s more, it is equipped with push dimming and synchronization functions. Considering its longevity, high reliability, and excellent quality, Meanwell LCM-40DA Series provides optimal design flexibility for LED lighting system
Meanwell LCM-40DA Series Encoding
| LCM | Series Name |
| 40 | Output Wattage |
| DA | DA: Built-in DALI interface and push dimming |
| DA2: Built-in DALI-2 interface and push dimming | |
| AUX | Function mode option: Blank or AUX type |
| Blanks | Standby power consumption <0.5W In stock |
| AUX | Standby power consumption <1.2W and Auxiliary DC output ( 12/50mA) By Request |
Meanwell LCM-40DA Series Model Specifications

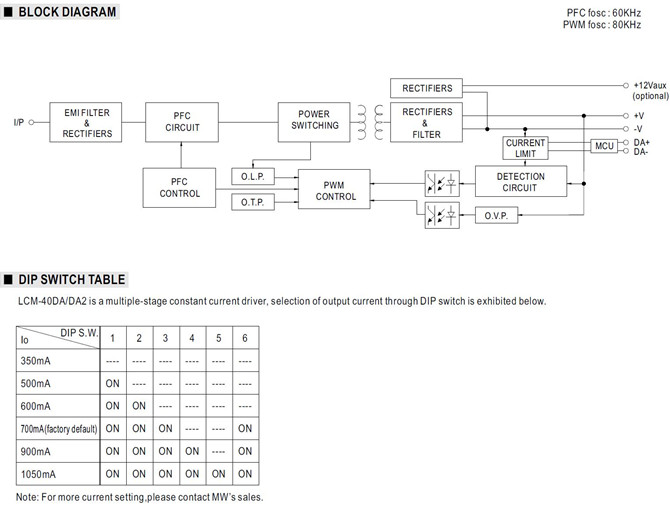

| Model | LCM-40□ | ||||||
| OUTPUT | CURRENT LEVEL | Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section | |||||
| 350mA | 500mA | 600mA | 700mA (default) | 900mA | 1050mA | ||
| RATED POWER | 42W | ||||||
| DC VOLTAGE RANGE | 2-100V | 2-80V | 2-67V | 2-57V | 2-45V | 2-40V | |
| OPEN CIRCUIT VOLTAGE (max.) | 110V | 75V | |||||
| CURRENT RIPPLE | 5.0% max. at rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| AUXILIARY DC OUTPUT | Nominal 12V (deviation 11.4~12.6V)at 50mA for AUX-Type only | ||||||
| SETUP TIME | 500ms / 230VAC | ||||||
| INPUT | VOLTAGE RANGE | 180~295VAC 254~392VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>=0.975/230VAC, PF>=0.95/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | ||||||
| EFFICIENCY (Typ.) | 91.00% | ||||||
| AC CURRENT (Typ.) | 0.23A/230VAC 0.2A/277VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 20A (twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||||||
| STANDBY POWER CONSUMPTION | <0.5W for Blank-Type, <1.2W for AUX-Type | ||||||
| PROTECTION | OVER VOLTAGE | 110 ~ 130V | |||||
| Shutdown o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shutdown o/p voltage,re-power on to recover | ||||||
| FUNCTION | DIMMING | Please refer to "DIMMING OPERATION" section | |||||
| TEMP. COMPENSATION | By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section | ||||||
| SYNCHRONIZATION | Please refer to "SYNCHRONIZATION OPERATION” section | ||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP | Tcase=+90℃ | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL8750(except for DA2-Type), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14, GB19510.1, BIS IS15885(except for DA2-Type), EAC TP TC 004 approved; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)(for DA2-Type only) |
|||||
| DALI STANDARDS | IEC62386-101, 102, 207,251 | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC;I/P-DA:1.5KVAC; O/P-DA:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(at load>=40%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020 | ||||||
| Others | MTBF | 2271.4K hrs min. Telcordia SR-332 (Bellcore) ; 193.7K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 123.5*81.5*23mm (L*W*H) | ||||||
| PACKING | 0.24Kg ; 54pcs/15Kg/1.12CUFT | ||||||
Meanwell LCM-40DA Series Features
l Constant Current mode output with multiple levels selectable by dip switch
l Emergency lighting application is available according to IEC61347-2-13
l Built-in active PFC function and classⅡdesign. Standby power consumption <0.5W
l Functions: DALI interface (logarithm or linear dimming curve selectable), push dimming synchronization up to 10units
l 3 years warranty
Meanwell LCM-40DA Series Applications
l LED indoor lighting
l LED office lighting
l LED commercial lighting
l LED panel lighting
l Industrial lighting

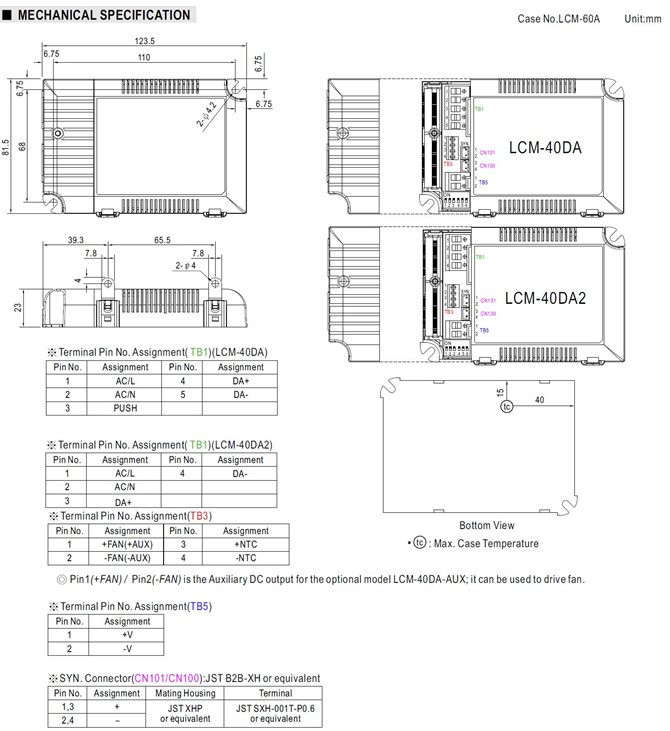

Meanwell LCM-40DA Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
Abundant supply to meet market demand. The warehouse is rich in goods with all kinds of commodities, which Can meet the needs of different customers.
Fast delivery and high efficiency. The warehouse has sufficient supply, when customers need to order, we can quickly find the goods, and deliver out, which effectively improves the efficiency and saves valuable time for customers
