LCM-40
27
Details

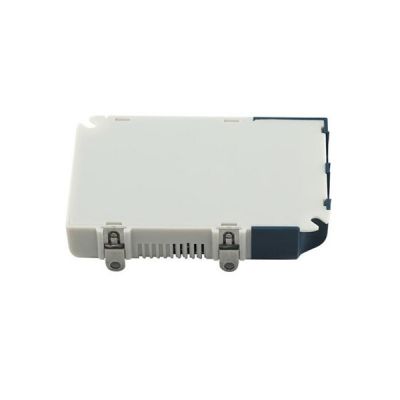

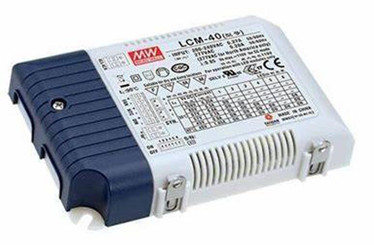

Meanwell LCM-40 Series is 40W LED AC/DC constant current mode output LED driver highlighting the multiple levels selectable by dip switch. Since the efficiency reaches high up to 92% with no fan design, LCM-40 is able to work for -30℃~+90℃ case temperature under free air convection. In addition, it is equipped with various functions such as the dimming function and synchronization. Considering its longevity, high reliability, and excellent quality, Meanwell LCM-40 Series provides optimal design flexibility for LED lighting system.
Meanwell LCM-40 Series Model Encoding
| LCM | Series Name |
| 40 | Output Wattage |
| □ | EO: Optional wireless ENOcean Module |
| Blank | 3 in 1 Dimming ( dim-to-off) |
| EO | Wireless driver with integrated EnOcean module |
Meanwell LCM-40 Series Model Specifications
| Model | LCM-40 | ||||||

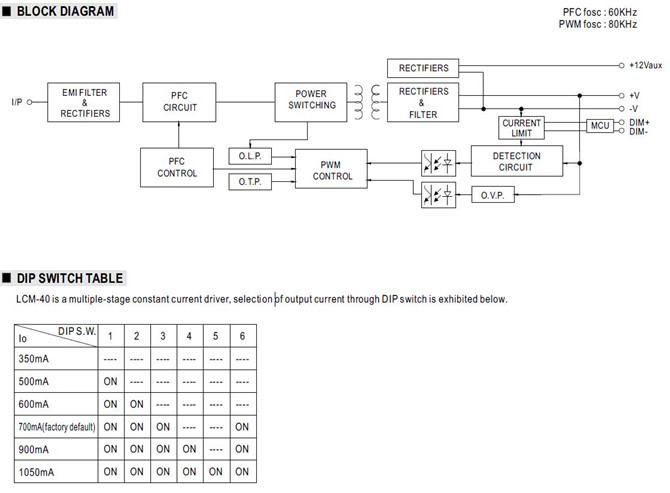

| OUTPUT | CURRENT LEVEL | Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section | |||||
| 350mA | 500mA | 600mA | 700mA (default) | 900mA | 1050mA | ||
| RATED POWER | 42W | ||||||
| DC VOLTAGE RANGE | 2-100V | 2-80V | 2-67V | 2-57V | 2-45V | 2-40V | |
| OPEN CIRCUIT VOLTAGE (max.) | 110V | 65V | |||||
| CURRENT RIPPLE | 5.0% max. at rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| AUXILIARY DC OUTPUT | Nominal 12V (deviation 11.4~12.6V) at 50mA | ||||||
| INPUT | VOLTAGE RANGE | 180~295VAC 254~417VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>=0.975/230VAC, PF>=0.96/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section | ||||||
| EFFICIENCY (Typ.) | 91.00% | ||||||
| AC CURRENT (Typ.) | 0.23A/230VAC 0.2A/277VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||||||
| STANDBY POWER CONSUMPTION | <1W | ||||||
| PROTECTION | OVER VOLTAGE | 110 ~ 130V | |||||
| Shutdown o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shutdown o/p voltage,re-power on to recover | ||||||
| FUNCTION | WIRELESS PROTOCOL (Optional) | EnOcean standard 868 MHz; Max. device(switch) saved into the memory : 33 | |||||
| DIMMING | Please refer to "DIMMING OPERATION" section | ||||||
| TEMP. COMPENSATION | By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section | ||||||
| SYNCHRONIZATION | Please refer to "SYNCHRONIZATION OPERATION” section | ||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP | Tcase=+90℃ | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,GB19510.14, GB19510.1, BIS IS15885, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(at load>=40%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020 | ||||||
| Others | MTBF | 2397.0K hrs min. Telcordia SR-332 (Bellcore) ; 260.6K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 123.5*81.5*23mm (L*W*H) | ||||||
| PACKING | 0.24Kg ; 54pcs/15Kg/1.12CUFT | ||||||
Meanwell LCM-40 Series Features
l Constant Current mode output with multiple levels selectable by dip switch
l Plastic housing with classⅡdesign
l Built-in active PFC function
l Standby power consumption <1W
l Functions: 3 in 1 dimming (dim-to-off);
l Auxiliary DC output; synchronization up to 10 units
l Optional: Wireless LED driver with integrated EnOcean module
l 3 years warranty
Meanwell LCM-40 Series Applications
l LED indoor lighting
l LED office lighting
l LED architectural lighting
l LED panel lighting
Meanwell LCM-40 Series Mechanical Diagram
