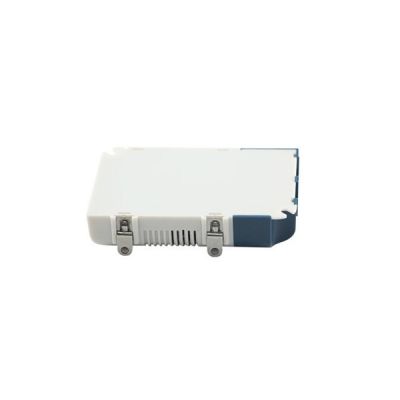

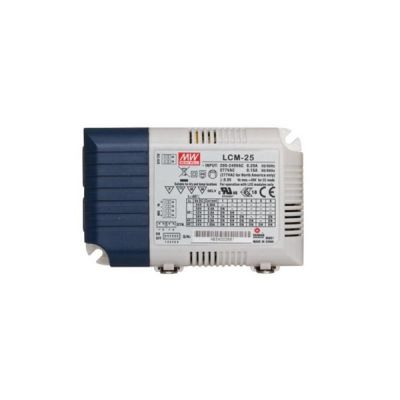

LCM-25 IoT
25
Details
Meanwell LCM-25 IoT Series is 25W AC/DC constant current mode output L ED driver highlighting adjustable output current via dip switch and integrated Bluetooth control solutions. At the same time, the entire series is able to operate from 180 - 277VAC with different current levels ranging between 350mA and 1050mA. Since the efficiency reaches high up to 84.5% based on fanless design. LCM-25 IoT could work for -20℃~+85℃ case temperature under free air convection. What’s more, LCM-25 IoT is designed with synchronization function, and LCM-25 BLE LED power supply also provides Push Dim dimming function, users can do dimming control of a single area through the traditional wall press switch, which not only retains traditional usage habits, but also has intelligent control use. Considering its long lifetime, high efficiency and excellent reliability, Meanwell LCM-25 IoT Series is an ideal solution for the optimal design flexibility for LED lighting system and upgrade lighting to be an intelligent lighting system.
Meanwell LCM-25 IoT Series Encoding
| LCM | Series Name |
| 25 | Output wattage |
| BLE | Built-in wireless module brand and solution |
| Brand & Solution | Wireless Standard |
| Casambi BLE | Bluetooth low energy mesh 2.4GHz protocol |
| Tuya TY1 | Bluetooth low energy mesh 2.4GHz protocol |
| Silvair SVA | Bluetooth low energy mesh 2.4GHz protocol |
Meanwell LCM-25 IoT Series Model Specifications
| Model | LCM-25 | ||||||
| OUTPUT | CURRENT LEVEL | Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section | |||||
| 350mA | 500mA | 600mA | 700mA (default) | 900mA | 1050mA | ||
| RATED POWER | 18.9W | 25.2W | |||||
| DC VOLTAGE RANGE | 6-54V | 6-50V | 6-42V | 6-36V | 6-28V | 6-24V | |
| OPEN CIRCUIT VOLTAGE (max.) | 59V | 41V | |||||
| CURRENT RIPPLE | 5.0% max. at rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| Input | VOLTAGE RANGE | 180 ~ 277VAC 254 ~ 380VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>=0.94/230VAC, PF>=0.91/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | ||||||
| EFFICIENCY (Typ.) | 84.50% | ||||||
| AC CURRENT (Typ.) | 0.17A/230VAC 0.15A/277VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
26 units (circuit breaker of type B) / 44 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||||||
| STANDBY POWER CONSUMPTION | <1W | ||||||
| FUNCTION | WIRELESS PROTOCOL | Bluetooth low energy 2.4GHz protocol | |||||
| DIMMING RANGE | 0~100% Minimum dimming level:6%,dim to off | ||||||
| SYNCHRONIZATION | Please refer to "SYNCHRONIZATION OPERATION” section | ||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP | Tcase=+85℃ | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL8750(except for DA2-Type), CSA C22.2 NO.250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,GB19510.14, GB19510.1,BIS IS15885, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(at load>=50%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020 |
||||||
| Others | MTBF | 2712.7K hrs min. Telcordia SR-332 (Bellcore) ; 249.5K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 105*68*23mm (L*W*H) | ||||||
| PACKING | 0.17Kg ; 72pcs/13.2Kg/1.04CUFT | ||||||
Meanwell LCM-25 IoT Series Features
l Constant Current mode output with multiple levels selectable by dip switch
l Flicker free design
l Plastic housing with class Il design
l Functions: Bluetooth low energy mesh Synchronization up to 10units
l 3 years warranty
Meanwell LCM-25 IoT Series Applicatons
l LED indoor lighting
l LED office lighting
l LED architectural lighting
l LED panel lighting
l LED commercial lighting
l Intelligent lighting control

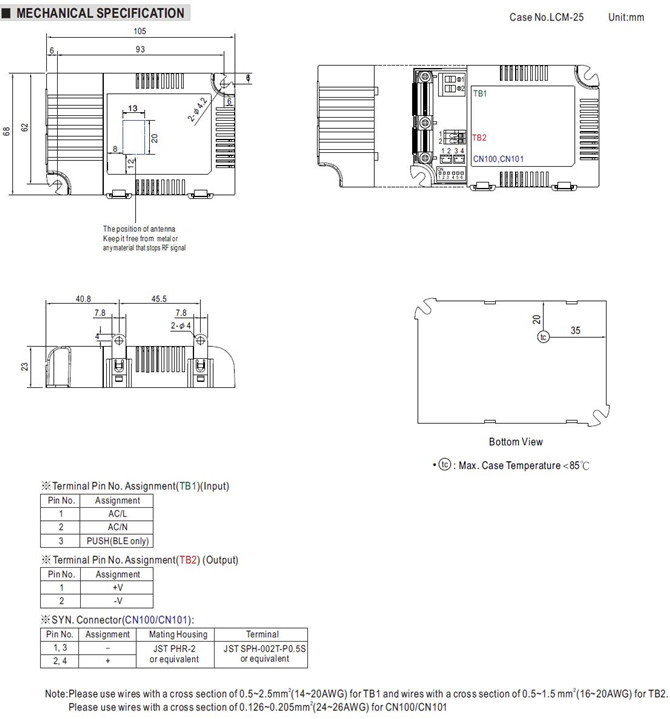

Meanwell LCM-25 IoT Series Mechanical Diagram
