KSI-01U
132.46
Details

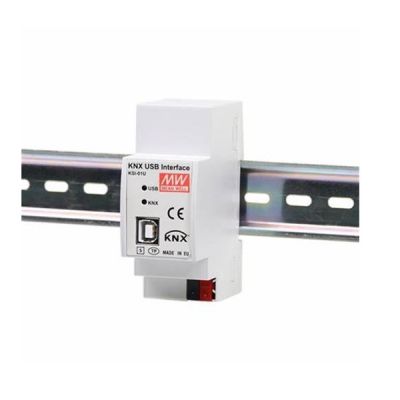

Meanwell KSI-01U is an USB interface providing galvanic isolated bidirectional access to the KNX bus line. It makes network configurations less effort and time-consuming. At the same time, the KSI-O1U is used to access all bus connected devices in the KNX bus system including commissioning, addressing, setting parameters, diagnostic functions, visualization, protocol ... etc.
In addition, the connection between the KNX data bus and a PC with standard software like ETS, EITT (also Raw Frame operating mode) and other software is handled by the FALCON driver. Moreover, the KSI-O1U supports long messages (up to 220byte APDU length) and ensures easy handling in software under operating systems not supported by the FALCON driver (e.g. Linux). The communication protocol used for communication between interface and host is the flexible “cEMl” protocol.
Meanwell KSI-01U Product Specifications
| MODEL | KSI-01U | |
| OUTPUT | PROGRAMMING INTERFACE | KNX Protocol |
| LED INDICATOR | Green | |
| INPUT | COMM. INTERFACE | USB Type B |
| POWER SUPPLY | 21~30VDC(KNX TP bus); 5VDC (USB bus) | |
| CURRENT CONSUMPTION | <5mA(KNX TP bus); <20mA (USB bus) | |
| ENVIRONMENT | WORKING TEMP. | -5 ~ +45℃ |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +60℃, 5 ~ 93% RH non-condensing | |
| POLLUTION DEGREE | 2 according to IEC60664-1 | |
| PROTECTION TYPE | IP20 according to IEC60529 | |
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved; Compliance to EN50428; EN62479 |
| KNX STANDARDS | ISO/IEC 14543-3, EN50090, EN13321-1 | |
| EMC EMISSION | Compliance to EN50491-5, EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11, EAC TP TC 020 | |
| Others | MTBF | 100K hrs min |
| DIMENSION | 36*90*71mm (W*H*D) | |
| PACKING | 0.070Kg; 1pcs | |
| DIN RAIL MOUNTING | 35 mm rail; 2 units wide | |
Meanwell KSI-01U Product Features
l No additional external power supply required
l KNX commissioning, addressing and parameters settings
l KNX protocol and system visualization
l Diagnostic operations
l Long messages support up to 220 byte APDU
l 3 years warranty
Meanwell KSI-01U Product Applications
l Office lighting
l Smart home lighting
l Luxury villas lighting
l LED indoor lighting
l Building automation

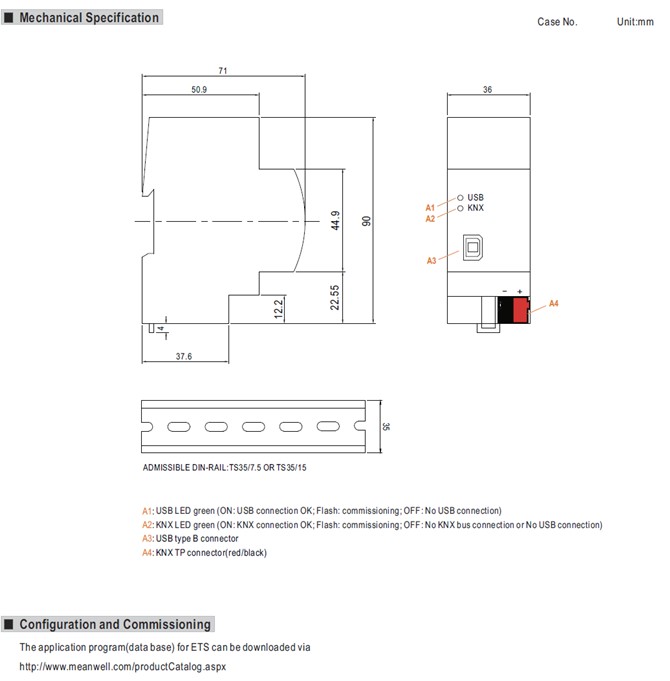

Meanwell KSI-01U Product Mechanical Diagram
