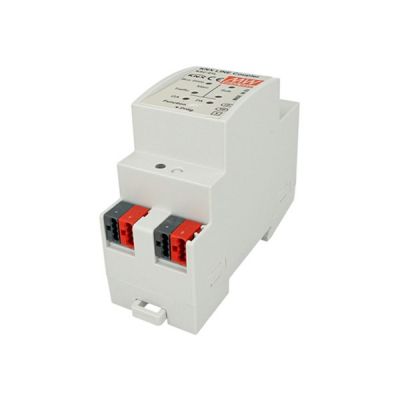

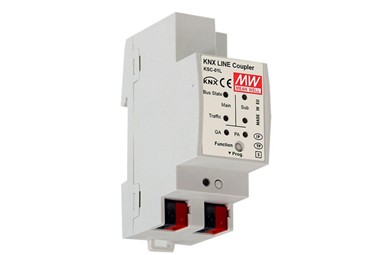

The KNX TP Media Coupler KSC works as a KNX line/area coupler to provide a bi-directional data connection between two KNX TP lines/areas. KNX TP main line and KNX TP subline are coupled having a galvanic isolation in between. By using the TP Coupler application, KSC can be used as a KNX TP line coupler to connect several KNX TP lines but also as a KNX TP area coupler to connect several TP areas or different KNX TP installation systems via a TP Backbone. In addition, telegram filtering is accomplished according to the installation place in the hierarchy and according to the built-in filter tables for group communication. For detailed diagnosis, all operational modes/states are shown by a duo-LED display. Using the TP Repeater application, KSC is able to extend a KNX TP line providing unfiltered data transfer and galvanic isolation between segments. Up to four-line segments can form a single KNX TP line by connecting three KSC line repeaters. Each line segment requires its own KNX bus power supply unit to ease commissioning and troubleshooting
Meanwell KSC Series Encoding
| Model NO | Function |
| KSC-01L | KNX classis TP Line Coupler/Repeater |
| KSC-02L | KNX Secure Line Coupler/Repeater |
Meanwell KSC Series Model Specifications
| MODEL | KSC Series | |
| SUB LINE | INTERFACE | KNX Protocol |
| INPUT VOLTAGE | 21~30VDC(KNX TP bus) | |
| LED INDICATOR | Various color see mechnical specification part | |
| MAIN LINE | INTERFACE | KNX Protocol |
| INPUT VOLTAGE | 21~30VDC (KNX TP bus) | |
| CURRENT CONSUMPTION | <10mA(KNX mainTP line) | |
| ENVIRONMENT | WORKING TEMP. | -5 ~ +45℃ |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +60℃, 5 ~ 93% RH non-condensing | |
| POLLUTION DEGREE | 2 according to IEC60664-1 | |
| PROTECTION TYPE | IP20 according to IEC60529 | |
| SAFETY & EMC | SAFETY STANDARDS | EAC TP TC 004 approved; Compliance to EN60669 |
| KNX STANDARDS | ISO/IEC 14543-3, EN50090, EN13321-1 | |
| EMC EMISSION | Compliance to EN50491-5, EN61000-6, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,11, EAC TP TC 020 | |
| Others | MTBF | 100K hrs min. |
| DIMENSION | 36*90*71mm (W*H*D) | |
| PACKING | 35 mm rail; 2 units wide | |
| DIN RAIL MOUNTING | 0.076Kg; 1pcs | |
Meanwell KSC Series Features
l KNX TP Line coupler/Repeater
l Telegram filtering function
l Long messages support up to 240 byte APDU
l Trace the subline traffic
l Diagnostic functions
l Manual function
l 3 years warranty
Meanwell KSC Series Applications
l Office lighting
l Smart home lighting
l Luxury villas lighting
l LED indoor lighting
l Building automation

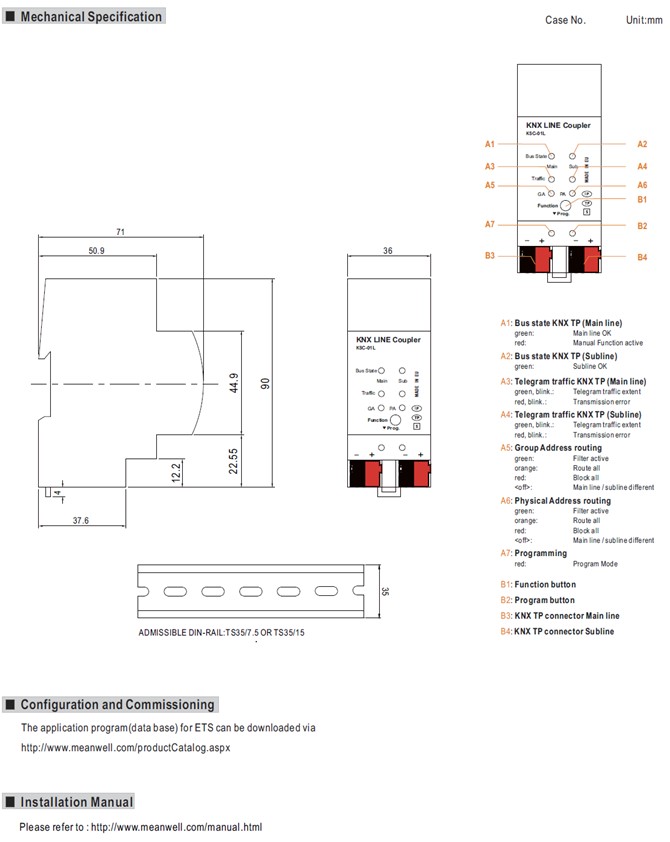

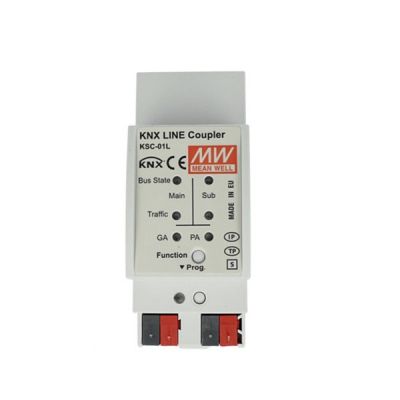

Meanwell KSC Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
