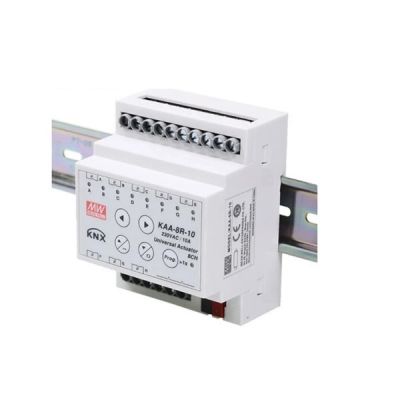

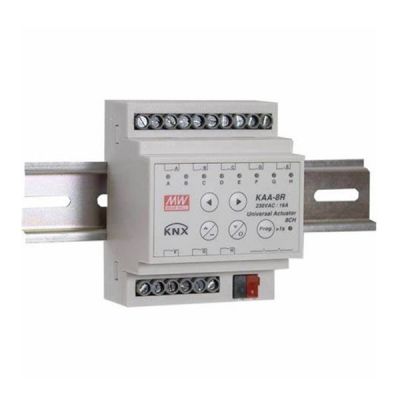

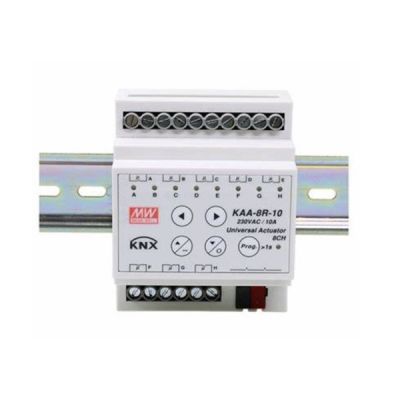

Meanwell KAA-8R-16S is a 8 channel device with high quality independent latching relay for switch, shutter or any possible mixed applications. Meanwhile, the compact design with 4 units (72 mm) wide modular makes it suitable for installation in the distribution board on 35mm mounting rails in the EIB 1 KNX application. The connection to the KNX bus is implemented via a bus connection terminal. Additionally, the new version supports KNX Data Secure function. KNX Data Secure offers protection against manipulation in building automation, and can be configured in the ETS project. The switching relays are particularly suitable for switching ohmic loads, capacitive loads, for instance LED drivers and inductive loads as well as motors in shutter or blind applications. Moreover, Meanwell KAA-8R-16S is powered via the ElB/ KNX and do not require any additional power supply.
Meanwell KAA-8R-16S Encoding
| KAA | Series Name |
| 8R | R: Relay on/off for 8-channel (8fold) |
| □ | Blank: 16A Per channel |
| -10: 10A per channel | |
| S | Built-in with KNX Secure Function |
| Blank | 8 Channel actuator, 16A per channel |
| -10 | 8 Channel actuator, 10A per channel |
Meanwell KAA-8R-16S Specifications
| ORDER NO | KAA-8R-16S | |
| SUPPLY | SAFETY MODEL NO. | KAA-8R-S |
| KNX BUS VOLTAGE | 21-31V | |
| CURRENT CONSU MPTION | <10mA | |
| POWER CONSUMPTION | <180mW | |
| Nr. OF SWITCHING OUTPUT | 8 | |
| Nr. OF SHUTTER OUTPUT | 4 | |
| OUTPUT TYPE | Independent, potential-free bistable(latching) relay | |
| OUTPUT SWITCHING RATINGS |
VOLTAGE | 230VAC@50Hz |
| CURRENT OHMIC LOAD | 16A | |
| CURRENT CAPACITIVE LOAD | 220μF(See Note.2) | |
| MAX. INRUSH CURRENT | 800A(max. 200μs),165A(max. 20ms) | |
| EN60947-4-1 AC1(COS Ѳ =0.8) | 16A | |
| EN60947-4-1 AC3(COS Ѳ =0.45) | 8A | |
| EN60947-4-1 AC5a(COS Ѳ =0.45) | 8A | |
| EN60947-4-1 AC5b | 16A | |
| MAX. TOTAL CURRENT OF THE ACTUATOR | 80A | |
| OUTPUT SERVICE LIFE |
MECHANICAL SERVICE LIFE | >106 |
| ELECTRICAL ENDURANCE EN60669-1 19.1 | 10(See Note.2) | |
| EN60669-1 19.2 , FLOURSCENT LAMP(AX) | 10(See Note.2) | |
| OPERATING & DISPLAY | PROGRAMMING BUTTON/LED | Program the individual address |
| MANUAL BUTTON/LED | Manual control and indication | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +45℃(3K5) |
| STORAGE TEMP. | -35 ~ +70℃ | |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| PROTECTION CLASS | Ⅱ, According to EN61140 | |
| OVER VOLTAGE CATEGORY | Ⅲ, According to EN60664-1 | |
| POLLUTION DEGREE | 2, According to EN60664-1 | |
| DEGREE OF PROTECTION | IP20,According to EN60529 | |
| CONNECTIONS | SCREW TERMINAL | 0.5 – 4.0mm² solid core 0.5 - 2.5mm² nely stranded |
| KNX BUS CONNECTION TERMINAL | 0.8mmψ, solid core | |
| OTHERS | MTBF | 597.8K hrs min. Telcordia SR-332 (Bellcore) ; 447.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 72*90*57mm (W*H*D) | |
| MOUNTING WIDTH IN UNITS | 4 | |

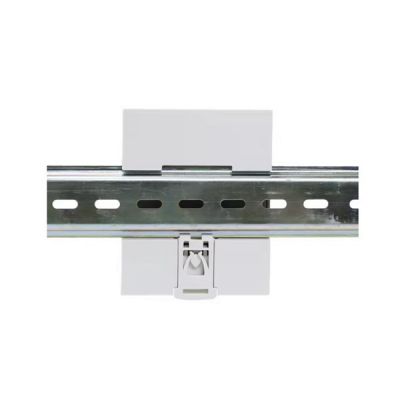

| DIN RAIL MOUNTING | 35mm mounting rail according to DIN EN60715 | |
| PACKING | 0.312Kg ; 48pcs/16Kg/1.02CUFT | |
Meanwell KAA-8R-16S Features
l 3 years warranty
l 8 channel actuator in a compact size
l Suitable for various and mixed applications
l For AX, C-load, capacitive & inductive of loads
l Program via ETS5.0 software
l Support KNX Data Secure
l Manual control via Push button
l Programmable various time and scene function
Meanwell KAA-8R-16S Applications
l Building Automation
l Lighting switch
l Shutter/Blind control
l Heating control
l Ventilation function
Meanwell KAA-8R-16S Mechanical Diagram
