KAA-4R4V-S
190.54
Details

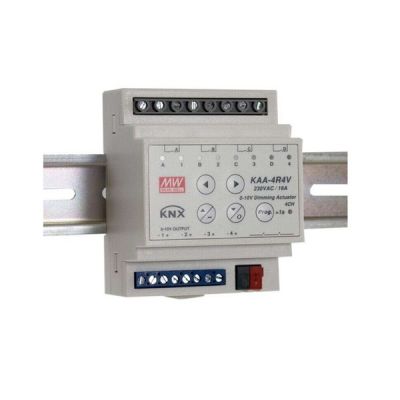

Meanwell KAA-4R4V-S is a 4 channels device with high quality independent latching relay to turn on or off, which is suitable for Meanwell all kinds of LED drivers. The product specification indicates the maximum number of recommended LED drivers per channel which is easy for building planning. Based on the KNX architecture, KNX system engineers can easily program through the ETS system as needed during planning or use, or manually through the physical buttons on the panel. At the same time, KAA-4R4V-S is independently configured with a green LED on each channel to indicate the status of the switch. The compact design with 4 units (72mm) wide modular makes it suitable for installation in the distribution board on 35mm mounting rails in the EIB/KNX application. The connection to the KNX bus is implemented via a bus connection terminal. The new version also supports KNX Data Secure function. KNX Data Secure offers protection against manipulation in building automation, and can be configured in the ETS project. In addition to the basic switch function, a DC O (1)-10V interface by current sinking is provided for dimming the connected LED driver or ballast. The dimming curve can be adjusted to linear or logarithmic mode, so that the end user has excellent dimming experience. Moreover, it can be used with motion sensors in the buildings to save energy. The dimmer is powered via the EIB/KNX and do not require any additional power supply. As result, KAA-4R4V-S is featuring both reliability and multi functionality to meet various needs in a modern building.
Meanwell KAA-4R4V-S Series Encoding
| KAA | Series Name |
| 4R4V | R: Relay on/off for 4-channel (4 fold) V: 0(1)-10V dimming for 4-channel (4 fold) |
| □ | -10: 10A per channel |
| Blank: 16A per channel | |
| S | Built-in with KNX Secure function |
| -10 | 4 Channel actuator, 10A per channel |
| Blank | 4 Channel actuator, 16A per channel |
Meanwell KAA-4R4V-S Series Model Specifications
| MODEL | KAA-4R4V-10S | |
| SUPPLY | KNX BUS VOLTAGE | 21-31V |
| CURRENT CONSU MPTION | <14mA | |
| POWER CONSUMPTION | <250mW | |
| OUTPUT CONTROL | VOLTAGE RANGE | 0-10V |
| NO. OF CONTROL OUTPUT | 4 | |
| TYPE OF CONTROL | passive | |
| MAX. CABLE LENGTH AT FULL LOAD | 50mA | |
| MAX. CURRENT PER OUTPUT | 100m with cable cross-section 1.5mm2 | |
| OUTPUT RELAY OUTPUT SWITCHING RATINGS | Nr. OF RELAY | 4 |
| Nr. OF SHUTTER OUTPUT | 2 | |
| INDEPENDENT & POTENTIAL-FREE PER RELAY | Yes | |
| CURRENT OHMIC LOAD | 10A | |
| CURRENT CAPACITIVE LOAD | 220μF(See Note.2) | |
| MAX. INRUSH CURRENT | 400A(max. 200μs),80A(max. 20ms) | |
| EN60947-4-1 AC1(COS Ѳ=0.8) | 10A | |
| EN60947-4-1 AC5a(COS Ѳ =0.45) | 8A | |
| EN60947-4-1 AC5b | 10A | |
| MAX. TOTAL CURRENT OF THE ACTUATOR | 40A | |
| OUTPUT SERVICE LIFE | MECHANICAL SERVICE LIFE | >106 |
| ELECTRICAL ENDURANCE EN60669-1 19.1 | 4*104(See Note.2) | |
| EN60669-1 19.2, FLOURSCENT LAMP(AX) | 104(See Note.2) | |
| OPERATING & DISPLAY | PROGRAMMING BUTTON/LED | For set the individual address |
| MANUAL BUTTON/LED | For manually control the relay and dimming | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +45℃ (3K5) |
| STORAGE TEMP. | -35 ~ +70℃ | |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| PROTECTION CLASS | Ⅱ, According to EN61140 | |
| OVER VOLTAGE CATEGORY | Ⅲ,According to EN60664-1 | |
| POLLUTION DEGREE | 2, According to EN60664-1 | |
| DEGREE OF PROTECTION | IP20,According to EN60529 | |
| SAFETY & EMC | SAFETY STANDARDS | BS EN/EN50491-3, BS EN/EN60669-1, BS EN/EN60669-2-1, BS EN/EN60669-2-5(See Note.2), EAC TP TC 004 approved |
| EMC EMISSION | Compliance to BS EN/EN50491-5-1,-2,-3, BS EN/EN50090-2-2, BS EN/EN60669-2-1, BS EN/EN60669-2-5, BS EN/EN63044-5-1,-2,-3(See Note.2), EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN50491-5-1,-2,-3, BS EN/EN50090-2-2, BS EN/EN60669-2-1, BS EN/EN60669-2-5, BS EN/EN63044-5-1,-2,-3(See Note.2), EAC TP TC 020 | |
| WITHSTAND VOLTAGE | Between switching and SELV control circuit：3.5KVAC | |
| CONNECTIONS | SCREW TERMINAL | 0.5 – 4.0mm² solid core 0,5 - 2,5mm² finely stranded |
| KNX BUS CONNECTION TERMINAL | 0.8mmψ, solid core | |
| OTHERS | MTBF | 686.9K hrs min. Telcordia SR-332 (Bellcore) ; 302.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 72*90*57mm (W*H*D) | |
| MOUNTING WIDTH IN UNITS | 4 | |
| DIN RAIL MOUNTING | 35mm mounting rail according to DIN EN60715 | |
| PACKING | 0.247Kg ; 48pcs/12.53Kg/1.02CUFT | |
Meanwell KAA-4R4V-S Series Features
l Dimming and switching LED driver and conventional electronic ballast
l LED indicator for each channel
l Linear or logarithmic dimming curve
l programable via ETS software
l Support KNX Data Secure
l Manual control via Push button on panel
l Programmable various time and scene function
l 3 years warranty
Meanwell KAA-4R4V-S Series Applications
l Building Automation
l Lighting switch/dimming control
l Shutter/Blind control

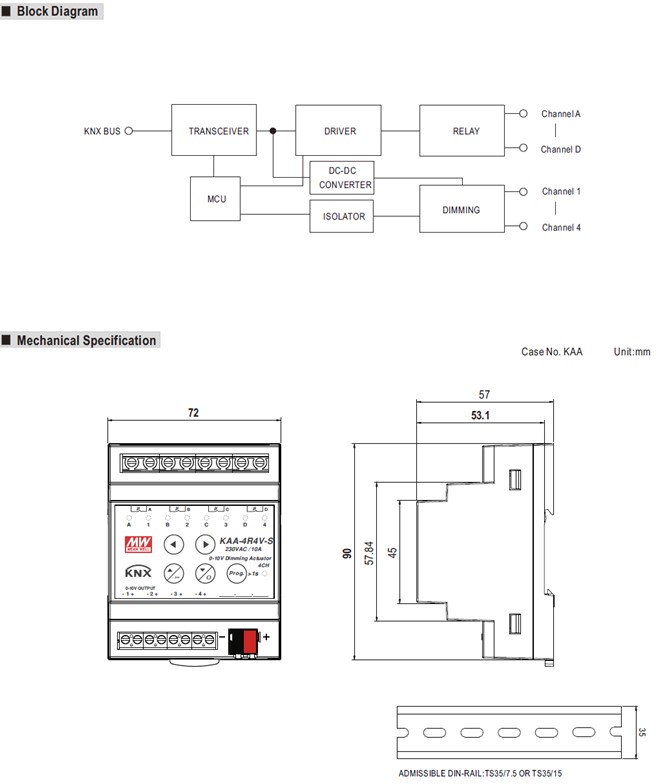

Meanwell KAA-4R4V-S Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
