Meanwell 90W AC-DC PCB-Mount Green Power Module

- +
Availability:In stock
SKU Meanwell IRM-90
Brand Meanwell
Details

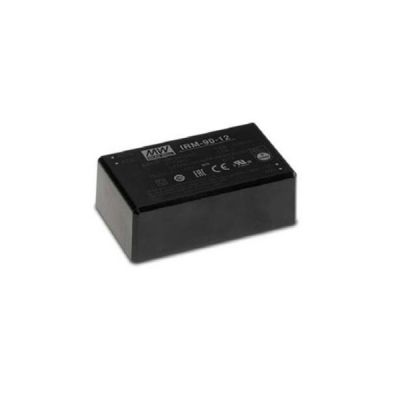

Meanwell IRM-90 Series is a 90W miniature (87*52* 29.5mm) AC-DC PCB-mount module type power supply. They are ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. The series allows the universal input voltage range of 80~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone together enhance the heat dissipation and meet the anti-vibration demand up to 2~ 5G anti-vibration. Moreover, IRM-90 provides the fundamental resistance to dust and moisture. With the high efficiency up to 93% and the extremely low no-load power consumption below 0.21W, Meanwell IRM-90 series fulfills the worldwide regulation for the low power consumption requirement for electronics. Since the series is Class II design (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme EMC features keep the end electronic units from electromagnetic interference. In addition to the PCB mounting style model, IRM-90 series also offers the screw terminal style model (ST). Due to its high reliability, low cost and longevity, Meanwell IRM-90 series is ideal for various Industrial electrical applications.

Meanwell IRM-90 Series Features

Meanwell IRM-90 Series Encoding

IRM Series Name
90 Rated Wattage
12 Output Voltage

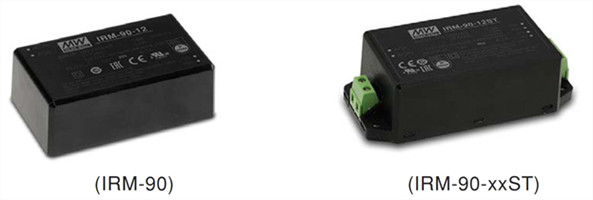

ST Blank: PCB mounting Style

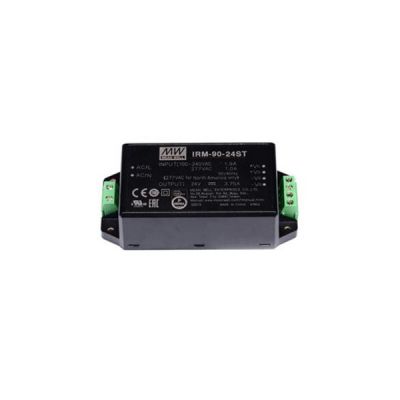

ST: Screw Terminal Style

Meanwell IRM-90 Series Model Specifications

Model   IRM-90-12 IRM-90-15 IRM-90-24 IRM-90-48
OUTPUT DC VOLTAGE 12V 15V 24V 48V
CURRENT   Peak (10Sec.)   7.37A 6.23A 4.13A 2.07A
Convection 6.7A 5.67A 3.75A 1.88A
RATED POWER  Peak (10Sec.)   88.4W 93.5W 99W 99.2W
Convection 80.4W 85.05W 90W 90.2W
RIPPLE & NOISE (max.) 120mVp-p 150mVp-p 200mVp-p 240mVp-p
VOLTAGE TOL ERANCE  ±2.0% ±2.0% ±2.0% ±2.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±1% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 30ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 305VAC 113 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 92.00% 92.50% 93.00% 93.00%
AC CURRENT (Typ.) 1.9A/115VAC 1.1A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 65A/230VAC
LEAKAGE CURRENT < 0.25mA/240VAC
PROTECTION OVERL OAD 115% ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 12.6-16.2V 15.8-20.3V 25.2-32.4V 50.4-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +80(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP -40 ~ +85
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE ; EN62368-1;altitude up to 2000 meters
SAFETY & EMC SAFETY STANDARDS  IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3 ------
EMC IMMUNITY BS EN/EN55035, BS EN/EN61000-6-2
Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
RF field susceptibility BS EN/EN61000-4-3 Level 4,2KV/L-N, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A
Surge susceptibility BS EN/EN61000-4-5 Level 3, criteria A
Conducted susceptibility BS EN/EN61000-4-6 Level 3, criteria A
Magnetic field immunity BS EN/EN61000-4-8 Level 4, criteria A
Voltage dip, interruption BS EN/EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
OTHERS MTBF 310Khrs min. MIL-HDBK-217F (25); 1694.28Khrs min. Telcordia TR/SR-332 (Bellcore) (25)
DIMENSION PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H)
PACKING PCB mounting style : 0.197Kg;60pcs/11.8Kg/0.94CUFT Screw terminal style :0.219Kg;50pcs/12Kg/0.56CUFT

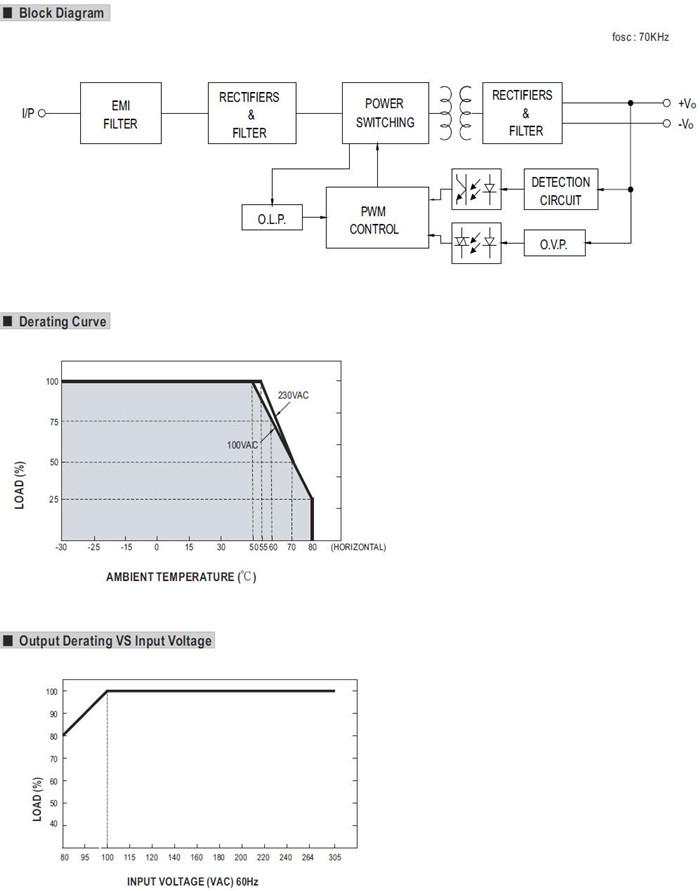

Meanwell IRM-90 Series Features

l  3.43''x2.05"compact size

l  PCB, chassis or screw terminal mounting version

l  Universal input 80~ 305VAC

l  No load power consumption < 0.21W

l  EMI BS EN/EN55032 Class B without additional components

l  Wide operating temp. rage -30~80℃

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  Isolation ClassⅡ

l  Over voltage category Ⅲ

l  Operating attitude up to 4000 meters

l  100W peak (10 sec.)

l  3 years warranty
