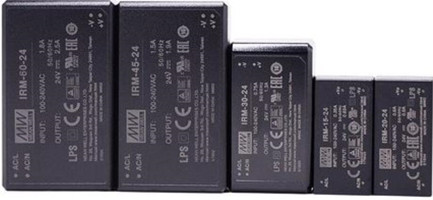

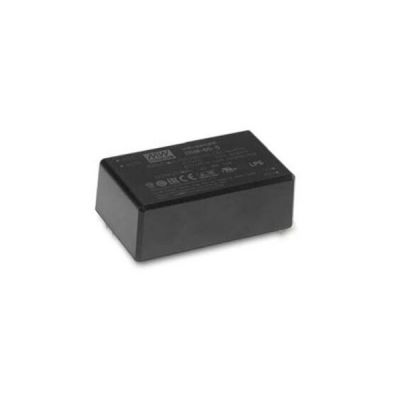

Meanwell IRM-60 Series is a 60W miniature (87*52*29 .5mm) AC-DC module-type power supply. They are ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. They allow the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone combined enhance the heat dissipation. PCB mounting style model (Blank) meet the anti-vibration demand up to 2G, and screw terminal style model (ST) meet the anti-vibration demand up to 5G. Furthermore, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 91% and the extremely low no-load power consumption below 0.1 5W, IRM-60 series fulfills the worldwide regulation for the low power consumption requirement for electronics. Since the series is a Class II design (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme EMC features keep the end electronic devices from electromagnetic interference. In addition to the PCB mounting style model, IRM-60 series also offers the screw terminal style model (ST). Due to the high reliability, low cost and longevity, Meanwell IRM-60 Series is ideally suitable for various Industrial electrical applications.
Meanwell IRM-60 Series Encoding
| IRM | Series Name |
| 60 | Rated Wattage |
| 5 | Output Voltage |
| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell IRM-60 Series Model Specifications

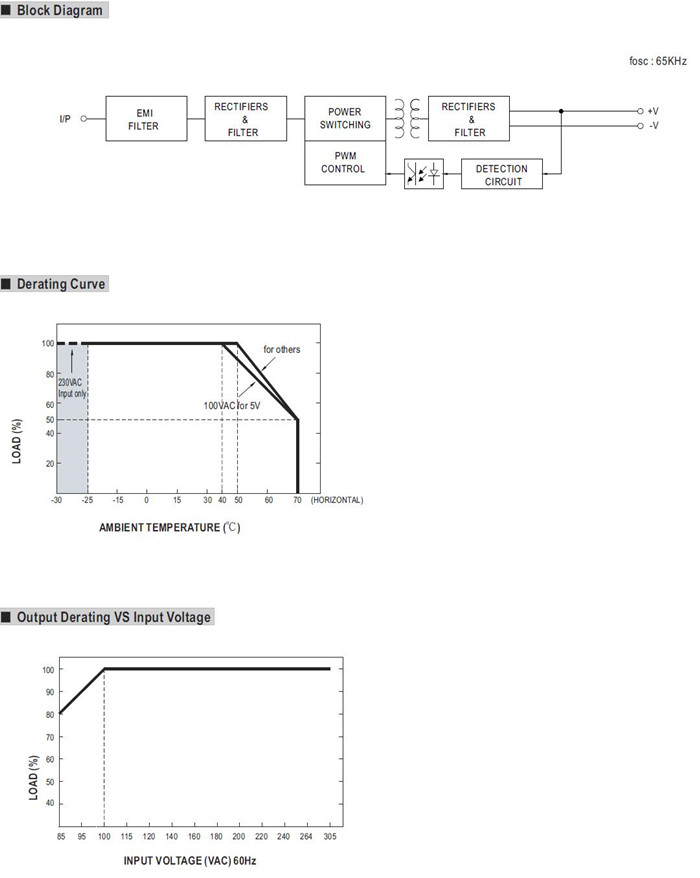

| Model | IRM-60-5 | IRM-60-12 | IRM-60-15 | IRM-60-24 | IRM-60-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 10A | 5A | 4A | 2.5A | 1.25A | |
| CURRENT RANGE | 0-10A | 0-5A | 0-4A | 0-2.5A | 0-1.25A | |
| RATED POWER | 50W | 60W | 60W | 60W | 60W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC | ||||
| FREQUENCY RANGE | 47 ~ 440Hz | |||||
| EFFICIENCY (Typ.) | 84.00% | 87.50% | 89.00% | 90.00% | 91.00% | |
| AC CURRENT (Typ.) | 1.8A/115VAC 1.0A/230VAC 0.9A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | |||||
| LEAKAGE CURRENT | < 0.25mA/277VAC | |||||
| PROTECTION | OVERL OAD | 115%~160% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.25-6.75V | 12.6-16.2V | 15.75-20.25V | 25.2-32.4V | 50.4-64.8V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||||
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |||||
| OVER VOLTAGE GATEGORY | Ⅲ; According to EN62368-1;altitude up to 2000 meters | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC TP TC 004, BSMI CNS14336-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55032(CISPR32), CNS13438 | Class B | ||||
| Radiated | BS EN/EN55032(CISPR32), CNS13438 | Class B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | ||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, criteria A | ||||
| Surge | BS EN/EN61000-4-5 | Level 4,2KV/L-N, criteria A | ||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| OTHERS | MTBF | 1226Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | |||||
| PACKING | PCB mounting style : 0.195Kg;60pcs/12.7Kg/0.94CUFT Screw terminal style :0.228Kg;50pcs/12.4Kg/0.56CUFT | |||||
Meanwell IRM-60 Series Features
l 3.43"x2.05"'compact size
l PCB, chassis or screw terminal mounting version·
l Universal input 85~305VAC
l No load power consumption <0.1 5W
l EMI Class B without additional components
l Wide operating temp. range -30~70℃
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l Isolation Class Ⅱ
l Over voltage category Ⅲ
l Pass LPS (Except for 5V)
l 3 years warranty
Meanwell IRM-60 Series Applications
l Mechanical equipment
l Hand-held electronic device
l Factory automation equipment
l Industrial electrical equipment

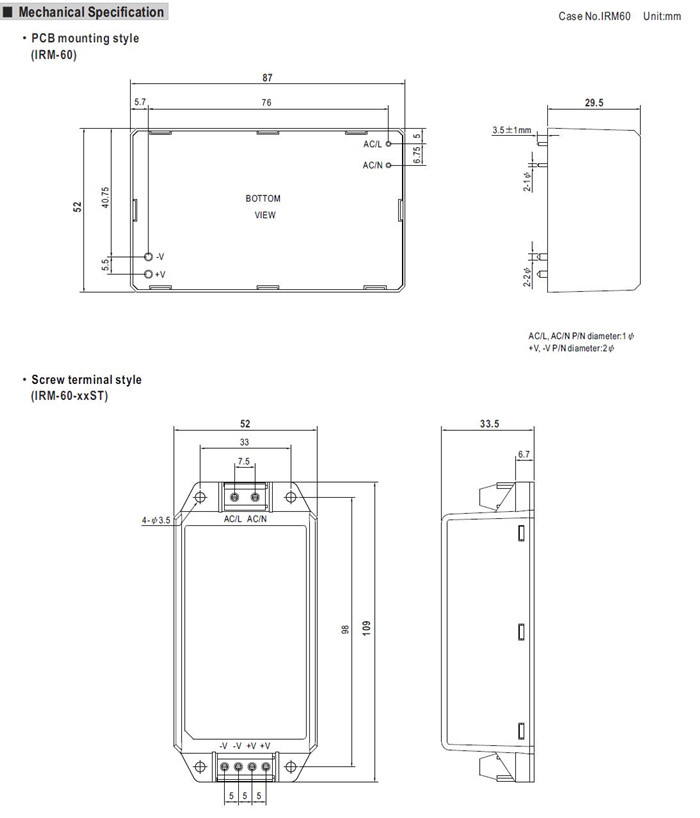

Meanwell IRM-60 Series Mechanical Diagram
