IRM-45
16.15
Details

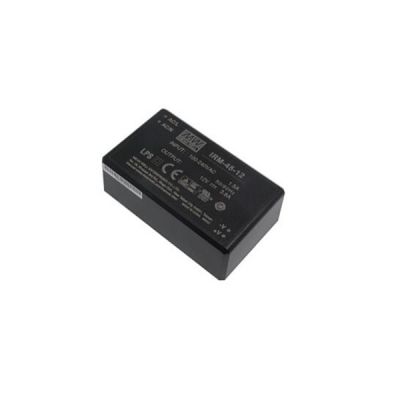

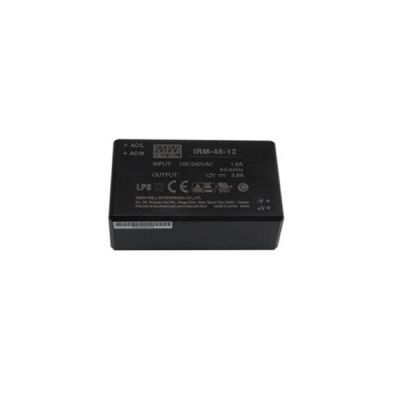

Meanwell IRM-45 Series is a 45W miniature (87*52* 29.5mm) AC-DC module-type power supply. They are ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. IRM-45 allows the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation. PCB mounting style model (Blank) meet the anti-vibration demand up to 2G, and screw terminal style model (ST) meet the anti-vibration demand up to 5G. Moreover, IRM-45 Series provides the fundamental resistance to dust and moisture. With the high efficiency up to 90.5% and the extremely low no-load power consumption below 0.15W, the product fulfills the worldwide regulation for the low power consumption requirement for electronics. Since it is a Class II design (no FG pin), incorporating the built-in EMI filtering components, the series enables the compliance with BS EN/EN55032 Class B. The supreme EMC features keep the end electronic units from electromagnetic interference. In addition to the PCB mounting style model, IRM-45 series also offers the screw terminal style model (ST).Due to the high reliability, low cost and longevity, Meanwell IRM-45 Series is perfect for various Industrial electrical applications.
Meanwell IRM-45 Series Encoding
| IRM | Series Name |
| 45 | Rated Wattage |
| 5 | Output Voltage |

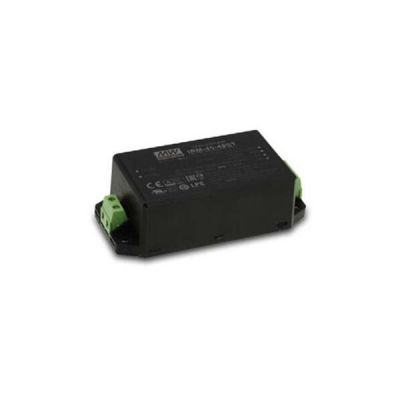

| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell IRM-45 Series Model Specifications
| Model | IRM-45-5 | IRM-45-12 | IRM-45-15 | IRM-45-24 | IRM-45-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 8A | 3.8A | 3A | 1.9A | 0.94A | |
| CURRENT RANGE | 0-8A | 0-3.8A | 0-3A | 0-1.9A | 0-0.94A | |
| RATED POWER | 40W | 45.6W | 45W | 45.6W | 45.12W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 150mVp-p | 180mVp-p | 200mVp-p | 300mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC | ||||
| FREQUENCY RANGE | 47 ~ 440Hz | |||||
| EFFICIENCY (Typ.) | 83.50% | 87.50% | 88.50% | 89.50% | 90.50% | |
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC 0.75A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | |||||
| LEAKAGE CURRENT | < 0.25mA/277VAC | |||||
| PROTECTION | OVERL OAD | 115%~160% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.25-6.75V | 12.6-16.2V | 15.75-20.25V | 25.2-32.4V | 50.4-64V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||

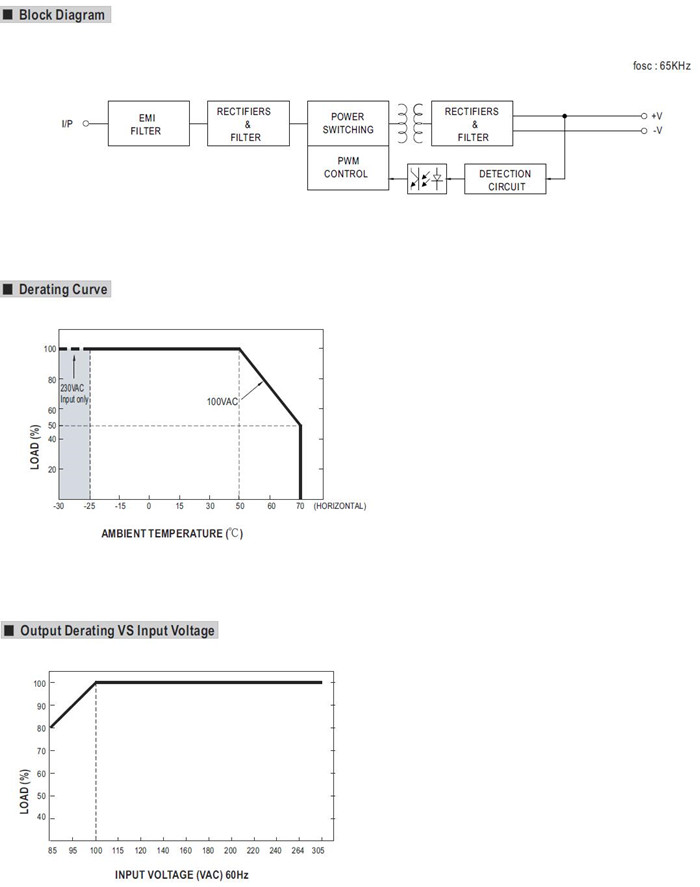

| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||||
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |||||
| OVER VOLTAGE GATEGORY | Ⅲ; According to EN62368-1;altitude up to 2000 meters | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC TP TC 004, BSMI CNS14336-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55032(CISPR32), CNS13438 | Class B | ||||
| Radiated | BS EN/EN55032(CISPR32), CNS13438 | Class B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | ||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, criteria A | ||||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/L-N, criteria A | ||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteria A | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| OTHERS | MTBF | 1212Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | |||||
| PACKING | PCB mounting style : 0.195Kg;60pcs/12.7Kg/0.94CUFT Screw terminal style :0.228Kg; 50pcs/12.4Kg/0.56CUFT | |||||
Meanwell IRM-45 Series Features
l 3.43''x2.05''compact size
l PCB, chassis or screw terminal mounting version
l Universal input 85~305VAC
l No load power consumption<0.15W
l EMI Class B without additional components
l Wide operating temp. range -30~70℃
l Protections: Short circuit/ Overload / Over voltage
l Cooling by free air convection
l Isolation Class Ⅱ
l Over voltage category Ⅲ
l Pass LPS (Except for 5V)
l 3 years warranty
Meanwell IRM-45 Series Applications
l Mechanical equipment
l Hand-held electronic device
l Industrial electrical equipment
l Factory automation equipment

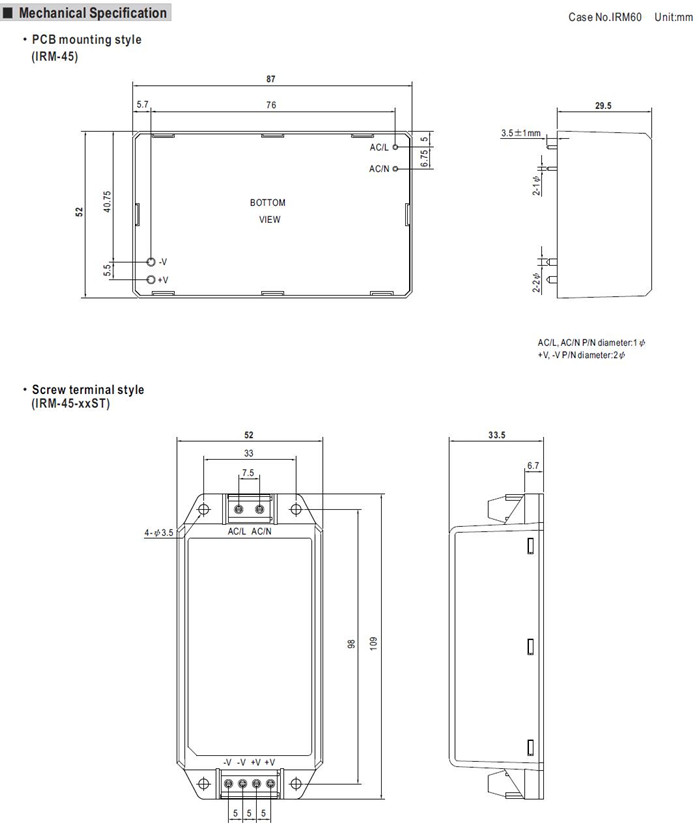

Meanwell IRM-45 Series Mechanical Diagram
