IRM-45-48
17.91
Details

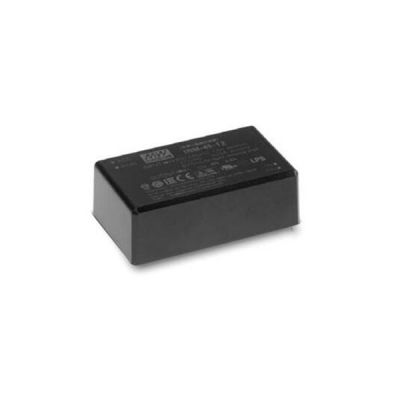

Meanwell IRM-45-48 is a 45W miniature (87*52* 29.5mm) AC-DC module-type power supply with 48V0.94A0-0.94A45.12W300mVp-p. this model is ready to be soldered onto the PCB boards of various types of electronic instruments and industrial automation devices. In addition, it allows the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation. PCB mounting style model (Blank) meet the anti-vibration demand up to 2G, and screw terminal style model (ST) meet the anti-vibration demand up to 5G. What’s more, IRM-45-48 provides the fundamental resistance to dust and moisture. With the high efficiency reaching up to 90.5% and the extremely low no-load power consumption below 0.15W, the unit conforms the worldwide regulation for the low power consumption requirement for electronics. Since it is designed Class Ⅱ (no FG pin), incorporating the built-in EMI filtering components, IRM-45-48 enables the compliance with BS EN/EN55032 Class B. The supreme EMC features keep the end electronic devices from electromagnetic interference. Except for the PCB mounting style model, IRM-45-48 provides the screw terminal style model (ST). In light of the high reliability, low cost and longevity, Meanwell IRM-45-48 is ideally suitable for various Industrial electrical applications.
Meanwell IRM-45-48 Encoding
| IRM | Series Name |
| 45 | Rated Wattage |
| 48 | Output Voltage |

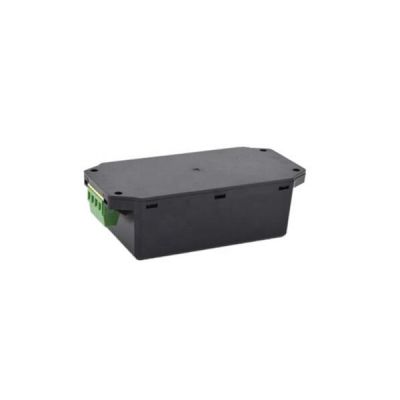

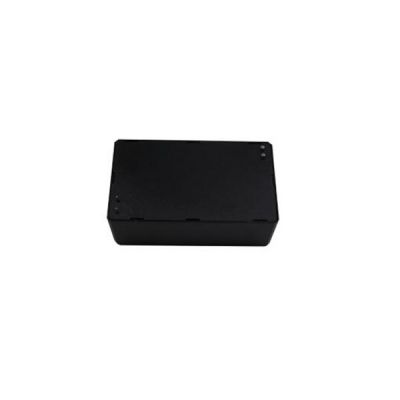

| ST | Blank: PCB mounting Style |

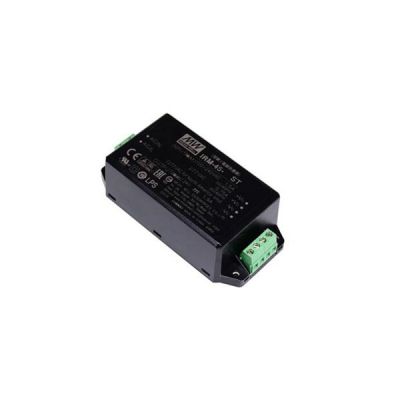

| ST: Screw Terminal Style |
Meanwell IRM-45-48 Model Specifications
| Model | IRM-45-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 0.94A | |
| CURRENT RANGE | 0-0.94A | |
| RATED POWER | 45.12W | |
| RIPPLE & NOISE (max.) | 300mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 90.50% | |
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC 0.75A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 115%~160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 50.4-64V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OVER VOLTAGE GATEGORY | Ⅲ; According to EN62368-1;altitude up to 2000 meters | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 1212Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | |
| PACKING | PCB mounting style : 0.195Kg;60pcs/12.7Kg/0.94CUFT Screw terminal style :0.228Kg; 50pcs/12.4Kg/0.56CUFT | |
Meanwell IRM-45-48 Features
l Isolation Class Ⅱ
l 3 years warranty
l Over voltage category Ⅲ
l Pass LPS (Except for 5V)
l 3.43''x2.05''compact size
l Universal input 85~305VAC
l Cooling by free air convection
l No load power consumption<0.15W
l Wide operating temp. range -30~70℃
l EMI Class B without additional components
l PCB, chassis or screw terminal mounting version
l Protections: Short circuit/ Overload / Over voltage
Meanwell IRM-45-48 Applications
l Mechanical equipment
l Hand-held electronic device
l Industrial electrical equipment
l Factory automation equipment
Meanwell IRM-45-48 Mechanical Diagram
