IRM-45-12
16.58
Details

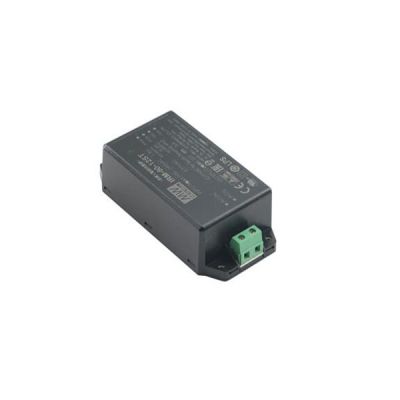

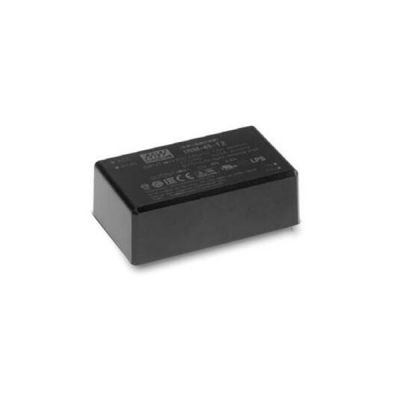

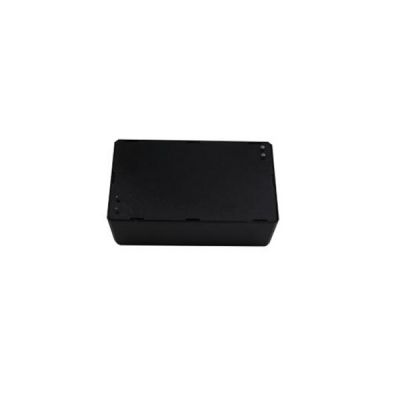

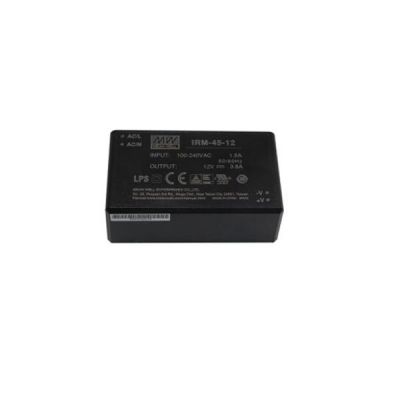

Meanwell IRM-45-12 is a 45W miniature (87*52* 29.5mm) AC-DC module-type power supply with 12V3.8A0-3.8A45.6W150mVp-p. This unit is ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. Meanwhile, it accepts the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone boost the heat dissipation. PCB mounting style model (Blank) meet the anti-vibration demand up to 2G, and screw terminal style model (ST) meet the anti-vibration demand up to 5G. In addition, IRM-45-12 gives the fundamental resistance to dust and moisture. With the high efficiency up to 90.5% and the extremely low no-load power consumption below 0.15W, the product fulfills the worldwide regulation for the low power consumption requirement for electronics. As it is designed Class Ⅱ (no FG pin), incorporating the built-in EMI filtering components, IRM-45-12 enables the compliance with BS EN/EN55032 Class B. The supreme EMC features protect the end electronic units from electromagnetic interference. Except for the PCB mounting style model, IRM-45-12 provides the screw terminal style model (ST). Thanks to the high reliability, low cost and longevity, Meanwell IRM-45-12 is perfect for various Industrial electrical applications.
Meanwell IRM-45-12 Encoding
| IRM | Series Name |
| 45 | Rated Wattage |
| 12 | Output Voltage |
| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell IRM-45-12 Specifications
| Model | IRM-45-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 3.8A | |
| CURRENT RANGE | 0-3.8A | |
| RATED POWER | 45.6W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 87.50% | |
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC 0.75A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 115%~160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 12.6-16.2V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OVER VOLTAGE GATEGORY | Ⅲ; According to EN62368-1;altitude up to 2000 meters | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 1212Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | |
| PACKING | PCB mounting style : 0.195Kg;60pcs/12.7Kg/0.94CUFT Screw terminal style :0.228Kg; 50pcs/12.4Kg/0.56CUFT | |
Meanwell IRM-45-12 Features
l Isolation Class Ⅱ
l Over voltage category Ⅲ
l Pass LPS (Except for 5V)
l 3 years warranty
l 3.43''x2.05''compact size
l Universal input 85~305VAC
l No load power consumption<0.15W
l EMI Class B without additional components
l Wide operating temp. range -30~70℃
l Cooling by free air convection
l PCB, chassis or screw terminal mounting version
l Protections: Short circuit/ Overload / Over voltage
Meanwell IRM-45-12 Applications
l Hand-held electronic device
l Industrial electrical equipment
l Mechanical equipment
l Factory automation equipment
Meanwell IRM-45-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
