IRM-20-12
8.59
Details

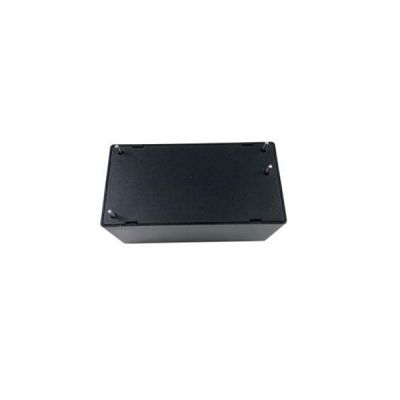

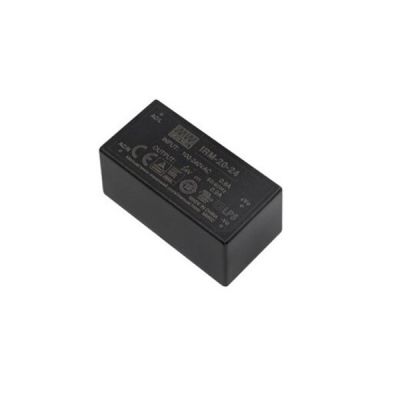

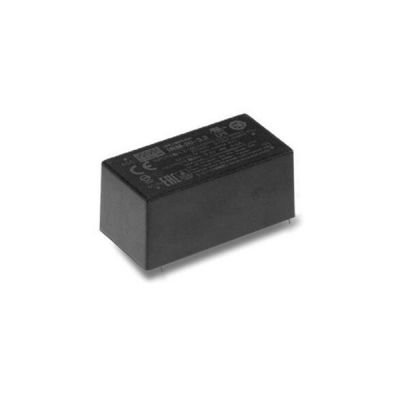

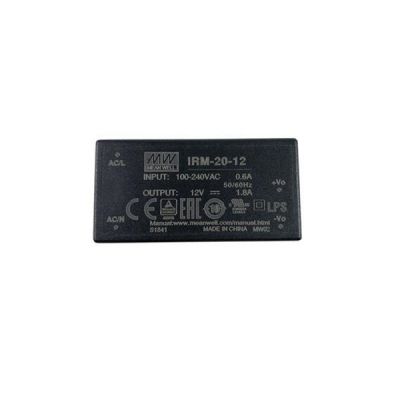

Meanwell IRM-20-12 is a 20W miniature (52. 4*27.2* 24mm) AC-DC module-type power supply with 12V1.8A0-1.8A21.6W200mVp-p. The unit is ready to be soldered onto the PCB boards of various kinds of electronic instrument or industrial automation equipment. At the same time, it accepts the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone combined enhance the heat dissipation and meet the anti-vibration demand up to 2G. Apart from them, IRM-20-12 provides the fundamental resistance to dust and moisture. With the high efficiency reaching up to 85% and the extremely low no-load power consumption below 0.1W, Meanwell IRM-20-12 fulfills the worldwide regulation for the low power consumption requirement for electronics. Since the product is designed Class II (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme EMC features protect the end electronic units from electromagnetic interference. In view of the high reliability, low cost and longevity, Meanwell IRM-20-12 is suitable for various Industrial electrical applications.
Meanwell IRM-20-12 Encoding
| IRM | Series Name |
| 20 | RatedWattage |
| 12 | Output Voltage |
Meanwell IRM-20-12 Specifications
| Model | IRM-20-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 1.8A | |
| CURRENT RANGE | 0-1.8A | |
| RATED POWER | 21.6W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 8ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120 ~ 430VDC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 84% | |
| AC CURRENT (Typ.) | 0.6A/115VAC 0.4A/230VAC 0.3A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 115%~160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8-16.2V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 970.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 52.4*27.2*24mm (L*W*H) | |
| PACKING | 0.05Kg/240pcs/13Kg/0.94CUFT | |
Meanwell IRM-20-12 Features
l 2.06"x1.07"compact size
l Universal input 85~305VAC
l No load power consumption<0.1 W
l EMI Class B without additional components
l Wide operating temp. range -30~70℃
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l Isolation Class I
l Pass LPS
l 3 years warranty
Meanwell IRM-20-12 Applications
l Industrial electrical equipment
l Mechanical equipment
l Factory automation equipment
l Hand-held electronic device
Meanwell IRM-20-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
