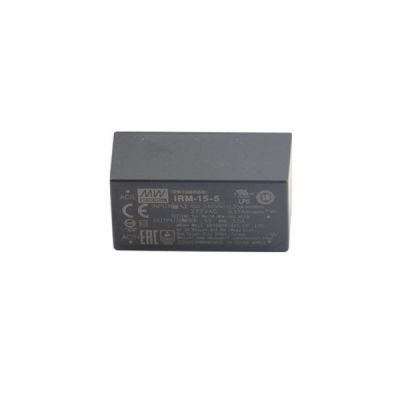

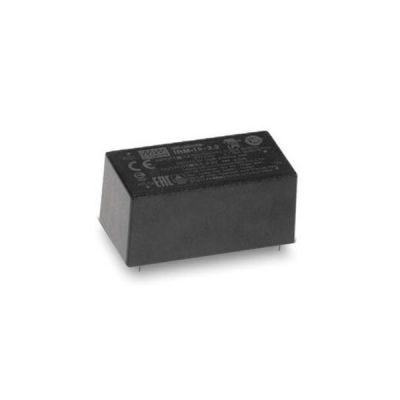

Meanwell IRM-15-5 is a 15W miniature (52.4*27.2*24mm) AC-DC module-type power supply with 5V3A0-3A15W200mVp-p±. the item is ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. And it also allows the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone combined improve the heat dissipation and meet the anti-vibration demand up to 5G. In addition, IRM-15-5 gives the fundamental resistance to dust and moisture. With the high efficiency up to 83% and the extremely low no-load power consumption below 0.1W, IRM-15-5 fulfills the worldwide regulation for the low power consumption requirement for electronics. Since Meanwell IRM-15-5 is designed Class II (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme E MC features keep the end electronic units from electromagnetic interference. In light of the high reliability, low cost and longevity, Meanwell IRM-15-5 is suitable for various Industrial electrical applications.
Meanwell IRM-15-5 Encoding
| IRM | Series Name |
| 15 | RatedWattage |
| 5 | Output Voltage |
Meanwell IRM-15-5 Specifications
| Model | IRM-15-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 3A | |
| CURRENT RANGE | 0-3A | |
| RATED POWER | 15W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1% | |
| SETUP, RISE TIME | 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120 ~ 430VDC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 78% | |
| AC CURRENT (Typ.) | 0.35A/115VAC 0.2A/230VAC 0.17A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 115%~190% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.75-6.75V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 970.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 52.4*27.2*24mm (L*W*H) | |
| PACKING | 0.05Kg/240pcs/13Kg/0.94CUFT | |
Meanwell IRM-15-5 Features
l Pass LPS
l 3 years warranty
l Isolation Class Ⅱ
l 2.06''x1.07"compact size
l Universal input 85 ~305VAC
l Cooling by free air convection
l No load power consumption<0.1 W
l EMI Class B without additional components
l Wide operating temp. range -30~70℃
l Protections: Short circuit/Overload/Over voltage
Meanwell IRM-15-5 Applications
l Mechanical equipment
l Hand-held electronic device
l Industrial electrical equipment
l Factory automation equipment
Meanwell IRM-15-5 Mechanical Diagram
