IRM-10
6.45
Details

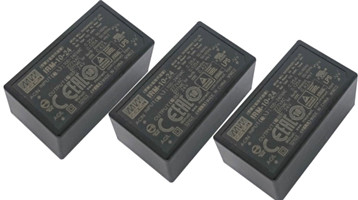

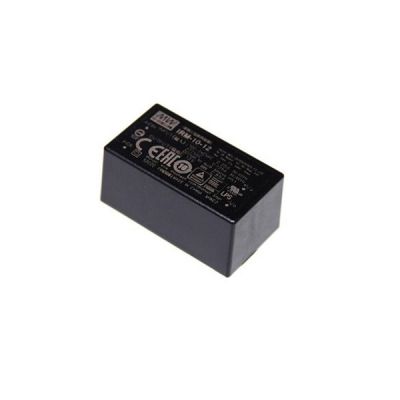

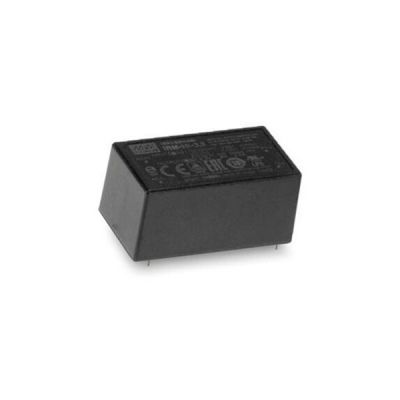

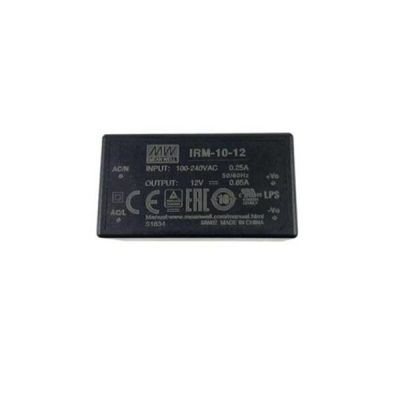

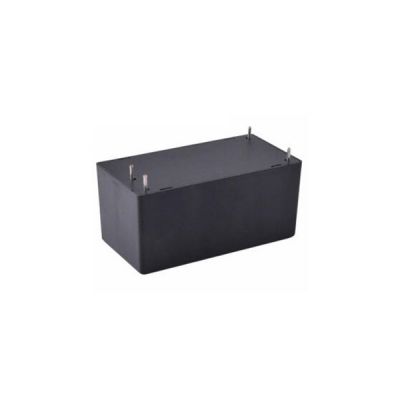

Meanwell IRM-10 Series is a 10W miniature (45.7*25.4*21.5mm) AC-DC module-type power supply. They are ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. The entire series allows the universal input voltage range of 85~305V AC. The 94V-O flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G. Moreover, IRM-10 provides the fundamental resistance to dust and moisture. With the high efficiency up to 82% and the extremely low no-load power consumption below 0. 1W, IRM-10series fulfills the worldwide regulation for the low power consumption requirement for electronics. Since the entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme EMC features keep the end electronic units from electromagnetic interference. Due to the high reliability, low cost and longevity, Meanwell IRM-10 Series functions as a very suitable solution for various Industrial electrical applications.
Meanwell IRM-10 Series Encoding
| IRM | Series Name |
| 10 | Rated Wattage |
| 5 | Output Voltage |
Meanwell IRM-10 Series Model Specifications
| Model | IRM-10-3.3 | IRM-10-5 | IRM-10-12 | IRM-10-15 | IRM-10-24 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V |
| RATED CURRENT | 2.5A | 2A | 0.85A | 0.67A | 0.42A | |
| CURRENT RANGE | 0-2.5A | 0-2A | 0-0.85A | 0-0.67A | 0-0.42A | |
| RATED POWER | 8.25A | 10W | 10.2W | 10.05W | 10.08W | |
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 8ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120 ~ 430VDC | ||||
| FREQUENCY RANGE | 47 ~ 440Hz | |||||
| EFFICIENCY (Typ.) | 74% | 77% | 82% | 82% | 82% | |
| AC CURRENT (Typ.) | 0.25A/115VAC 0.15A/230VAC 0.125A/277VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |||||
| LEAKAGE CURRENT | < 0.25mA/277VAC | |||||
| PROTECTION | OVERL OAD | 115%~190% rated output powe | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 3.8-4.95V | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |||||
| OPERATING ALTITUDE | 2000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55032(CISPR32), CNS13438 | Class B | ||||
| Radiated | BS EN/EN55032(CISPR32), CNS13438 | Class B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | ||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | ||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, criteria A | ||||
| Surge | BS EN/EN61000-4-6 | Level 3,1KV/L-N, criteria A | ||||
| Conducted | BS EN/EN61000-4-5 | Level 3, criteria A | ||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | ||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
||||
| OTHERS | MTBF | 1495.8Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 45.7*25.4*21.5 mm (L*W*H) | |||||
| PACKING | 0.033Kg;270pcs/ 9.8Kg/0.94CUFT | |||||
Meanwell IRM-10 Series Features
l 1.8"x1"compact size
l Universal input 85~305 VAC
l No load power consumption<0.1 W
l EMI Class B without additional components
l Wide operating temp. range -30~70℃
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l Isolation Class Ⅱ
l Pass LPS
l 3 years warranty
Meanwell IRM-10 Series Applications
l Industrial electrical equipment
l Mechanical equipment
l Factory automation equipment
l Hand-held electronic device
Meanwell IRM-10 Series Mechanical Diagram
