IRM-10-12
7.27
Details

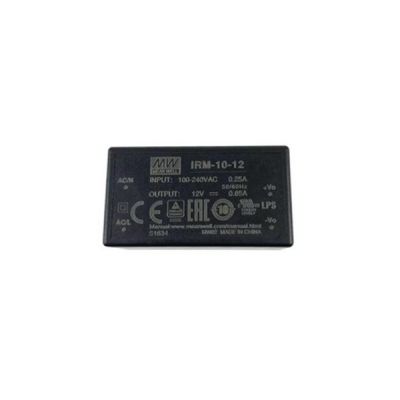

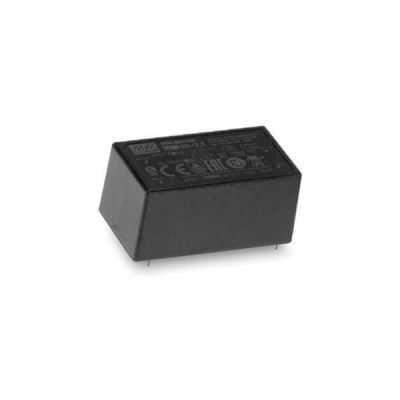

Meanwell IRM-10-12 is a 10W miniature (45.7*25.4*21.5mm) AC-DC module-type power supply with 12V0.85A0-0.85A10.2W200mVp-p. It is ready to be soldered onto the PCB boards of various kinds of electronic instrument or industrial automation equipment. Additionally the product also accepts the universal input voltage range of 85~305V AC. The 94V-0 flame retardant plastic case and the fully-potted silicone improve the heat dissipation and meet the anti-vibration demand up to 5G. Moreover, IRM-10-12 gives the fundamental resistance to dust and moisture. With the high efficiency up to 82% and the extremely low no-load power consumption below 0. 1W, IRM-10-12 satisfies the worldwide regulation for the low power consumption requirement for electronics. As IRM-10-12 is designed Class II (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme EMC features protects the end electronic units from electromagnetic interference. In view of the high reliability, low cost and longevity, Meanwell IRM-10-12 is fit for various Industrial electrical applications.
Meanwell IRM-10-12 Encoding
| IRM | Series Name |
| 10 | Rated Wattage |
| 12 | Output Voltage |
Meanwell IRM-10-12 Specifications
| Model | IRM-10-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 0.85A | |
| CURRENT RANGE | 0-0.85A | |
| RATED POWER | 10.2W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |
| HOLD UP TIME (Typ.) | 30ms/230VAC 8ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120 ~ 430VDC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 82% | |
| AC CURRENT (Typ.) | 0.25A/115VAC 0.15A/230VAC 0.125A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 115%~190% rated output powe |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8-16.2V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 1495.8Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 45.7*25.4*21.5 mm (L*W*H) | |
| PACKING | 0.033Kg;270pcs/ 9.8Kg/0.94CUFT | |
Meanwell IRM-10-12 Features
l Pass LPS
l Isolation Class Ⅱ
l 3 years warranty
l 1.8"x1"compact size
l Cooling by free air convection
l Universal input 85~305 VAC
l No load power consumption<0.1 W
l EMI Class B without additional components
l Wide operating temp. range -30~70℃
l Protections: Short circuit/Overload/Over voltage
Meanwell IRM-10-12 Applications
l Industrial electrical equipment
l Mechanical equipment
l Factory automation equipment
l Hand-held electronic device
Meanwell IRM-10-12 Mechanical Diagram
