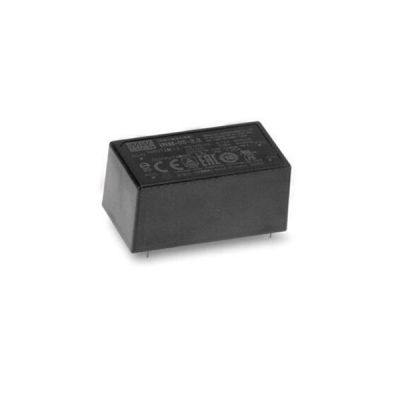

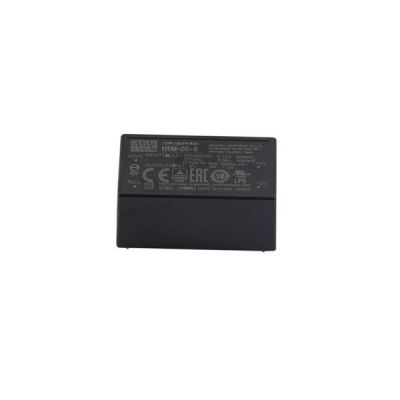

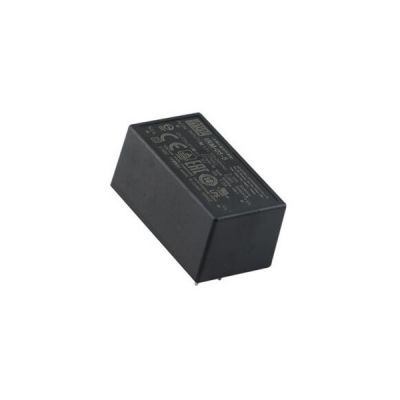

Meanwell IRM-05-5 is a 5W miniature (45.7*25 .4*21.5mm) AC-DC module-type power supply with 5V1A0-1A5W200mVp-p. The unit is ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. It permits the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G. Additionally, IRM-05-5 has the fundamental resistance to dust and moisture. With the high efficiency up to 77% and the extremely low no-load power consumption below 0.1W, Meanwell IRM-05-5 fulfills the worldwide regulation for the low power consumption requirement for electronics. As IRM-05-5 is a Class II design (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme E MC features keep the end electronic units from electromagnetic interference. In light of the high reliability, low cost and longevity, Meanwell IRM-05-5 is an ideal solution for various Industrial electrical applications.
Meanwell IRM-05-5 Encoding
| IRM | Series Name |
| 5 | Rated Wattage |
| 5 | Output Voltage |
Meanwell IRM-05-5 Specifications
| Model | IRM-05-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1A | |
| RATED POWER | 5W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |
| HOLD UP TIME (Typ.) | 80ms/230VAC 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120 ~ 430VDC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 71% | |
| AC CURRENT (Typ.) | 0.12A/115VAC 0.08A/230VAC 0.06A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 115% ~ 260% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.75-6.75V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 1495.8Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 45.7*25.4*21.5 mm (L*W*H) | |
| PACKING | 0.033Kg;270pcs/ 9.8Kg/0.94CUFT | |
Meanwell IRM-05-5 Features
l Pass LPS
l 3 years warranty
l 1.8''x1"compact size
l Isolation Class Ⅱ
l Universal input 85~305VAC
l No load power consumption<0.1 W
l EMI Class B without additional components
l Wide operating temp. range -30℃~70℃
l Cooling by free air convection
l Protections: Short circuit/Overload/Over voltage
Meanwell IRM-05-5 Applications
l Mechanical equipment
l Hand-held electronic device
l Industrial electrical equipment
l Factory automation equipment
Meanwell IRM-05-5 Mechanical Diagram
