IRM-05-3.3
6.67
Details

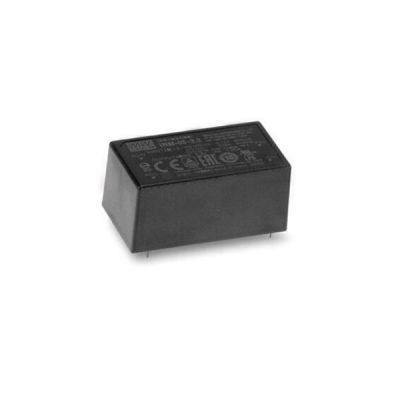

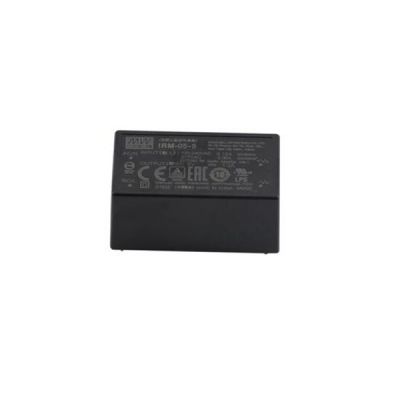

Meanwell IRM-05-3.3 is a 5W miniature (45.7*25 .4*21.5mm) AC-DC module-type power supply with 3.3V1.25A0-1.25A4.125W200mVp-p. This item is ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. And it allows the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone improve the heat dissipation and fit the anti-vibration demand up to 5G. in addition, IRM-05-3.3 offers the fundamental resistance to dust and moisture. With the high efficiency reaching up to 77% and the extremely low no-load power consumption below 0.1W, Meanwell IRM-05-3.3 fulfills the worldwide regulation for the low power consumption requirement for electronics. As IRM-05-3.3 is a Class II design (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme E MC features keep the end electronic units from electromagnetic interference. Thanks to the high reliability, low cost and longevity, Meanwell IRM-05-3.3 is an ideal solution for various Industrial electrical applications.
Meanwell IRM-05-3.3 Encoding
| IRM | Series Name |
| 5 | Rated Wattage |
| 3.3 | Output Voltage |
Meanwell IRM-05-3.3 Specifications
| Model | IRM-05-3.3 | |
| OUTPUT | DC VOLTAGE | 3.3V |
| RATED CURRENT | 1.25A | |
| CURRENT RANGE | 0-1.25A | |
| RATED POWER | 4.125W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |
| HOLD UP TIME (Typ.) | 80ms/230VAC 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120 ~ 430VDC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 68% | |
| AC CURRENT (Typ.) | 0.12A/115VAC 0.08A/230VAC 0.06A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 40A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 115% ~ 260% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 3.8-4.95V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OPERATING ALTITUDE | 2000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | |
| OTHERS | MTBF | 1495.8Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 45.7*25.4*21.5 mm (L*W*H) | |
| PACKING | 0.033Kg;270pcs/ 9.8Kg/0.94CUFT | |
Meanwell IRM-05-3.3 Features
l 1.8''x1"compact size
l Isolation Class Ⅱ
l Pass LPS
l 3 years warranty
l Universal input 85~305VAC
l No load power consumption<0.1 W
l EMI Class B without additional components
l Wide operating temp. range -30℃~70℃
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
Meanwell IRM-05-3.3 Applications
l Mechanical equipment
l Factory automation equipment
l Hand-held electronic device
l Industrial electrical equipment
Meanwell IRM-05-3.3 Mechanical Diagram
