IRM-03-3.3
7.02
Details

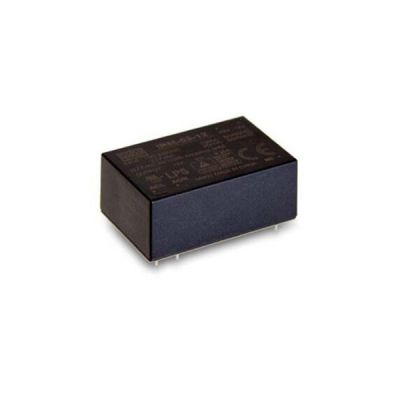

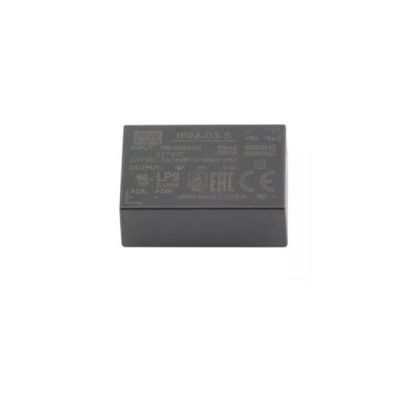

Meanwell IRM-03-3.3 is a 3W miniature (37*24*15mm) AC-DC module-type power supply with 3.3V900mA0-900mA3W100mVp-p. The item is ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. Apart from them, it allows universal input voltage range of 85~ 305VAC. The phenolic case and the fully-potted silicone improve the heat dissipation and meet the anti-vibration demand up to 5G. In addition, IRM-03-3.3 provides the fundamental resistance to dust and moisture. With the high efficiency reaching up to 80% and the extremely low no-load power consumption below 0.075W, IRM-03-3.3 fulfills the worldwide regulation for the low power consumption requirement for electronics. Since the product is a Class Ⅱdesign (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme EMC features keep the end electronic units from electromagnetic interference. Except for the module-type model, IRM-03-3.3 also offers the SMD style model. Due to the high reliability, low cost and longevity, Meanwell IRM-03-3.3 is very suitable for various Industrial electrical applications.
Meanwell IRM-03-3.3 Encoding
| IRM | Series Name |
| 03 | Output Wattage |
| 3.3 | Output Voltage |
| S | Blank: PCB mounting Style |
| S: SMD Style |
Meanwell IRM-03-3.3 Specifications
| Model | IRM-03-3.3 | |
| OUTPUT | DC VOLTAGE | 3.3V |
| RATED CURRENT | 900mA | |
| CURRENT RANGE | 0-900mA | |
| RATED POWER | 3W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 8ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120~430VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 68% | |
| AC CURRENT (Typ.) | 70mA/115VAC 40mA/230VAC 35mA/277VAC | |
| INRUSH CURRENT(Typ.) | 10A/115VAC 20A/230VAC | |
| LEAKAGE CURRENT | < 0.25mA/277VAC | |
| PROTECTION | OVERL OAD | 105%~260% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 3.8-4.9V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +100℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| LEAD TEMPERATURE | 260℃,10s (max.) | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1, TUV EN62368, TUV EN60335-1, EAC TP TC 004 BSMI CNS14336-1 approved,BS EN/ BS EN/ design refer to BS EN/EN61558-2-16 , IEC60601-1 (By request) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level (surge L-N : 1KV), criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 2137.6Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | PCB mounting style : 37*24*15mm (L*W*H) SMD style : 37*24*16mm (L*W*H) | |
| PACKING | PCB mounting style : 0.026Kg;560pcs/15.3Kg/0.77CUFT SMD style :0.026Kg;560pcs/15.3Kg/0.77CUFT | |
Meanwell IRM-03-3.3 Features
l Universal AC input/ Full range
l No load power consumption<0.075W
l Compact size
l Cooling by free air convection
l Isolation Class Ⅱ
l High reliability, low cost
l 3 years warranty
l Comply with BS EN/EN55032 Class B without any additional components
l Protections: Short circuit/Overload/Over voltage
Meanwell IRM-03-3.3 Applications
l Industrial electrical equipment
l Mechanical equipment
l Factory automation equipment
l Handheld electronic device
Meanwell IRM-03-3.3 Mechanical Diagram
