HVGC-650-U
158.29
Details

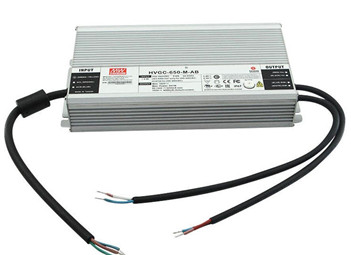

Meanwell HVGC-650-U is 650W AC/DC LED driver with 11200mA649.6W24-58V11200-14000mA70V5600-14000mA±5%180~528VAC254VDC~747VDC47~63Hz. It provides constant power mode and wide output voltage range. At the same time, the unit operates from 180~528VAC with rated current 11200mA. The model has four types: AB D2 Dx DA IP67 respectively. With the efficiency reaching high up to 95.5% based on fanless design, HVGC-650-U is able to operate for -40℃~+85℃ case temperature under free air convection. Apart from them, the metal housing design and IP67 ingress protection level allow it to satisfy both indoor and outdoor applications such as horticulture lighting and stadium light. What’s more, the product is supplied with various function options such as dimming methodologies. In light of its longevity, high reliability and excellent quality, Meanwell HVGC-650-U is an ideally suitable solution for the optimal design flexibility for LED lighting system
Meanwell HVGC-650-U Encoding
| HVGC | Series Name |
| 650 | Rated Wattage |
| A | A: A: Auxiliary DC output (12V at 200mA) (by request) |
| □: None | |
| U | Rated output current (2800/4200/5600/11200mA) |
| AB | Function options |
| Type | IP Level | Function | Note |
| AB | IP67 | Standard constant power output with 3 in 1 dimming function (0~10Vdc,10V PWM signal and resistance) and built-in pote ntiometer | In stock |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By Request |
| DA | IP67 | DALI control technology with Io Adjustable via built-in potentiometer | By Request |
Meanwell HVGC-650-U Specifications
| Model | HVGC-650-U-□ | |
| OUTPUT | RATED CURRENT | 11200mA |
| RATED POWER | 649.6W | |
| CONSTANT CURRENT REGION | 24-58V | |
| FULL POWER CURRENT RANGE | 11200-14000mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 70V | |
| CURRENT ADJ. RANGE(Typ.) | 5600-14000mA | |
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| AUXILIARY POWER | Nominal 12V (Tolerance:±10%, R&N:150mVp-p) at 200mA for HVGC-650A only | |
| SET UP TIME | 500ms/230VAC, 347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98 / 230VAC, PF>=0.98 / 277VAC, PF>=0.97 / 347VAC, PF>=0.96 / 400VAC, PF>=0.95 / 480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% at 230VAC/277VAC/347VAC/400VAC/480VAC input | |
| EFFICIENCY (Typ.) | 95.50% | |
| AC CURRENT (Typ.) | 2.1A / 347VAC 1.5A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 40A(twidth=1250 s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 62-78V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN613471-2-16, BS EN/EN60384, IP67, EAC TP TC 004, GB19510.1,GB19510.14(for AB-Type only) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4.2KVAC I/P-FG:2.1KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%); BS EN/EN61000-3-3, FCC Part 15 class B, GB17743 and GB17625.1(for AB-Type only),EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 8KV, Line-Line 4KV), EAC TP TC 020 | |
| Others | MTBF | 218.8K hrs min. Telcordia SR-332(Bellcore) ; 60.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 280*144*48.5mm (L*W*H) | |
| PACKING | 3.9Kg;4pcs/16.6Kg/0.98CUFT | |
Meanwell HVGC-650-U Features
l Wide input range 180 ~ 528VAC
l Constant power mode output
l Metal housing with Class I design
l Surge protection with 8KV/4KV
l Built-in active PFC function
l Auxiliary DC output optional
l Typical lifetime> 50000 hours
l 5 years warranty
l IP67 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Meanwell HVGC-650-U Applications
l Harbor lighting
l LED high-bay lighting
l Parking lot lighting
l LED fishing lamp
l Horticulture lighting
l Stadium lighting
l Type “HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HVGC-650-U Mechanical Diagram
