HVGC-65-350
34.79
Details

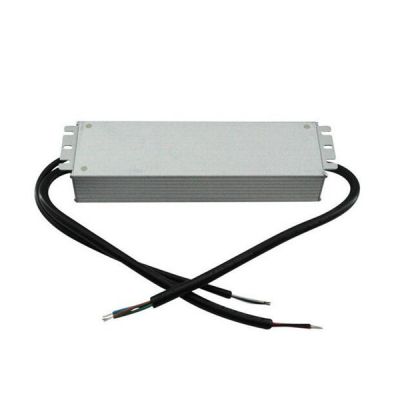

Meanwell HVGC-65-350 is 65W AC/DC LED power supply with 350mA65.1W18-186V210-350mA±5.0%180~528VAC 254VDC~747VDC47~63Hz. The product features constant current mode and high voltage output. At the same time, it could operate from 180~528VAC and offered with rated current 350mA. Since the efficiency reaches high up to 90.5% based on no fan design, HVGC-65-350 is able to work for -40℃ ~ +80℃ case temperature under free air convection. Additionally, the metal housing design and lP67/lP65 ingress protection level allow it to meet both indoor and outdoor applications. Moreover, the item is equipped with various function options such as dimming methodologies. Thanks to its longevity, high reliability and excellent quality, Meanwell HVGC-65-350 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-65-350 Encoding
| HVGC | Series Name |
| 65 | Rated Wattage |
| 350 | Rated Output Current (350/500/700/1050) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending) | By Request |
Meanwell HVGC-65-350 Specifications
| Model | HVGC-65-350 □ | |
| OUTPUT | RATED CURRENT | 350mA |
| RATED POWER | 65.1W | |
| CONSTANT CURRENT REGION | 18-186V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 210-350mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| CURRENT RIPPLE | 5.0% max. at rated current | |
| SET UP TIME | 500ms / 230Vac 400ms / 347VAC,480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=60%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 0.22A / 347VAC 0.18A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A(twidth=420μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 195-210V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384, independent, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2164.4K hrs min. Telcordia SR-332 (Bellcore) ; 202.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 189*61.5*36.8mm (L*W*H) | |
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.89CUFT | |
Meanwell HVGC-65-350 Features
l Typical lifetime> 50000 hours
l 5 years warranty
l Wide input range 180 ~ 528VAC
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Meanwell HVGC-65-350 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
Meanwell HVGC-65-350 Mechanical Diagram
