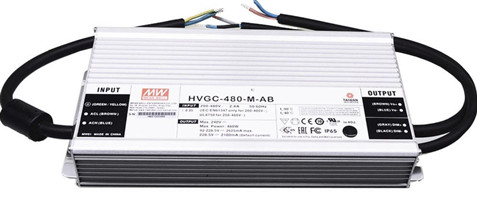

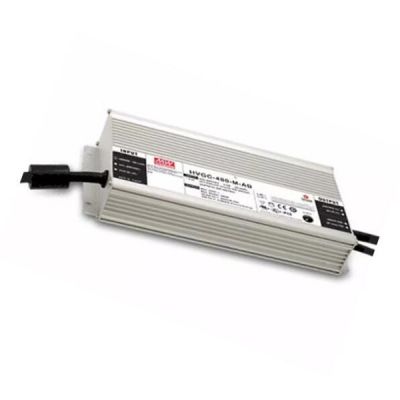

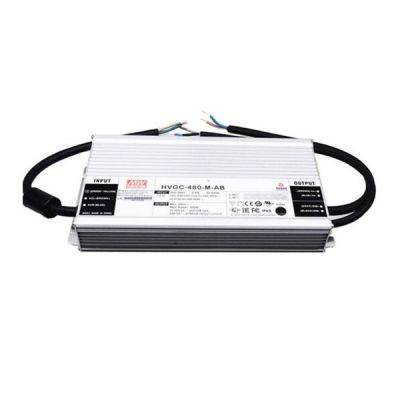

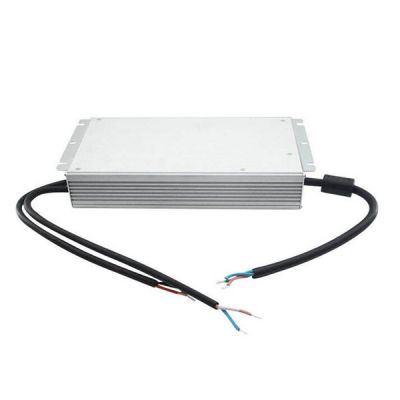

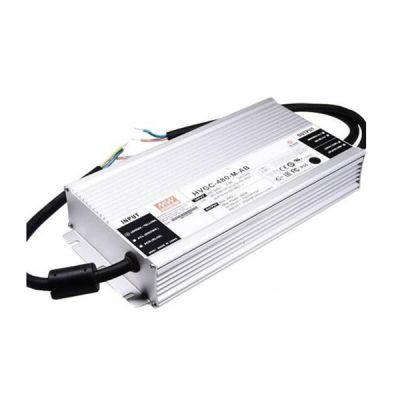

HVGC-480-M
146.29
Details
Meanwell HVGC-480-M is 480W AC/DC driver with 2100mA480W92-228.5V2100-2625mA240V1050-2625mA±5%180~528VAC254VDC~747VDC47~63Hz. The unit stands out with constant power mode and high voltage output. Meanwhile, it is able t work from 180~ 528VACwith rated current 2100mA. The model has five types: Blank AB D2 Dx ADA IP65 and IP67 respectively. Since the efficiency reaches high up to 94.5% based on no fan design, HVGC-480-M could operate for -40℃ ~ +90℃ case temperature under free air convection. What’s more, the metal housing design and IP67 ingress protection level permit it to fit both indoor and outdoor applications. In addition, the unit is supplied with various function options such as dimming methodologies. Thanks to its longevity, high reliability and excellent quality, Meanwell HVGC-480-M is an ideally suitable solution for the optimal design flexibility for LED lighting system
Meanwell HVGC-480-M Encoding
| HVGC | Series Name |
| 480 | Rated Wattage |
| M | Rated Output Current (1400/2100/2800) |
| A | Function options |
| Type | IP Level | Function | Note |
| AB | IP65 | Standard constant power output with 3 in 1 dimming function (O~10Vdc,10V PWM signal and resistance) and built-in potentiometer | In stock |
| Blank | IP67 | lo and Vo fixed | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By Request |
| ADA | IP65 | ADA IP65 DALI control technology with lo Adjustable via built-in potentiometer | By Request |
Meanwell HVGC-480-M Specifications
| Model | HVGC-480-M-□ | |
| OUTPUT | RATED CURRENT | 2100mA |
| RATED POWER | 480W | |
| CONSTANT CURRENT REGION | 92-228.5V | |
| FULL POWER CURRENT RANGE | 2100-2625mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 240V | |
| CURRENT ADJ. RANGE(Typ.) | 1050-2625mA | |
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 500ms/230VAC, 347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98 / 230VAC, PF>=0.98 / 277VAC, PF>=0.97 / 347VAC, PF>=0.96 / 400VAC, PF>=0.95 / 480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% at 230VAC/277VAC/347VAC/400VAC/480VAC input | |
| EFFICIENCY (Typ.) | 94.50% | |
| AC CURRENT (Typ.) | 1.52A / 347VAC 1.11A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 40A (twidth=1100 s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit (circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 241V-257V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~+90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-14, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP65 or IP67, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%); BS EN/EN61000-3-3, FCC Part 15 class B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 932.9K hrs min. Telcordia SR-332(Bellcore) ; 74K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 262*125*43.8mm (L*W*H) | |
| PACKING | 2.72Kg;4pcs/11.45Kg/0.55CUFT | |
Meanwell HVGC-480-M Features
l 5 years warranty
l Wide input range 180 ~ 528VAC
l Constant Power mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime> 50000 hours
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Meanwell HVGC-480-M Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l Type HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVGC-480-M Mechanical Diagram
