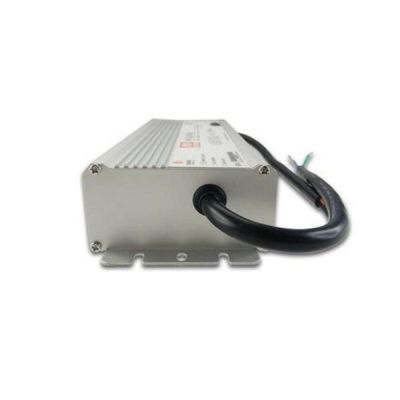

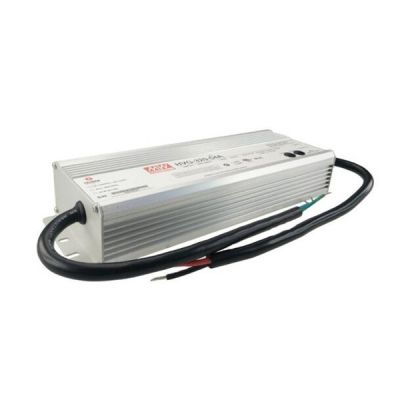

Meanwell HVGC-320 Series is 320W AC/DC LED power supply highlighting constant current mode and high voltage output. At the same time, the entire series could operate from 180~528VAC and offer models with different rated current ranging between 700mA and 3500mA. The model has five types: A B AB Dx D2 IP65 and IP67 respectively. As the efficiency reaches high up to 93.5% based on fanless design, HVGC-320 is able to work for -40℃ ~ +90℃C case temperature under free air convection. In addition, the metal housing design and IP67/IP65 ingress protection level allow them to satisfy both indoor and outdoor applications. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its longevity, high reliability and excellent quality, Meanwell HVGC-320 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-320 Series Encoding
| HVGC | Series Name |
| 320 | Rated Wattage |
| 1750 | Rated Output Current (700/1050/1400/1750/2100/2800/3500mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HVGC-320 Series Model Specifications
| Model | HVGC-320-700 □ | HVGC-320-1050 □ | HVGC-320-1400 □ | HVGC-320-1750 □ | HVGC-320-2100 □ | HVGC-320-2800 □ | HVGC-320-3500 □ | |
| OUTPUT | RATED CURRENT | 700mA | 1050mA | 1400mA | 1750mA | 2400mA | 2800mA | 3500mA |
| RATED POWER | 300W | 320W | 320W | 320W | 320W | 320W | 320W | |
| CONSTANT CURRENT REGION | 214-428V | 152.4-304.8V | 114.3-228.6V | 91.4-82.8V | 76.2-152.4V | 57-114.3V | 45.7-91.4V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||||
| 350-700mA | 525-1050mA | 700-1400ma | 875-1750mA | 1050-2100mA | 1400-2800mA | 1750-3500mA | ||
| CURRENT RIPPLE | 5.0% max. @rated current | |||||||
| CURRENT TOLERANCE | ±5.0% | |||||||
| SET UP TIME | 500ms/230VAC, 347VAC, 480VAC | |||||||
| Input | VOLTAGE RANGE | 180~528VAC 254VDC~747VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>0.93/480VAC at full load | |||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC, at load>=60%/480VAC) | |||||||
| EFFICIENCY (Typ.) | 93.50% | 93.50% | 93.50% | 93.50% | 93.50% | 93.50% | 93.00% | |
| AC CURRENT (Typ.) | 1.1A / 347VAC 0.8A / 480VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=920 s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC | |||||||
| LEAKAGE CURRENT | <0.75mA / 480VAC | |||||||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 445-455V | 320-351V | 240-263V | 192-210V | 160-175V | 120-131V | 96-105V | |
| Shut down o/p voltage with re-power on to recovery | ||||||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | ||||||
| MAX. CASE TEMP | Tcase=+90℃ | |||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent EAC TP TC 004, IP65 or IP67 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(at load>=50%), BS EN/EN61000-3-3, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020 | |||||||
| Others | MTBF | 1721.7K hrs min. Telcordia SR-332 (Bellcore) ; 146.9K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 262*90*43.8mm (L*W*H) | |||||||
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | |||||||
Meanwell HVGC-320 Series Features
l Wide input range 180 ~ 528VAC

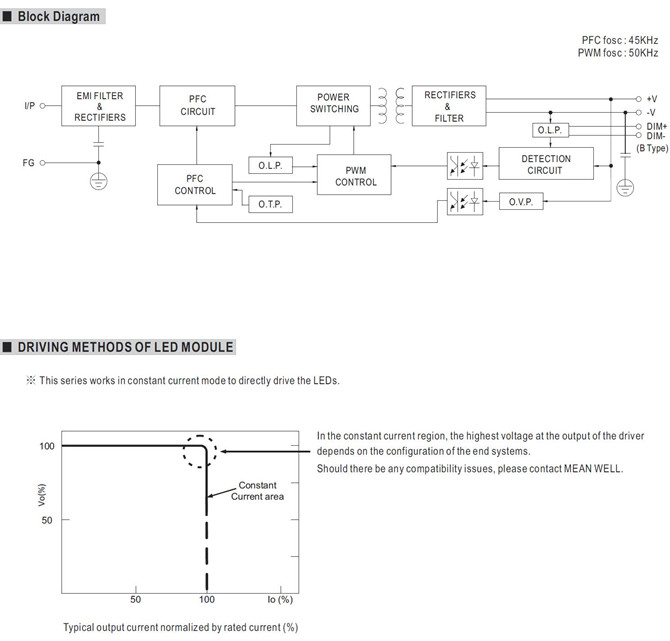

l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell HVGC-320 Series Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l Type HL" for use in Class I, Division 2 hazardous (Classified) location

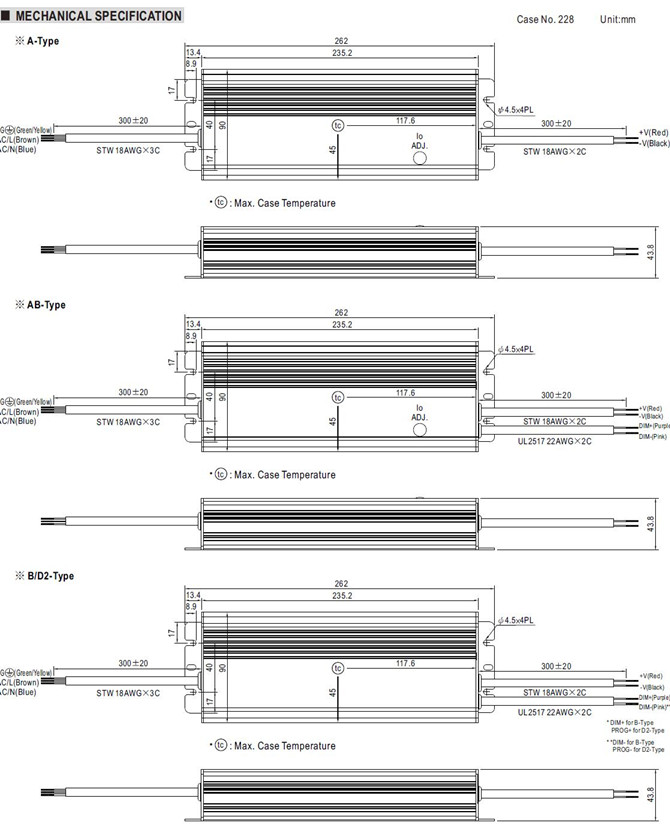

Meanwell HVGC-320 Series Mechanical Diagram
