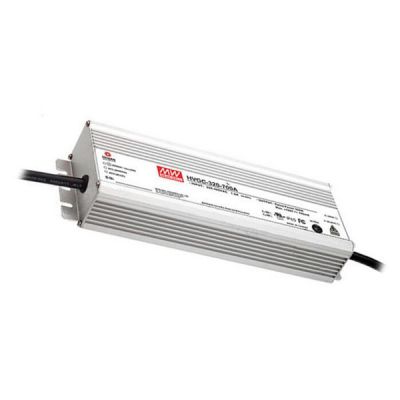

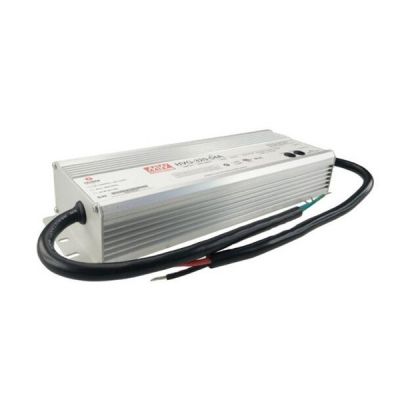

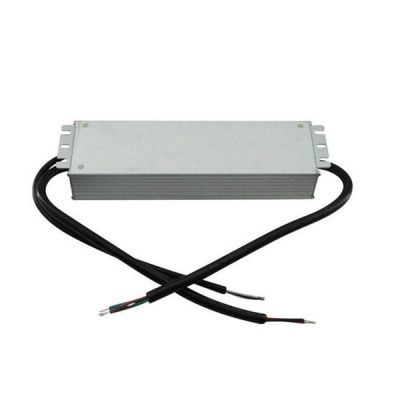

HVGC-320-2100
65.94
Details
Meanwell HVGC-320-2100 is 320W AC/DC LED power supply with 2400mA320W76.2-152.4V1050-2100mA±5.0%180~528VAC254VDC~747VDC47~63Hz. It provides constant current mode and high voltage output, and also operates from 180~528VAC. The item is equipped with rated current 1750mA. At the same time, the model has five types: A B AB Dx D2 IP65 and IP67 respectively. Since the efficiency reaches high up to 93.5% based on fanless design, HVGC-320-2100 could work for -40℃ ~ +90℃C case temperature under free air convection. In addition, the metal housing design and IP67/IP65 ingress protection level permit it to fit both indoor and outdoor applications. Besides them, the unit is supplied with various function options such as dimming methodologies. As a result of its longevity, high reliability and excellent quality, Meanwell HVGC-320-2100 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-320-2100 Encoding
| HVGC | Series Name |
| 320 | Rated Wattage |
| 2100 | Rated Output Current (700/1050/1400/1750/2100/2800/3500mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HVGC-320-2100 Specifications
| Model | HVGC-320-2100 □ | |
| OUTPUT | RATED CURRENT | 2400mA |
| RATED POWER | 320W | |
| CONSTANT CURRENT REGION | 76.2-152.4V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 1050-2100mA | ||
| CURRENT RIPPLE | 5.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/230VAC, 347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180~528VAC 254VDC~747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC, at load>=60%/480VAC) | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT (Typ.) | 1.1A / 347VAC 0.8A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=920 s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 160-175V | |
| Shut down o/p voltage with re-power on to recovery | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(at load>=50%), BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020 | |
| Others | MTBF | 1721.7K hrs min. Telcordia SR-332 (Bellcore) ; 146.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 262*90*43.8mm (L*W*H) | |
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | |
Meanwell HVGC-320-2100 Features
l Wide input range 180 ~ 528VAC
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime> 50000 hours
l 5 years warranty
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Meanwell HVGC-320-2100 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l Type HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVGC-320-2100 Mechanical Diagram
