HVGC-320-1050
65.13
Details

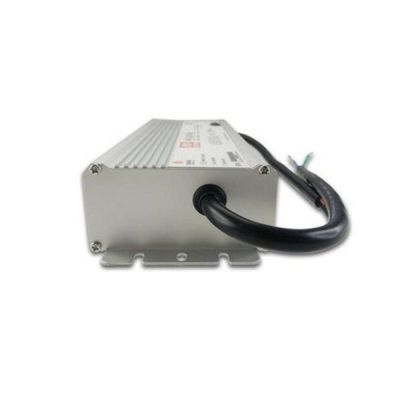

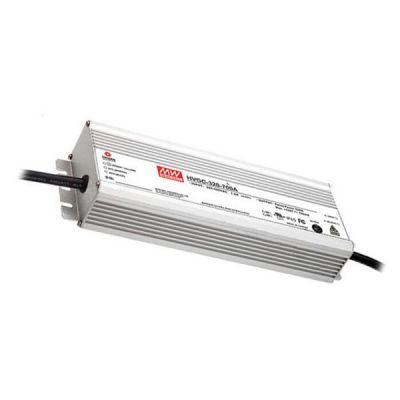

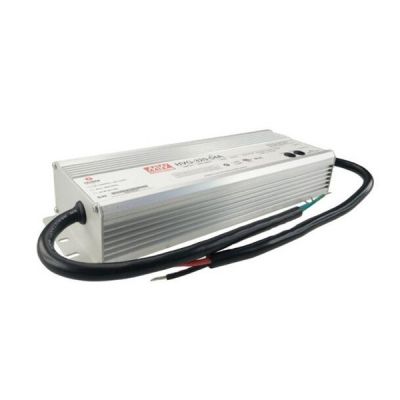

Meanwell HVGC-320-1050 is 320W AC/DC LED power supply with 1050mA320W152.4-304.8V525-1050mA±5.0%180~528VAC254VDC~747VDC47~63Hz. The item highlights constant current mode and high voltage output. Meanwhile, it could work from 180~528VAC and offered with rated current 1050mA. The model has five types: A B AB Dx D2 IP65 and IP67 respectively. As the efficiency reaches high up to 93.5% based on no fan design, HVGC-320-1050 is able to operate for -40℃ ~ +90℃C case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level permit it to meet both indoor and outdoor applications. In addition, the unit is supplied with various function options such as dimming methodologies. Due to its longevity, high reliability and excellent quality, Meanwell HVGC-320-1050 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-320-1050 Encoding
| HVGC | Series Name |
| 320 | Rated Wattage |
| 1050 | Rated Output Current (700/1050/1400/1750/2100/2800/3500mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | Io adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HVGC-320-1050 Specifications
| Model | HVGC-320-1050 □ | |
| OUTPUT | RATED CURRENT | 1050mA |
| RATED POWER | 320W | |
| CONSTANT CURRENT REGION | 152.4-304.8V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 525-1050mA | ||
| CURRENT RIPPLE | 5.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/230VAC, 347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180~528VAC 254VDC~747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC, at load>=60%/480VAC) | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT (Typ.) | 1.1A / 347VAC 0.8A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=920 s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 320-351V | |
| Shut down o/p voltage with re-power on to recovery | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(at load>=50%), BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020 | |
| Others | MTBF | 1721.7K hrs min. Telcordia SR-332 (Bellcore) ; 146.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 262*90*43.8mm (L*W*H) | |
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | |
Meanwell HVGC-320-1050 Features
l 5 years warranty
l Wide input range 180 ~ 528VAC
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime> 50000 hours
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Meanwell HVGC-320-1050 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l Type HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVGC-320-1050 Mechanical Diagram
