HVGC-1000-H
340.28
Details

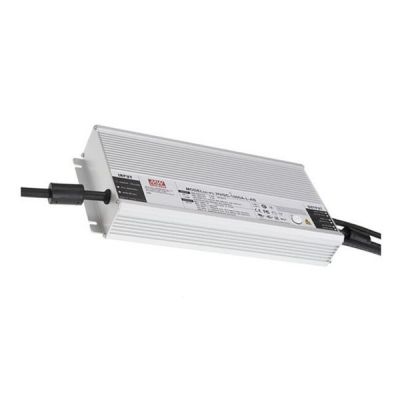

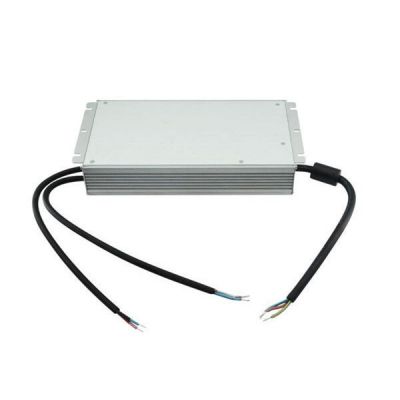

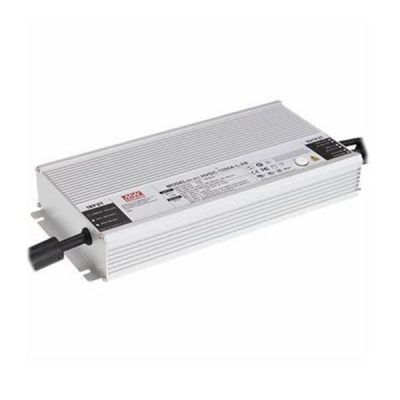

Meanwell HVGC-1000-H is 1000W AC/DC LED driver with 5600mA1008W70-180V5600-7000mA190V2800-7000mA±5%500ms/230VAC347VAC480VAC47~63Hz. The unit provides constant power mode and wide output voltage range. Meanwhile, it is able to work from 180~ 528VAC with rated current 560000mA. The model has four types: AB D2 Dx DA IP67 respectively. With the efficiency high up to 96% based on fanless design. HVGC-1000-H is able to operate for -40℃~+90℃ case temperature under free air convection. Furthermore, the metal housing design and IP67 ingress protection level make it possible to fit both indoor and outdoor applications like horticulture lighting and stadium light. Additionally, the item is supplied with various function options such as dimming methodologies. As a result of its long lifetime, high reliability and excellent performance, Meanwell HVGC-1000-H is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-1000-H Encoding
| HVGC | Series Name |
| 1000 | Rated Wattage |
| A | Auxiliary DC output ( 12V at 500mA) |
| M | Rated output current (L: 2800/ M: 4200/ H: 5600mA) |
| AB | Function options (AB/D2/Dx/DA) |
| Type | IP Level | Function | Note |
| AB | IP67 | Standard constant power output with3 in 1 dimming function (O~10Vdc,10V PWM signal and resistance) and built-in potentiometer | In stock |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By Request |
| DA | IP67 | DALI-2 control technology with lo Adjustable via built-in potentiometer | By Request |
Meanwell HVGC-1000-H Specifications
| Model | HVGC-1000-H-□ | |
| OUTPUT | RATED CURRENT | 5600mA |
| RATED POWER | 1008W | |
| CONSTANT CURRENT REGION | 70-180V | |
| FULL POWER CURRENT RANGE | 5600-7000mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 190V | |
| CURRENT ADJ. RANGE(Typ.) | 2800-7000mA | |
| CURRENT RIPPLE | 3.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| AUXILIARY POWER | Nominal 12V (Tolerance:±10%, R&N:150mVp-p) at 500mA for HVGC-1000A only | |
| SET UP TIME | 500ms/230VAC, 347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98 / 230VAC, PF>=0.98 / 277VAC, PF>=0.97 / 347VAC, PF>=0.96 / 400VAC, PF>=0.95 / 480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 10% at 347VAC> 80% loading | |
| EFFICIENCY (Typ.) | 96.00% | |
| AC CURRENT (Typ.) | 3.15A / 347VAC 2.28A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 40A (twidth=1850 s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 Unit for 30A type B circuit breaker / 8 unit for 30A type C circuit breaker at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 190-205V | |
| Shut down output voltage, re-power on to recovery | ||
| OVER TEMPERATURE | Shut down output voltage, re-power on to recovery | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 55℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CAN/CSA C22.2 NO. 250. 13-17, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; CCC GB19510.1,GB19510.14; EAC TP TC 004, IP67 approved |
| DALI STANDARDS | Compare to IEC62386-101.102.207 for DA-Type only (Device type 6, DT6) | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.8KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | FCC Part 15 class B, EAC TP TC 020 | |
| EMC IMMUNITY | BS EN/EN61547, CCC GB/T17743 and GB17625 | |
| Others | MTBF | 682.8K hrs min. Telcordia SR-332(Bellcore) ; 68.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 310*144*48.5mm (L*W*H) 4.2Kg;4pcs/17.8Kg/1.16CUFT |
|
| PACKING | 4.2Kg;4pcs/17.8Kg/1.16CUFT | |
Meanwell HVGC-1000-H Features
l 5 years warranty
l Surge protection with 8KV/4KV
l Built-in active PFC function
l Typical lifetime> 50000 hours
l Wide input range 180 ~ 528VAC
l Constant power mode output
l Metal housing with Class I design
l Smart timer dimming and DALI-2
l 3 in 1 dimming (dim to off and lsolation)
l Support with auxiliary DC output 12V/500Ma
l IP67 design for indoor or outdoor installation
Meanwell HVGC-1000-H Applications
l Harbor lighting
l High-bay lighting
l Flood lighting
l Fishing lamp
l Horticulture lighting
l Stadium lighting
l Type HL "for use in Class I , Division 2 hazardous (Classified) location
Meanwell HVGC-1000-H Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
