HVGC-100
45.69
Details
Meanwell HVGC-100 Series is 100W AC/DC LED drive highlighting constant current mode and high voltage output. At the same time, the entire series could operate from 180~ 528VAC and offer models with different rated current 350mA and 700mA respectively. Since the efficiency reaches up to 91% with fanless design, HVGC-100 is able to work for -40℃~ +90℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level allow them to satisfy both indoor and outdoor applications. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its long lifetime, high reliability and excellent quality, Meanwell HVGC-100 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-100 Series Encoding
| HVGC | Series Name |
| 100 | Rated Wattage |
| 700 | Rated Output Current (350/700) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in1dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending) | By Request |
Meanwell HVGC-100 Series Model Specifications
| Model | HVGC-100-350 □ | HVGC-100-700 □ | |
| OUTPUT | RATED CURRENT | 350mA | 700mA |
| RATED POWER | 99.75W | 99.4W | |
| CONSTANT CURRENT REGION | 29-285V | 15-142V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | ||
| 210-350mA | 420-700mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | ||
| CURRENT TOLERANCE | ±5.0% | ||
| CURRENT RIPPLE | 5.0% max. at rated current | ||
| SET UP TIME | 500ms / 230Vac 400ms / 347VAC,480VAC | ||
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.98/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load | ||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC) | ||
| EFFICIENCY (Typ.) | 91.00% | 91.00% | |
| AC CURRENT (Typ.) | 0.38A / 347VAC 0.28A / 480VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 25A(twidth=900μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC | ||
| LEAKAGE CURRENT | <0.75mA / 480VAC | ||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 300-320V | 150-160V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | |||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | |
| MAX. CASE TEMP | Tcase=+90℃ | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved; design refer to UL60950-1 | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, FCC Part 15 Subpart, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||
| Others | MTBF | 745.0K hrs min. Telcordia SR-332 (Bellcore) ; 186.1K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 236*68*38.8mm (L*W*H) | ||
| PACKING | 1.18Kg; 12pcs/15.2Kg/0.74CUFT | ||
Meanwell HVGC-100 Series Features
l Wide input range 180 ~ 528VAC
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell HVGC-100 Series Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp

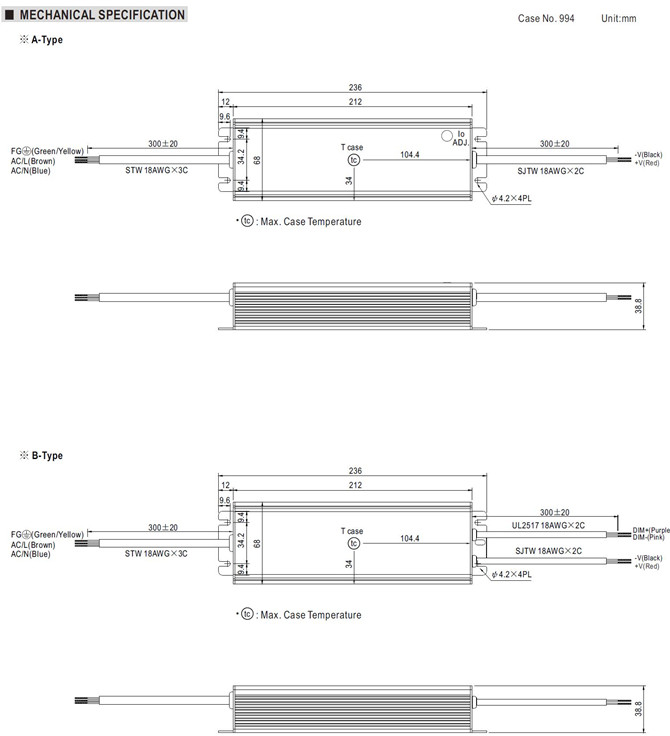

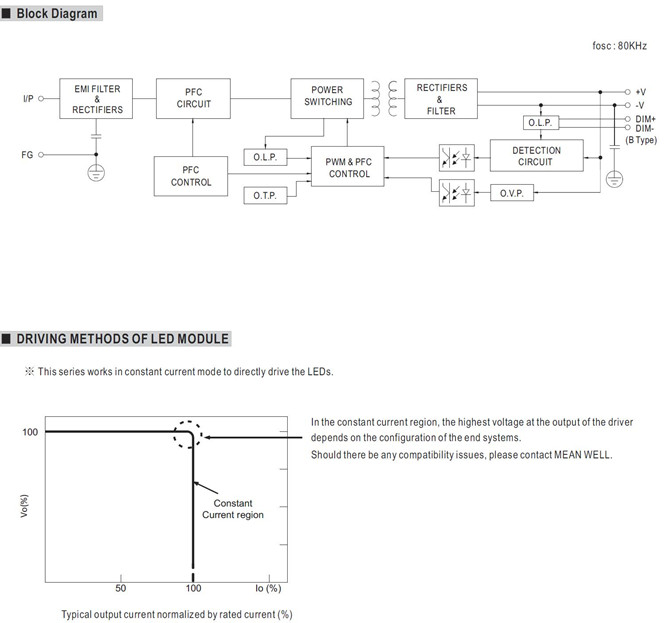

Meanwell HVGC-100 Series Mechanical Diagram
