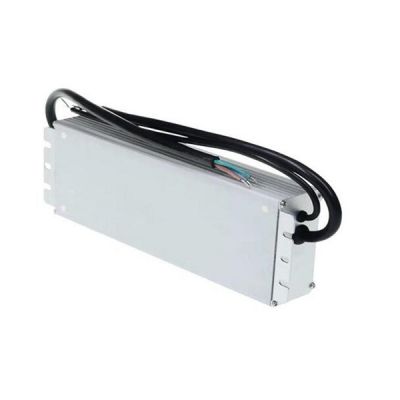

HVG-65
39.79
Details

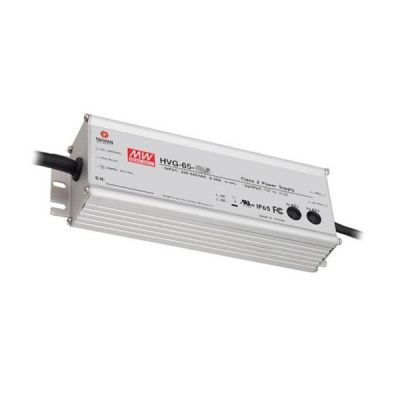

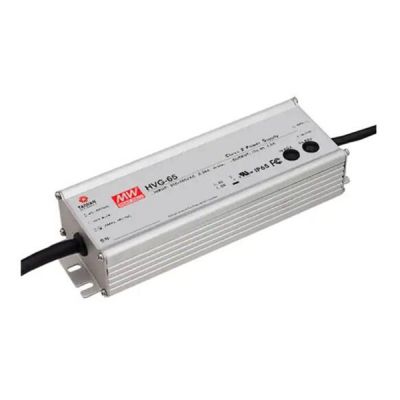

Meanwell HVG-65 Series is a 65W AC/DC LED driver highlighting dual mode constant voltage and constant current output. At the same time, the entire series could operate from 180~ 528VAC and offer models with different rated voltage ranging between 12V and 54V. Since the efficiency reaches high up to 90% under no fan design, HVG-65 is able to work for -40℃ ~ +80℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level allow the series to satisfy both indoor and outdoor applications. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent reliability, Meanwell HVG-65 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-65 Series Encoding
| HVG | Series Name |
| 65 | Rated Wattage |
| 15 | Rated Output Voltage ( 12/15/20/24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Built-in Smart timer dimming function by user request | By Request |
Meanwell HVG-65 Series Model Specifications
| Model | HVG-65-12 | HVG-65-15 | HVG-65-20 | HVG-65-24 | HVG-65-30 | HVG-65-36 | HVG-65-42 | HVG-65-48 | HVG-65-54 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| RATED CURRENT | 5A | 4.3A | 3.25A | 2.71A | 2.17A | 1.81A | 1.55A | 1.36A | 1.21A | |
| RATED POWER | 60W | 64.5W | 65W | 65W | 65.1W | 65.2W | 65.1W | 65.3W | 65.3W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 300mVp-p | 300mVp-p | 300mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via the built-in potentiometer) | |||||||||
| 10.8-13.5V | 13.5-17V | 17-22V | 22-27V | 27-33V | 33-40V | 38-46V | 43-53V | 49-58V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |||||||||
| 3-5A | 2.58-4.3A | 1.95-3.25A | 1.62-2.71A | 1.3-2.17A | 1.08-1.81A | 0.93-1.55A | 0.81-1.36A | 0.72-1.21A | ||
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.5% | ±1.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms /230VAC 400ms, 80ms /347VAC, 480VAC | |||||||||
| HOLD UP TIME (Typ.) | 16ms / 347VAC 30ms / 480VAC | |||||||||
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC) | |||||||||
| EFFICIENCY (Typ.) | 86.50% | 87.50% | 88.50% | 89.00% | 89.00% | 89.50% | 89.50% | 90.00% | 90.00% | |
| AC CURRENT | 0.22A / 347VAC 0.18A / 480VAC | |||||||||
| INRUSH CURRENT (Typ. ) | COLD START 25A(twidth=420μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC | |||||||||
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 14.4-16.8V | 18-21V | 23-27V | 28-34V | 34V-38V | 41-46V | 47-53V | 54-60V | 59-65V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | ||||||||
| MAX. CASE TEMP. | Tcase=+80℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (at load>=60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |||||||||
| Others | MTBF | 2170.5K hrs min. Telcordia SR-332 (Bellcore) ; 208.0K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 189*61.5*36.8mm (L*W*H) | |||||||||
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.89CUFT | |||||||||
Meanwell HVG-65 Series Features
l Wide input range 180 ~ 528VAC
l Constant Voltage and Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Class 2 power unit
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell HVG-65 Series Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting

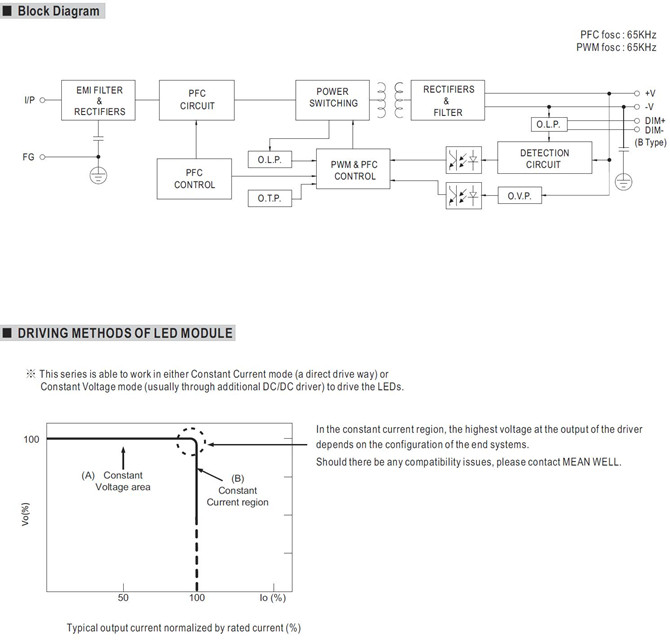

Meanwell HVG-65 Series Mechanical Diagram
