HVG-65-24
40.28
Details

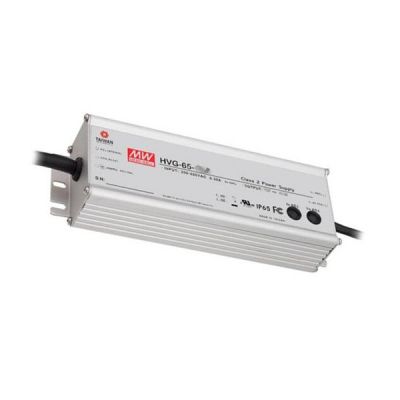

Meanwell HVG-65-24 is a 65W AC/DC LED driver with 24V14.4-24V2.71A65W150mVp-p22-27V1.62-2.71A±1.0%±0.5%±0.5%. It stands out with dual mode constant voltage and constant current output. Meanwhile, the unit operates from 180~ 528VAC with rated voltage 24V. Since the efficiency is high up to 90% under no fan design, HVG-65-24 could work for -40℃ ~ +80℃ case temperature under free air convection. Moreover, the metal housing design and IP67/IP65 ingress protection level allow it to satisfy both indoor and outdoor applications. In addition, the unit is equipped with various function options such as dimming methodologies. In view of its longevity, high efficiency and excellent reliability, Meanwell HVG-65-24 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-65-24 Encoding
| HVG | Series Name |
| 65 | Rated Wattage |
| 24 | Rated Output Voltage ( 12/15/20/24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Built-in Smart timer dimming function by user request | By Request |
Meanwell HVG-65-24 Specifications
| Model | HVG-65-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| CONSTANT CURRENT REGION | 14.4-24V | |
| RATED CURRENT | 2.71A | |
| RATED POWER | 65W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via the built-in potentiometer) | |
| 22-27V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 1.62-2.71A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms /230VAC 400ms, 80ms /347VAC, 480VAC | |
| HOLD UP TIME (Typ.) | 16ms / 347VAC 30ms / 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC) | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT | 0.22A / 347VAC 0.18A / 480VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 25A(twidth=420μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 28-34V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (at load>=60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2170.5K hrs min. Telcordia SR-332 (Bellcore) ; 208.0K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 189*61.5*36.8mm (L*W*H) | |
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.89CUFT | |
Meanwell HVG-65-24 Features
l 5 years warranty
l Class 2 power unit
l Built-in active PFC function
l Wide input range 180 ~ 528VAC
l Typical lifetime> 50000 hours
l Metal housing with Class I design
l IP67 / IP65 rating for indoor or outdoor installations
l Constant Voltage and Constant Current mode output
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Meanwell HVG-65-24 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting

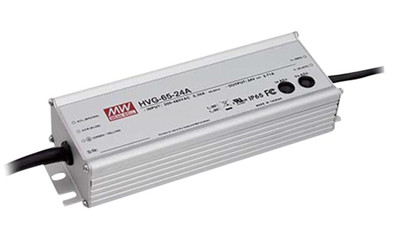

Meanwell HVG-65-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
