HVG-320
69.37
Details

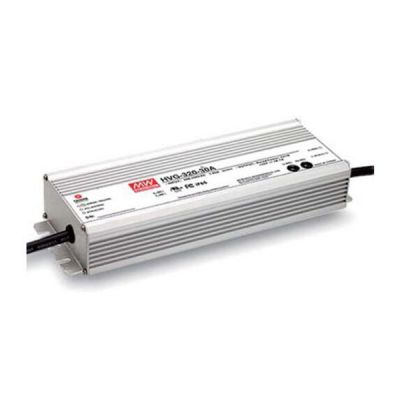

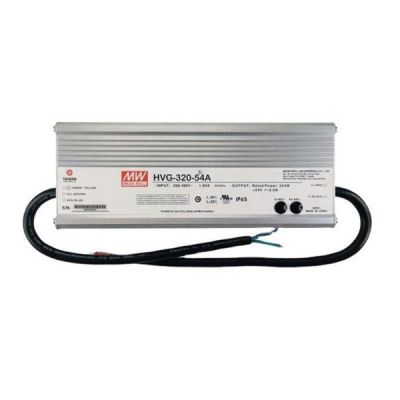

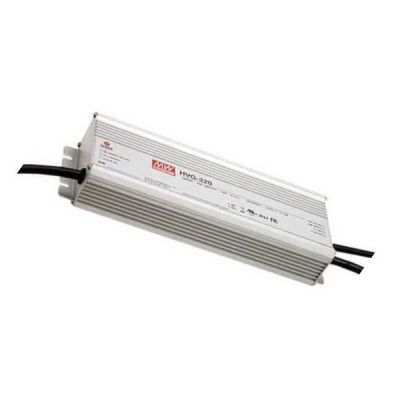

Meanwell HVG-320 Series is a 320W AC/DC LED power supply highlighting dual mode constant voltage and constant current output. At the same time, the entire series could operate from 180~528V AC and offer models with different rated voltage ranging between 24V and 54V. As the efficiency reaches high up to 94% with no fan design, HVG-320 is able to work for -40℃ ~ +85℃ case temperature under free air convection. In addition, the metal housing design and IP67/IP65 ingress protection level allow them to fit both indoor and outdoor applications. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its longevity, high quality and excellent reliability, Meanwell HVG-320 series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-320 Series Encoding
| HVG | Series Name |
| 320 | Rated Wattage |
| 30 | Rated Output Voltage (24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (o~10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HVG-320 Series Model Specifications
| Model | HVG-320-24□ | HVG-320-30□ | HVG-320-36□ | HVG-320-42□ | HVG-320-48□ | HVG-320-54□ | |
| OUTPUT | DC VOLTAGE | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 12-24V | 15-30V | 18-36V | 21-42V | 24-48V | 27-54V | |
| RATED CURRENT | 13.4A | 10.7A | 8.9A | 7.6A | 6.7A | 6A | |
| RATED POWER | 321.6W | 321W | 320.4W | 319.2W | 321.6W | 324W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 200mVp-p | 250Vp-p | 250Vp-p | 250Vp-p | 350Vp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | ||||||
| 21-26V | 26-32V | 32-39V | 38-45V | 43-52V | 49-58V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | ||||||
| 6.7-13.4A | 5.35-10.7A | 4.45-8.9A | 3.8-7.6A | 3.35-6.7A | 3-6A | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 150ms /230VAC, 347VAC, 480VAC | ||||||
| HOLD UP TIME (Typ.) | 15ms / 347VAC, 480VAC | ||||||
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.98/277VAC, PF>=0.97/347VAC, PF>=0.95/480VAC at full load | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50%/230VAC, 277VAC, 347VAC, 480VAC) | ||||||
| EFFICIENCY (Typ.) | 92.50% | 93.00% | 93.50% | 93.50% | 94.00% | 94.00% | |
| AC CURRENT | 1.1A / 347VAC 0.8A / 480VAC | ||||||
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=850μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2unit(circuit breaker of type B) / 4units(circuit breaker of type C) at 480VAC | ||||||
| LEAKAGE CURR ENT | <0.75mA / 480VAC | ||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 27-33V | 33-37V | 40-46V | 46.5-53V | 53.5-60V | 59-65V | |
| Shut down and latch off o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | |||||
| MAX. CASE TEMP. | Tcase=+85℃ | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to FCC Part 15 Subpart B, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | ||||||
| Others | MTBF | 1695.8K hrs min. Telcordia SR-332(Bellcore) ; 144.9K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 262*90*43.8mm (L*W*H) | ||||||
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | ||||||
Meanwell HVG-320 Series Features
l Wide input range 180 ~ 528VAC
l Constant Voltage + Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l IP67/IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell HVG-320 Series Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type "HL" for use in Class I, Division 2 hazardous (Classified) location

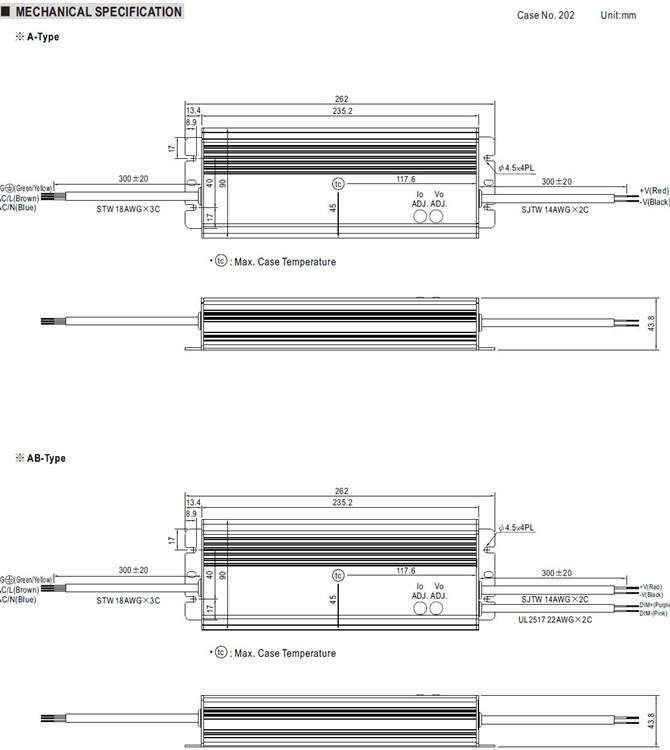

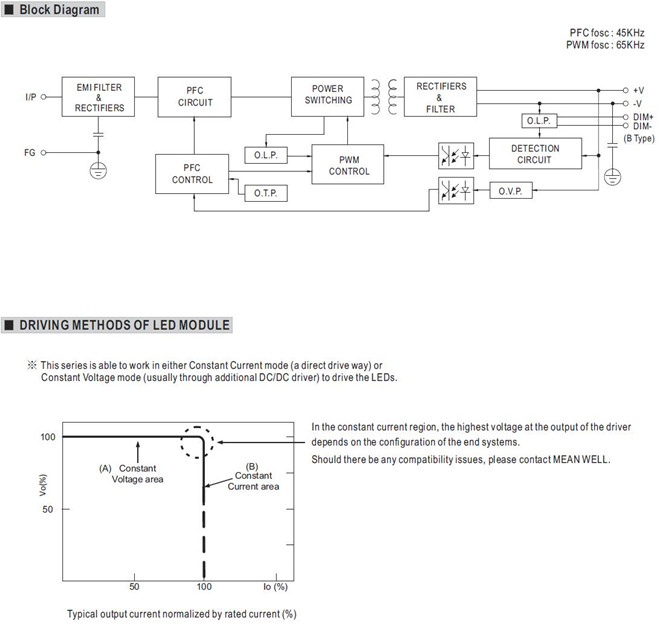

Meanwell HVG-320 Series Mechanical Diagram
