HVG-320-42
71.69
Details

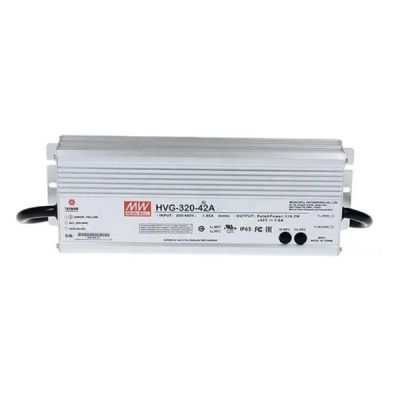

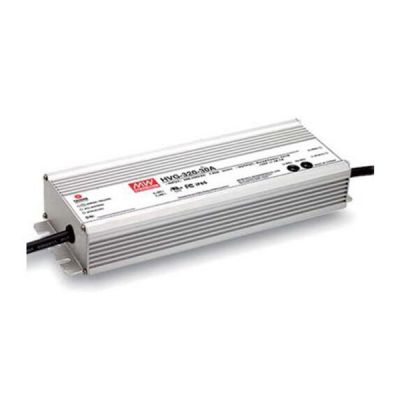

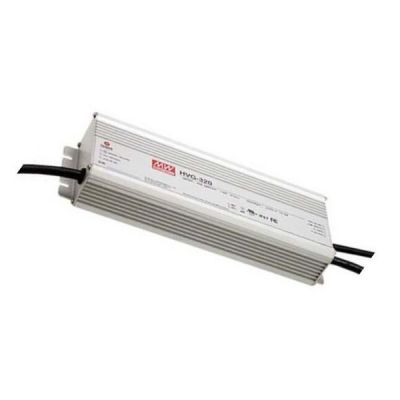

Meanwell HVG-320-42 is a 320W AC/DC LED power supply with 42V21-42V7.6A319.2W250Vp-p38-45V3.8-7.6A±1.0%±0.5%±0.5%. The item provides dual mode constant voltage and constant current output. And it operates from 180~528V AC with rated voltage 42V. As the efficiency reaches high up to 94% via no fan design, HVG-320-42 could work for -40℃ ~ +85℃ case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allow it to suit both indoor and outdoor applications. What’s more, the model is supplied with various function options such as dimming methodologies. In view of its longevity, high quality and excellent reliability, Meanwell HVG-320-42 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-320-42 Encoding
| HVG | Series Name |
| 320 | Rated Wattage |
| 42 | Rated Output Voltage (24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (o~10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HVG-320-42 Specifications
| Model | HVG-320-42□ | |
| OUTPUT | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION | 21-42V | |
| RATED CURRENT | 7.6A | |
| RATED POWER | 319.2W | |
| RIPPLE & NOISE (max.) | 250Vp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 38-45V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 3.8-7.6A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 150ms /230VAC, 347VAC, 480VAC | |
| HOLD UP TIME (Typ.) | 15ms / 347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.98/277VAC, PF>=0.97/347VAC, PF>=0.95/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50%/230VAC, 277VAC, 347VAC, 480VAC) | |
| EFFICIENCY (Typ.) | 93.50% | |
| AC CURRENT | 1.1A / 347VAC 0.8A / 480VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=850μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2unit(circuit breaker of type B) / 4units(circuit breaker of type C) at 480VAC | |
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 46.5-53V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+85℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC Part 15 Subpart B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1695.8K hrs min. Telcordia SR-332(Bellcore) ; 144.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 262*90*43.8mm (L*W*H) | |
| PACKING | 2Kg; 8pcs/17Kg/0.92CUFT | |
Meanwell HVG-320-42 Features
l 5 years warranty
l Built-in active PFC function
l Typical lifetime> 50000 hours
l Wide input range 180 ~ 528VAC
l Metal housing with Class I design
l IP67/IP65 rating for indoor or outdoor installations
l Constant Voltage + Constant Current mode output
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Meanwell HVG-320-42 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type "HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVG-320-42 Mechanical Diagram
