HVG-240-48
49.47
Details

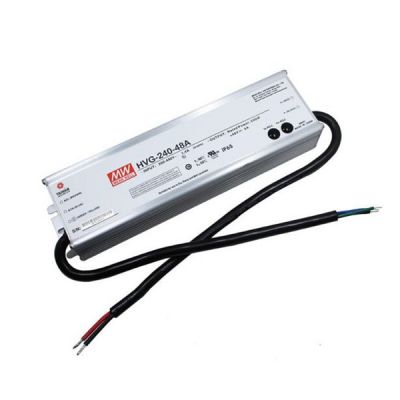

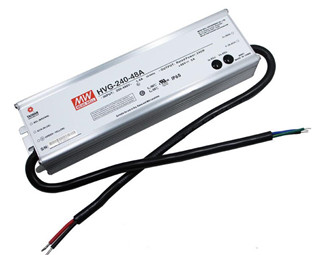

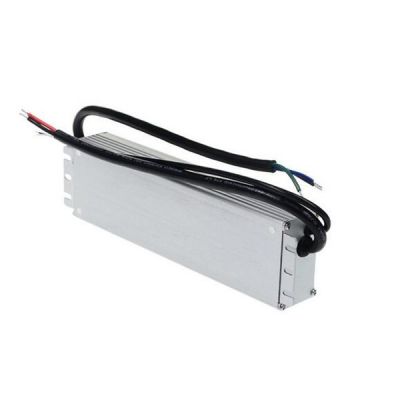

Meanwell HVG-240-48 is a 240W AC/DC LED power supply with 48V24-48V5A240W250Vp-p44.5-51.2V2.5-5A±1.0%±0.5%±0.5%. It provides dual mode constant voltage and constant current output. And the item is able to operate from 180~528VAC with rated voltage 48V. With the efficiency reaching high up to 93% under no fan design, HVG-240-48 is able to work for-40℃ ~ +90℃ case temperature through free air convection. What’s more, the metal housing design and IP67/IP 65 ingress protection level permit it to fit both indoor and outdoor applications. In addition, the model is supplied with various function options such as dimming methodologies. Because of its long lifetime, high quality and excellent reliability, Meanwell HVG-240-48 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-240-48 Encoding
| HVG | Series Name |
| 240 | Rated Wattage |
| 48 | Rated Output Voltage (24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (o~10Vdc, 10V PWM signal and resistance) | In Stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request. | By Request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | By Request |
Meanwell HVG-240-48 Specifications
| Model | HVG-240-48□ | |
| OUTPUT | DC VOLTAGE | 48V |
| CONSTANT CURRENT REGION | 24-48V | |
| RATED CURRENT | 5A | |
| RATED POWER | 240W | |
| RIPPLE & NOISE (max.) | 250Vp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 44.5-51.2V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 2.5-5A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 150ms /230VAC, 347VAC, 480VAC | |
| HOLD UP TIME (Typ.) | 12ms/347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC, at load>=60%/480VAC | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT | 0.8A / 347VAC 0.6A / 480VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 50A(twidth=532μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC | |
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 55-63V | |
| Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down and latch off o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750 (type”HL”), CSA C22.2 No. 250.13-12, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to FCC Part 15 Subpart B,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1704.5K hrs min. Telcordia SR-332(Bellcore) ; 141.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 254.2*68*38.8mm (L*W*H) | |
| PACKING | 1.31Kg; 12pcs/15.7Kg/0.78CUFT | |
Meanwell HVG-240-48 Features
l Wide input range 180 ~ 528VAC
l Typical lifetime> 50000 hours
l 5 years warranty
l Constant Voltage + Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l IP67 1 IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming
Meanwell HVG-240-48 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type "HL" for use in Class I, Division 2 hazardous (Classified) location

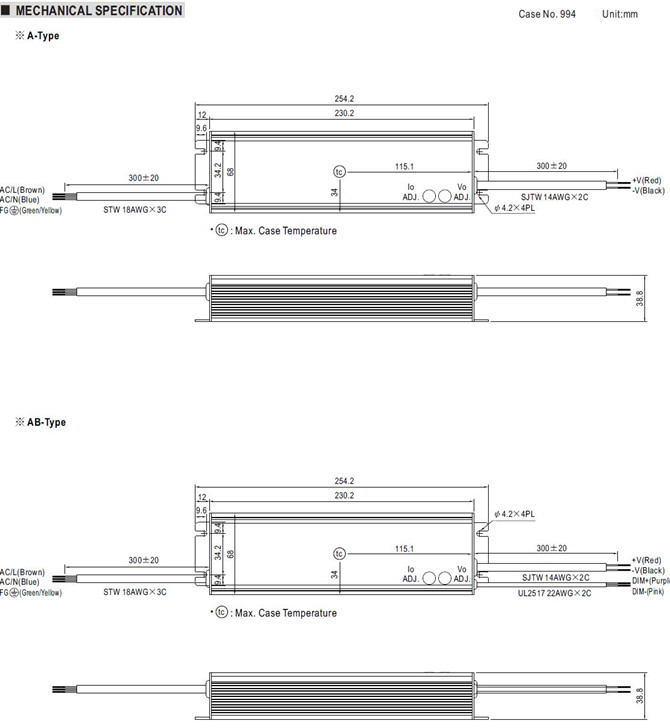

Meanwell HVG-240-48 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
