HVG-150-42
47
Details

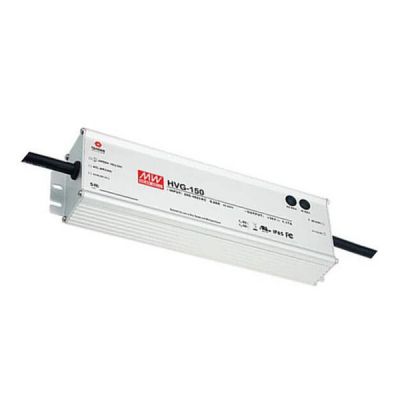

Meanwell HVG-150-42 is a 150W AC/DC L ED power supply with 42V23.1-42V3.58A150.36W200mVp-p38-46V1.97-3.58A±1.0%±0.5%±0.5%. It highlights dual mode constant voltage and constant current output. At the same time, the unit can operate from 180~ 528V AC and offered with rated voltage 42V. With the high efficiency reaching up to 91.5% under no fan design, HVG-150-42 is able to work from -40℃ through as high as +85℃ case temperature via free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level permit it to fit both indoor and outdoor applications. Moreover, the product is equipped with various function options such as dimming methodologies. Due to its long lifetime, high quality and excellent reliability, Meanwell HVG-150 -42 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-150-42 Encoding
| HVG | Series Name |
| 150 | Rated Wattage |
| 42 | Rated Output Voltage (12V/15/20/24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) | In stock |
| AB | IP65 | lo and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (O~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending) | By Request |
Meanwell HVG-150-42 Specifications
| Model | HVG-150-42 | |
| OUTPUT | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION | 23.1-42V | |
| RATED CURRENT | 3.58A | |
| RATED POWER | 150.36W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 38-46V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 1.97-3.58A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms /230VAC, 347VAC, 480VAC | |
| HOLD UP TIME (Typ.) | 18ms/347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC [at load>=60% only for 12V model]; at load>75%/480VAC) | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT | 347VAC 480VAC 0.45A 0.5A 0.35A 0.38A | |
| INRUSH CURRENT (Typ. ) | COLD START 35A(twidth=790μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 47-53V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +85℃(-40 ~ +75℃ for 12V model, -40 ~ +80℃ for 15V model)(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+85℃(+75℃ for 12V model, +80℃ for 15V model) | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (at load>=55% load,at load>=60% only for 12V model ) ; EN61000-3-3, FCC Part 15 Subpart,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1796.5K hrs min. Telcordia SR-332(Bellcore) ; 158.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 245*68*38.8mm (L*W*H) | |
| PACKING | 1.24Kg; 12pcs/15.9Kg/0.78CUFT | |
Meanwell HVG-150-42 Features
l Wide input range 180 ~ 528VAC
l Constant Voltage + Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime>50000 hours
l 5 years warranty
l IP67 / IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off) ; Timer dimming
Meanwell HVG-150-42 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type "HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HVG-150-42 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
