HVG-100-36
45.46
Details

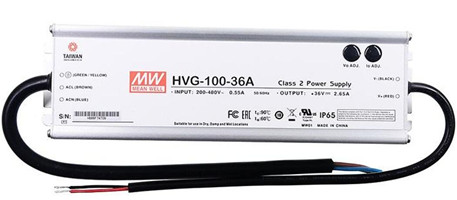

Meanwell HVG-100-36 is a 100W AC/DC LED driver with 36V18-36V2.65A95.4W200mVp-p33-40V1.45-2.65A±1.0%±0.5%±0.5%. The item highlights dual mode constant voltage and constant current output, and operates from 180~528VAC. It is supplied with rated voltage 36V as well. With the efficiency reaching high up to 91% through no fan design, HVG-100-36 is able to work for -40℃ ~ +90℃ case temperature via free air convection. Besides them, the metal housing design and IP67/IP 65 ingress protection level allow to satisfy both indoor and outdoor applications. Additionally, the model is equipped with various function options such as dimming methodologies. As a result of its longevity, high quality and excellent reliability, Meanwell HVG-100-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-100-36 Encoding
| HVG | Series Name |
| 100 | Rated Wattage |
| 36 | Rated Output Voltage (15/20/24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Built-in Smart timer dimming function by user request | By Request |
Meanwell HVG-100-36 Specifications
| Model | HVG-100-36 | |
| OUTPUT | DC VOLTAGE | 36V |
| CONSTANT CURRENT REGION | 18-36V | |
| RATED CURRENT | 2.65A | |
| RATED POWER | 95.4W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 33-40V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 1.45-2.65A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms /230VAC, 347VAC, 480VAC | |
| HOLD UP TIME (Typ.) | 30ms/347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.98/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC [at load>=60% only for 15V model]; at load>=75%/480VAC) | |
| EFFICIENCY (Typ.) | 90.50% | |
| AC CURRENT | 0.38A / 347VAC 0.28A / 480VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 25A(twidth=900μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 41-46V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (at load>=50% load,at load>=60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 236*68*38.8mm (L*W*H) | |
| PACKING | 1.18Kg; 12pcs/15.2Kg/0.74CUFT | |
Meanwell HVG-100-36 Features
l 5 years warranty
l Class 2 power unit
l Built-in active PFC function
l Typical lifetime> 50000 hours
l Wide input range 180 ~ 528VAC
l Metal housing with Class I design
l Constant Voltage + Constant Current mode output
l IP67 1 IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Meanwell HVG-100-36 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type "HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HVG-100-36 Mechanical Diagram
