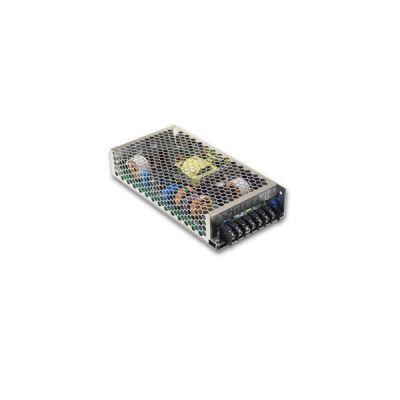

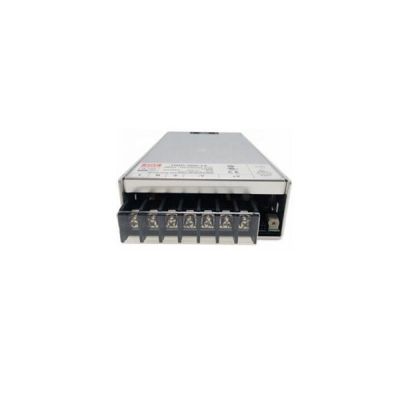

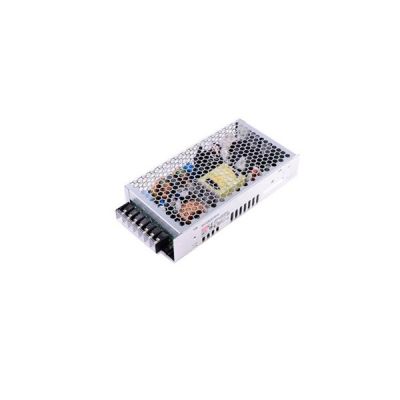

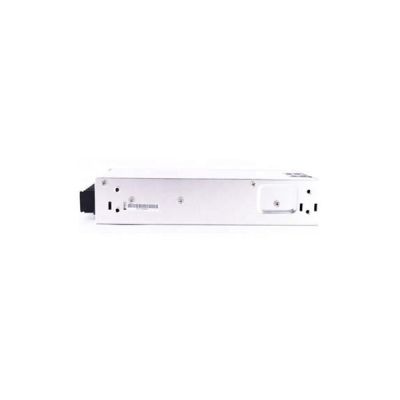

HRPG-300-15
62.89
Details
Meanwell HRPG-300-15 is 300 W Single Output with built-in active PFC function and 15V22A0-22A330W150mVp-p13.5-18V. Apart from the high efficiency up to 89%, the metallic mesh case design increases its heat dissipation. With delivering an extremely low no load power consumption, it permits the end system to easily satisfy the worldwide energy requirement, and complied with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Furthermore, HRPG-300-15 is equipped with Built-in DC OK signal, remote sense function, cooling fan ON-OFF control, and Built-in remote ON-OFF control. In addition, It has multiple protection types like short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. In view of its high efficiency, high reliability and long longevity. Meanwell HRPG-300-15 is a high price-to-performance power supply solution for various applications.
Meanwell HRPG-300-15 Specifications
| Model | HRPG-300-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 22A | |
| CURRENT RANGE | 0-22A | |
| RATED POWER | 330W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 13.5-18V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.3% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 3.5A/115VAC 1.8A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | |
| LEAKAGE CURR ENT | <1.2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 18.8-21.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) |
| DC OK SIGNAL | PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V | |
| REMOTE CONTROL | RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024, BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020 | |
| Others | MTBF | 176K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*105*41mm (L*W*H) | |
| PACKING | 0.95Kg;15pcs/15.3Kg/0.79CUFT | |
Meanwell HRPG-300-15 Features
l 5 years warranty
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l High efficiency up to 89%
l 1U low profile 41mm
l Built-in cooling fan ON-OFF control
l Built-in DC OK signal
l Built-in remote ON-OFF control
l Standby 5V@0.3A
l Built-in remote sense function
l Built-in constant current limiting circuit
l Withstand 300VAC surge input for 5 seconds
l No load power consumption<0.5W (Note.6)
l Protections: Short circuit / Overload / Over voltage / Over temperature
Meanwell HRPG-300-15 Mechanical Diagram
