HRPG-200-7.5
57.16
Details

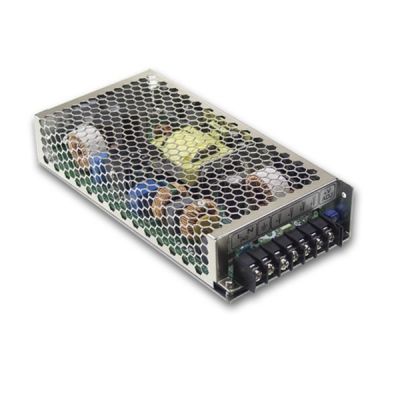

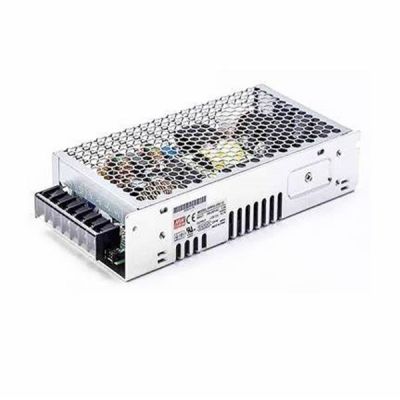

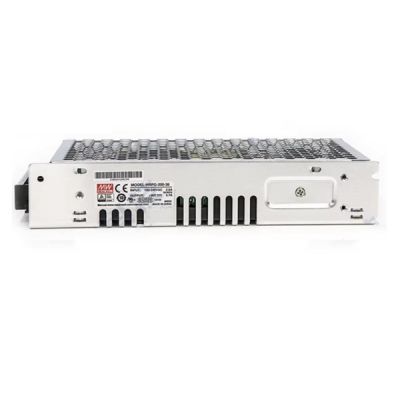

Meanwell HRPG-200-7.5 is 200W Single Output Enclosed Power Supply with 7.5V26.7A0-26.7A200.3W100mVp-p6.8-9V. The model highlights PFC Function, 1U low profile design and free air convection cooling. Apart from its high efficiency up to 90%, the metallic mesh case design enhances the heat dissipation. With delivering extremely low no load power consumption, it allows end system to easily fulfill the worldwide energy requirement, and complied with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Furthermore, HRPG-200-7.5 is provided with Built-in constant current limiting circuit and Built-in remote sense function. At the same time, it has various protection types such as short circuit, overload, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. As a result of its high efficiency, high reliability and long longevity. Meanwell HRPG-200-7.5 is a high price-to-performance power supply solution for various applications.
Meanwell HRPG-200-7.5 Specifications
| Model | HRPG-200-7.5 | |
| Output | DC VOLTAGE | 7.5V |
| RATED CURRENT | 26.7A | |
| CURRENT RANGE | 0-26.7A | |
| RATED POWER | 200.3W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 6.8-9V | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT (Typ.) | 2.1A/115VAC 1.1A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | |
| LEAKAGE CURR ENT | <1.2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 9.4-10.9V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 189.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*98*38mm (L*W*H) | |
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.87CUFT | |
Meanwell HRPG-200-7.5 Features
l 5V@0.3A standby
l 5-year warranty
l Natural air cooling
l Low height, only 38mm
l Built-in remote- control switch
l Built-in remote sensing function
l No-load consumption<0.5W
l High efficiency as high as 89%
l With active PFC function, PF>0.95
l Built-in constant current limiting circuit
l International universal full range AC input
l Withstand 300VAC surge input for 5 seconds
l Protection type: short circuit / over load / over voltage / over temperature
Meanwell HRPG-200-7.5 Mechanical Diagram
