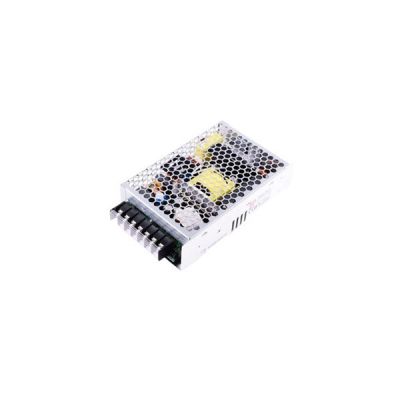

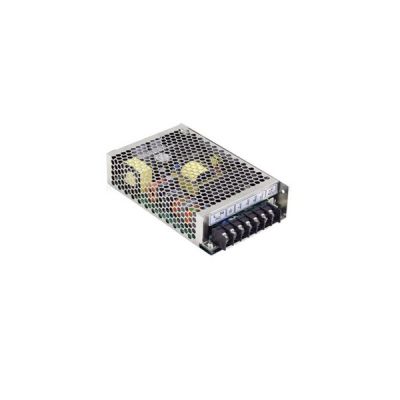

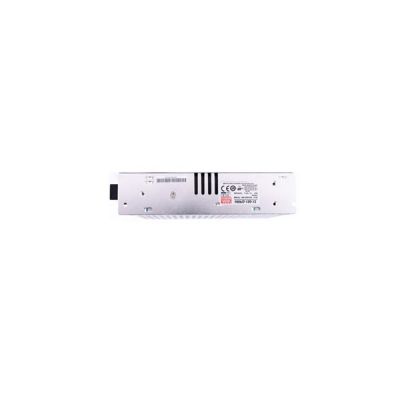

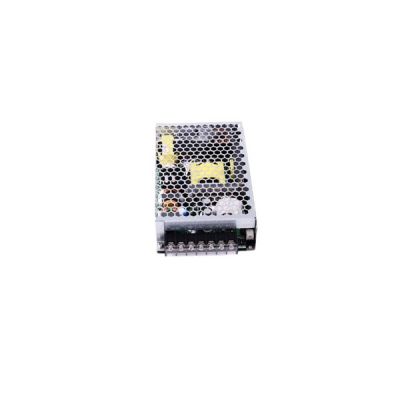

HRPG-150-48
44.27
Details
Meanwell HRPG-150-48 is 150 W Single Output with 48V3.3A0-3.3A158.4 and PFC Function.This is a new generation of green and environmentally friendly power supply, highlighting Universal AC input/Full range and high efficiency up to 89%. Moreover, it is equipped with Built-in constant current limiting circuit and Built-in remote sense & ON-OFF control. In addition, it has multiple protection types such as short circuit, overload, over voltage and Over temperature. Thanks to its high efficiency, high reliability and long longevity. Meanwell HRPG-150-48 is a suitable power supply solution for various fields.
Meanwell HRPG-150-48 Specifications
| Model | HRPG-150-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 3.3A | |
| CURRENT RANGE | 0-3.3A | |
| RATED POWER W | 158.4W | |
| RIPPLE & NOISE (max.) mVp-p | 240 | |
| VOLTAGE ADJ. RANGE | 40.8-55.2V | |
| VOLTAGE TOLERANCE | ±1.5% | |
| LINE REGUL ATION | ±0.2% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 1.7A/115VAC 0.9A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | |
| LEAKAGE CURR ENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) |
| REMOTE CONTROL | RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.04%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020 | |
| Others | MTBF | 213.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*38mm (L*W*H) | |
| PACKING | 0.61Kg; 24pcs/15.6Kg/0.9CUFT | |
Meanwell HRPG-150-48 Features
l 5 years warranty
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l High efficiency up to 88%
l Withstand 300V AC surge input for 5 seconds
l Cooling by free air convection
l Built-in constant current limiting circuit
l 1U low profile 38mm
l Built-in remote ON-OFF control
l Stand by 5V@0.3A
l Built-in remote sense function
l No load power consumption<0.5W
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HRPG-150-48 Mechanical Diagram
