HRPG-1000
180.29
Details
Meanwell HRPG-1000 is a single output enclosed type AC/DC power supply, and it offers 1000 W output power for a wide variety of industrial applications. The whole series operates for 90-264 VAC input voltage and provides models with different rated voltage line of 12V 15V 24V 48V, so that they can fulfill the demands for all kinds of industrial equipment. Each model is cooled by the built-in fan with speed control, and work for the temperature up to 70℃. In addition, HRPG-1000 has various built-in functions like auxiliary power, remote sense and remote on-off control. Therefore, it gives vast design flexibility for industrial application.
Meanwell HRPG-1000 Series Model Specifications
| Model | HRPG-1000-12 | HRPG-1000-15 | HRPG-1000-24 | HRPG-1000-48 | |
| Output | DC VOLTAGE | 12V | 15V | 24V | 48V |
| RATED CURRENT | 80A | 64A | 42A | 21A | |
| CURRENT RANGE | 0-80A | 0-64A | 0-42A | 0-21A | |
| RATED POWER | 960W (max. 1000W for 3 sec.) | 960W (max. 1000W for 3 sec.) | 1008W | 1008W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 200mVp-p | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 11-14V | 14-17V | 22-28V | 46-56V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.5% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load | ||||
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 - 63Hz | ||||
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 91.50% | 92.00% | 93.00% | 94.00% | |
| AC CURRENT (Typ.) | 8.5A/115VAC 5A/230VAC | ||||
| INRUSH CURRENT (Typ. ) | 25A/115VAC 40A/230VAC | ||||
| LEAKAGE CURR ENT | <1.2mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 14.5-16.5V | 18.2-20.6V | 29-33V | 58-65V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| FUNCTION | DC OK SIGNAL | The TTL signal out, PSU turn on = 3.3 ~ 5.6V ; PSU turn off = 0 ~ 1V. Please refer to the Function Manual | |||
| CURRENT SHARING | Up to 4000W or (3+1) units. Please refer to the Function Manual | ||||
| REMOTE ON-OFF CONTROL | Power ON : short; Power OFF : open. Please refer to the Function Manual | ||||
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual. | ||||
| 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) | ||||
| FAN CONTROL (Typ.) | Fan on/off by NTC(RT50) or 30% load min | ||||
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY &EMC | EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) | CLASS B | |||
| Radiated | BS EN/EN55032 (CISPR32) | CLASS B | |||
| Harmonic Current | BS EN/EN61000-3-2 | CLASS A | |||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | |||
| EMC IMMUNITY | BS EN/EN55024, BS EN/EN61000-6-2 | ||||
| Parameter | Standard | Test Level | |||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 2, 4KV contact | |||
| Radiated | BS EN/EN61000-4-3 | Level 3 | |||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | |||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV/Line-Line 4KV/Line-Earth | |||
| Conducted | BS EN/EN61000-4-6 | Level 3 | |||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | |||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods |
|||
| Others | MTBF | 286.6K hrs min. Telcordia SR-332 (Bellcore) ; 105.8K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 218*105*63.5mm (L*W*H) | ||||
| PACKING | 286.6K hrs min. Telcordia SR-332 (Bellcore) ; 105.8K hrs min. MIL-HDBK-217F (25℃) | ||||
Meanwell HRPG-1000 Series Features
l Universal AC input/Full range .
l Built-in active PFC function, PF>0.95
l High efficiency up to 94%
l Withstand 300VAC surge input for 5 seconds .
l Protections: Short circuit/Overload/Over voltage/Over temperature ;
l Built-in cooling fan ON-OFF control
l Current sharing up to 4000W (3+1)
l Built-in DC OK signal
l Built-in remote ON-OFF control
l Standby 5V@0.3A
l Built-in remote sense function
l No load power consumption<0.75W
l 5 years warranty
Meanwell HRPG-1000 Series Applications
l Factory control or automation equipment
l Test and measurement instrument
l Laser related machine
l Aging equipment
l RF application

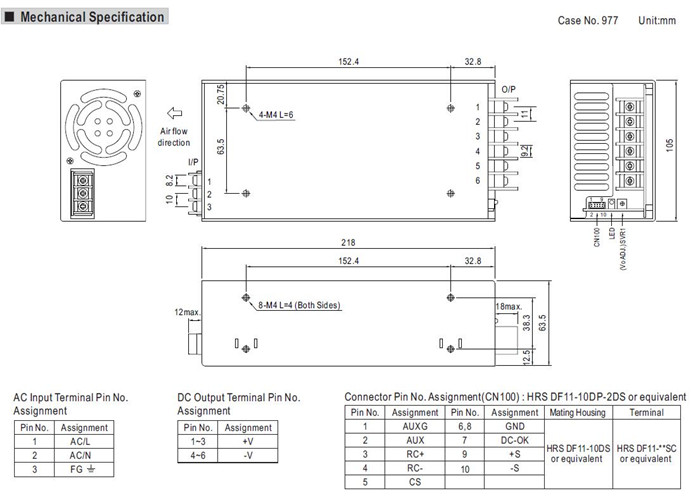

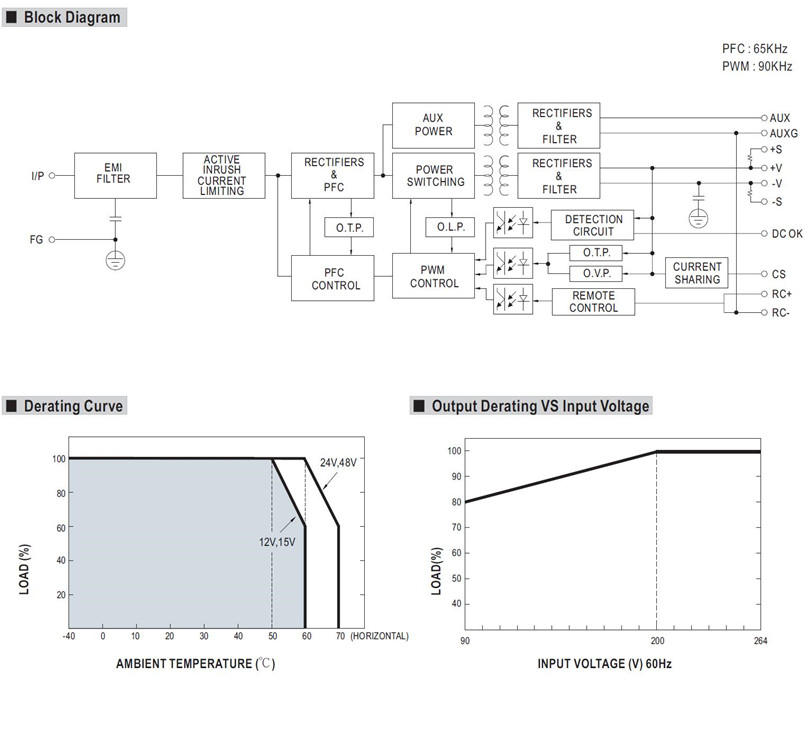

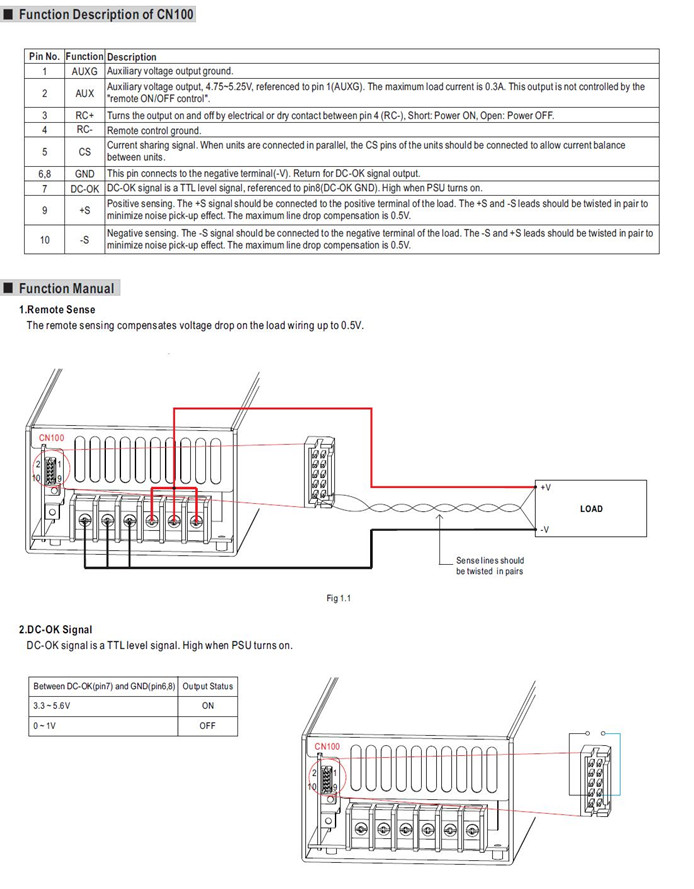

Meanwell HRPG-1000 Series Mechanical Diagram
