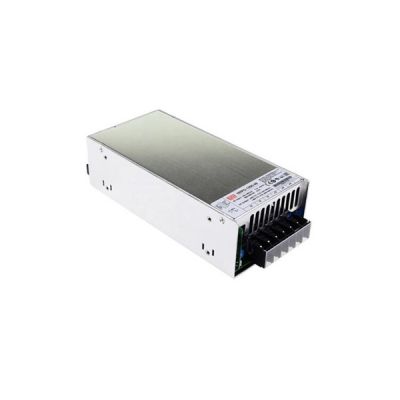

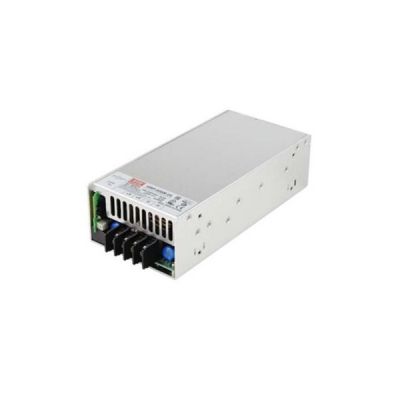

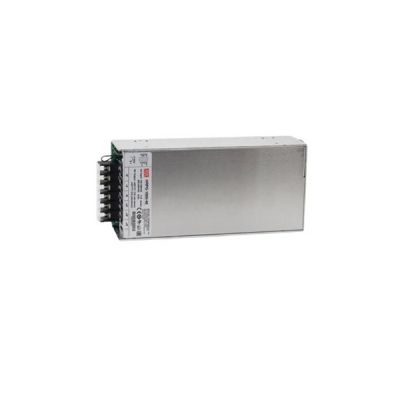

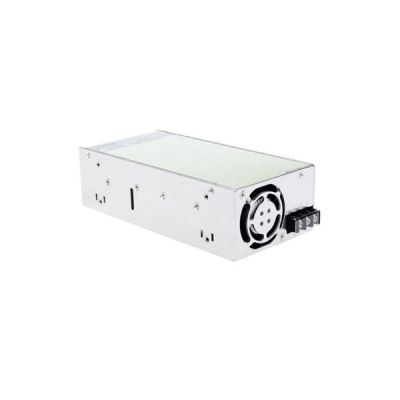

HRPG-1000-15
182.68
Details
Meanwell HRPG-1000-15 is a single output enclosed type AC/DC power supply with 15V64A0-64A960W150mVp-p14-17V. it offers 1000 W output power for a wide variety of industrial applications. Apart from high efficiency up to 92%, the metallic mesh case design improves the heat dissipation. This way, it allows the end system to easily satisfy the worldwide energy requirement, and complied with the international safety regulations such as UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004. HRPG-1000-15 is equipped with auxiliary power, remote sense and remote on-off control. Furthermore, It has multiple protection modes like short circuit, over load, over voltage and Over temperature, and withstand 300VAC surge input for 5 seconds as well. Thanks to the high efficiency, high reliability and long longevity. Meanwell HRPG-1000-15 gives vast design flexibility for industrial application.
Meanwell HRPG-1000-15 Specifications
| Model | HRPG-1000-15 | |
| Output | DC VOLTAGE | 15V |
| RATED CURRENT | 64A | |
| CURRENT RANGE | 0-64A | |
| RATED POWER | 960W (max. 1000W for 3 sec.) | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 14-17V | |
| VOLTAGE TOLERANCE | ±1.5% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 92.00% | |
| AC CURRENT (Typ.) | 8.5A/115VAC 5A/230VAC | |
| INRUSH CURRENT (Typ. ) | 25A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | <1.2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 18.2-20.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | DC OK SIGNAL | The TTL signal out, PSU turn on = 3.3 ~ 5.6V ; PSU turn off = 0 ~ 1V. Please refer to the Function Manual |
| CURRENT SHARING | Up to 4000W or (3+1) units. Please refer to the Function Manual | |
| REMOTE ON-OFF CONTROL | Power ON : short; Power OFF : open. Please refer to the Function Manual | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual. | |
| 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) | |
| FAN CONTROL (Typ.) | Fan on/off by NTC(RT50) or 30% load min | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 286.6K hrs min. Telcordia SR-332 (Bellcore) ; 105.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 218*105*63.5mm (L*W*H) | |
| PACKING | 286.6K hrs min. Telcordia SR-332 (Bellcore) ; 105.8K hrs min. MIL-HDBK-217F (25℃) | |
Meanwell HRPG-1000-15 Features
l 5 years warranty
l Standby 5V@0.3A
l Built-in DC OK signal
l High efficiency up to 94%
l Built-in remote ON-OFF control
l Built-in cooling fan ON-OFF control
l Current sharing up to 4000W (3+1)
l Built-in remote sense function
l No load power consumption<0.75W
l Universal AC input/Full range .
l Built-in active PFC function, PF>0.95
l Withstand 300VAC surge input for 5 seconds .
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HRPG-1000-15 Applications
l Laser related machine
l Aging equipment
l RF application
l Factory control or automation equipment
l Test and measurement instrument
Meanwell HRPG-1000-15 Mechanical Diagram
