HRP-300-5
65.87
Details

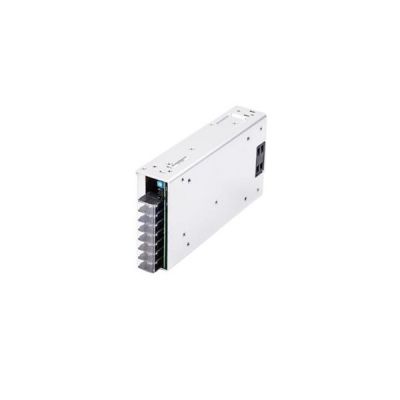

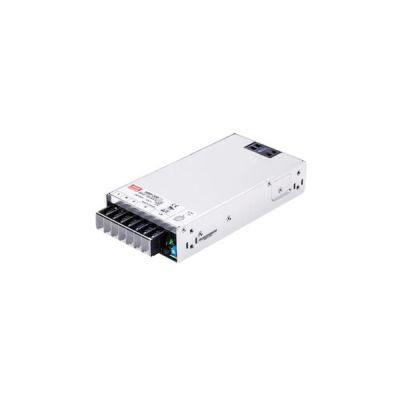

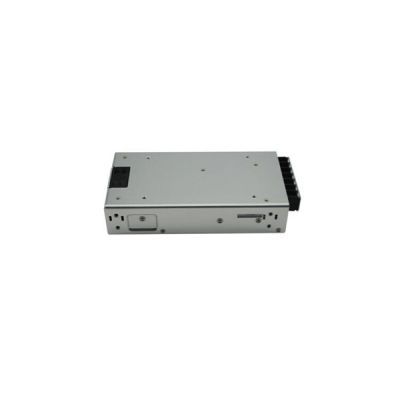

Meanwell HRP-300-5 is 300 W Single Output with PFC Function and 5V60A0-60A300W90mVp-p4.3-5.8V. Besides the high efficiency up to 89%, the metallic mesh case design enhances the heat dissipation. With delivering an extremely low no load power consumption, it allows the end system to easily meet the worldwide energy requirement, and complied with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1. Furthermore, HRP-300-5 is equipped with Built-in DC OK signal, remote sense function, cooling fan ON-OFF control, and constant current limiting circuit. Additionally, It has multiple protection types such as short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Due to its high efficiency, high reliability and long longevity. Meanwell HRP-300-5 is a high price-to-performance power supply solution for various applications.
Meanwell HRP-300-5 Specifications
| Model | HRP-300-5 | |
| Output | DC VOLTAGE | 5V |
| RATED CURRENT | 60A | |
| CURRENT RANGE | 0-60A | |
| RATED POWER | 300W | |
| RIPPLE & NOISE (max.) | 90mVp-p | |
| VOLTAGE ADJ. RANGE | 4.3-5.8V | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 82.00% | |
| AC CURRENT (Typ.) | 3.5A/115VAC 1.8A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | |
| LEAKAGE CURR ENT | <1.2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 6-7V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020 | |
| Others | MTBF | 176K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*105*41mm (L*W*H) | |
| PACKING | 0.95Kg;15pcs/15.3Kg/0.79CUFT | |
Meanwell HRP-300-5 Features
l Universal AC input/Full range
l 5 years warranty
l Built-in active PFC function, PF>0.95
l High efficiency up to 89%
l Withstand 300V AC surge input for 5 seconds
l Built-in constant current limiting circuit
l 1U low profile 41 mm
l Built-in cooling fan ON-OFF control
l Built-in DC OK signal
l Built-in remote sense function
l Protections: Short circuit / Overload / Over voltage / Over temperature
Meanwell HRP-300-5 Mechanical Diagram
