HRP-200
55.02
Details

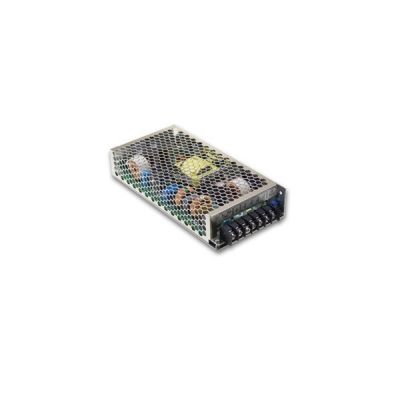

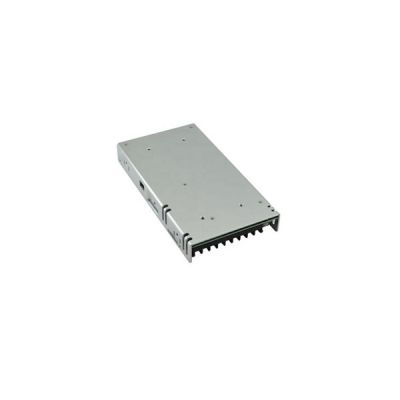

Meanwell HRP-200 Series is 200 W Single Output with PFC Function, 1U low profile 38mm and Cooling by free air convection. This is a new generation of green and environmentally friendly power supply, highlighting Universal AC input/Full range and high efficiency up to 89%. Moreover, it is equipped with Built-in constant current limiting circuit and Built-in remote sense function. In addition, it has multiple protection types such as short circuit, overload, over voltage and Over temperature, and also withstand 300VAC surge input for 5 seconds. Due to its high efficiency, high reliability and long longevity. Meanwell HRP-200 is a suitable power supply solution for various applications.
Meanwell HRP-200 Series Model Specifications
| Model | HRP-200-3.3 | HRP-200-5 | HRP-200-7.5 | HRP-200-12 | HRP-200-15 | HRP-200-24 | HRP-200-36 | HRP-200-48 | |
| Output | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 40A | 35A | 26.7A | 16.7A | 13.4A | 8.4A | 5.7A | 4.3A | |
| CURRENT RANGE | 0-40A | 0-35A | 0-26.7A | 0-16.7A | 0-13.4A | 0-8.4A | 0-5.7A | 0-4.3A | |
| RATED POWER | 132W | 175W | 200.3W | 200.4W | 201W | 201.6W | 205.2W | 206.4W | |
| RIPPLE & NOISE (max.) mVp-p | 80 | 90 | 100 | 120 | 150 | 150 | 250 | 250 | |
| VOLTAGE ADJ. RANGE | 2.8-3.8V | 4.3-5.8V | 6.8-9V | 10.2-13.8V | 13.5-18V | 21.6-28.8V | 28.8-39.6 | 40.8-55.2V | |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±1.5% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | ||||||||
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | ||||||||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 - 63Hz | ||||||||
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 84.00% | 86.00% | 88.00% | 88.00% | 88.00% | 89.00% | 89.00% | |
| AC CURRENT (Typ.) | 2.1A/115VAC 1.1A/230VAC | ||||||||
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | ||||||||
| LEAKAGE CURR ENT | <1.2mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||||||
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 3.96-4.62V | 6-7V | 9.4-10.9V | 14.4-16.8V | 18.8-21.8V | 30-34.8V | 41.4-48.6V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,heavy industry level, criteria A, EAC TP TC 020 | ||||||||
| Others | MTBF | 209.4K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 199*98*38mm (L*W*H) | ||||||||
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.87CUFT | ||||||||
Meanwell HRP-200 Product Features
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95.
l High efficiency up to 89%
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Built-in constant current limiting circuit
l 1U low profile 38mm
l Built-in remote sense function
l 5 years warranty

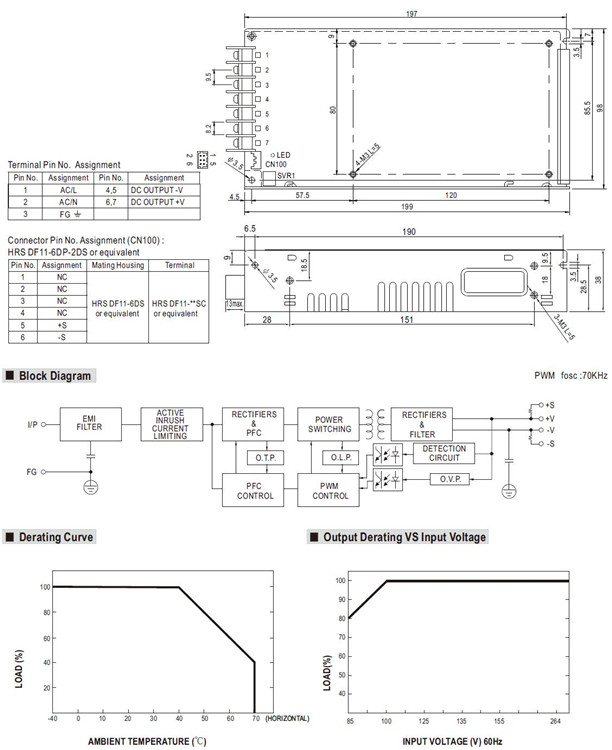

Meanwell HRP-200 Series Mechanical Diagram
