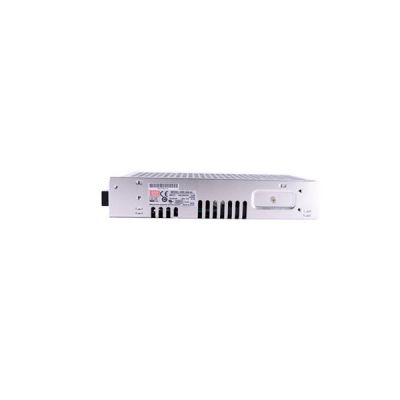

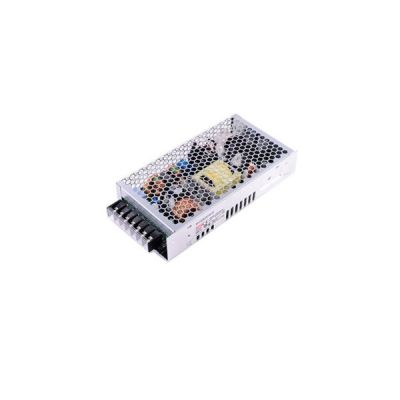

HRP-200-36
58.29
Details
Meanwell HRP-200-36 is 200 W Single Output with 36V5.7A0-5.7A205.2W250mVp-p,which has PFC Function, 1U low profile 38mm and free air convection cooling. This is a new generation of green and environmentally friendly power supply, highlighting Universal AC input/Full range and high efficiency up to 89%. It is also equipped with Built-in constant current limiting circuit and Built-in remote sense function. At the same time, HRP-200-36 has multiple protection types such as short circuit, overload, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Due to its high efficiency, high reliability and long longevity. Meanwell HRP-200-36 is a suitable power supply solution for various applications.
Meanwell HRP-200-36 Specifications
| Model | HRP-200-36 | |
| Output | DC VOLTAGE | 36V |
| RATED CURRENT | 5.7A | |
| CURRENT RANGE | 0-5.7A | |
| RATED POWER | 205.2W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 28.8-39.6 | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.2% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 89.00% | |
| AC CURRENT (Typ.) | 2.1A/115VAC 1.1A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | |
| LEAKAGE CURR ENT | <1.2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 41.4-48.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 209.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 199*98*38mm (L*W*H) | |
| PACKING | 0.77Kg; 18pcs/14.9Kg/0.87CUFT | |
Meanwell HRP-200-36 Features
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95.
l High efficiency up to 89%
l 1U low profile 38mm
l Built-in remote sense function
l 5 years warranty
l Withstand 300VAC surge input for 5 seconds
l Cooling by free air convection
l Built-in constant current limiting circuit
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HRP-200-36 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
