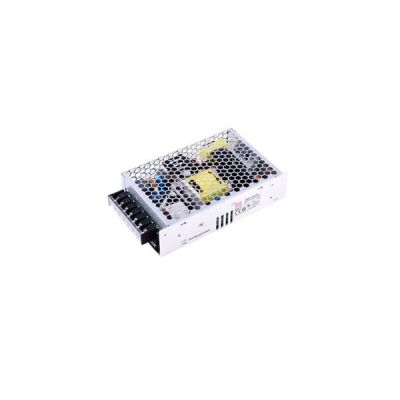

HRP-150-7.5
40.68
Details
Meanwell HRP-150-7.5 is 150 W Single Output with PFC Function and 7.5V20A0-20A150W100mVp-p6.8-9V. This is a new generation of green and environmentally friendly power supply featuring 1U low profile 38mm and Cooling by free air convection and Universal AC input/Full range and high efficiency up to 89%. Apart from them, it is also equipped with Built-in constant current limiting circuit and Built-in remote sense function. Additionally, it has multiple protection types like short circuit, overload, over voltage and over temperature. In view of its high efficiency, high reliability and long longevity. Meanwell HRP-150-7.5 is an ideal power supply solution for various applications.
Meanwell HRP-150-7.5 Specifications
| Model | HRP-150-7.5 | |
| Output | 7.5V | |
| RATED CURRENT | 20A | |
| CURRENT RANGE | 0-20A | |
| RATED POWER W | 150W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 6.8-9V | |
| VOLTAGE TOLERANCE | ±2.5% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1% | |
| SETUP, RISE TIME | 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT (Typ.) | 1.7A/115VAC 0.9A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | |
| LEAKAGE CURR ENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 9.4-10.9V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE CONTROL | RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -50 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.04%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020 | |
| Others | MTBF | 238.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*38mm (L*W*H) | |
| PACKING | 0.61Kg; 24pcs/15.6Kg/0.9CUFT | |
Meanwell HRP-150-7.5 Features
l 5 years warranty
l 1U low profile 38mm
l High efficiency up to 89%
l Cooling by free air convection
l Built-in constant current limiting circuit
l Built-in remote sense function
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HRP-150-7.5 Mechanical Diagram
