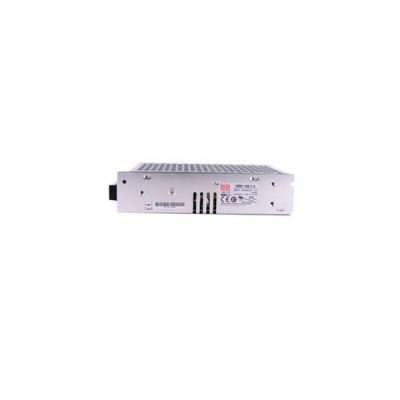

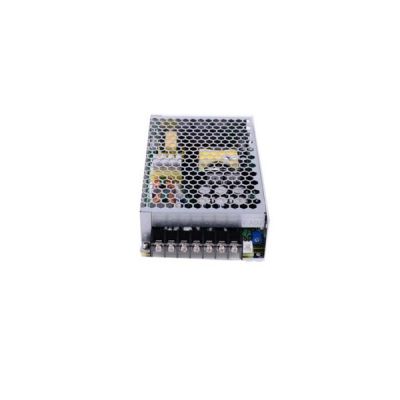

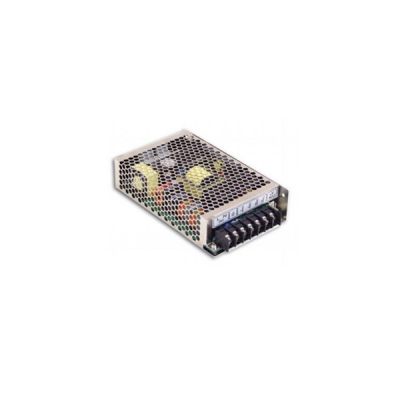

Meanwell HRP-100 is 100W Single Output with PFC Function, Height only 38mm and natural air cooling. This is a new generation of green and environmentally friendly power supply, featuring Universal AC input/Full range and High efficiency. Moreover, it is equipped with Built-in remote ON-OFF control. Meanwell HRP-100 series complies with international universal full range AC input with active PFC Function, and can withstand 300VAC surge input for 5 seconds. In addition, it has multiple protection modes such as short circuit, overload and overvoltage, all using 105°C long-life capacitors. Due to high efficiency, high reliability and long longevity. Meanwell HRP-100 is suitable for a wide range of applications.
Meanwell HRP-100 Series Model Specifications
| Model | HRP-100-3.3 | HRP-100-5 | HRP-100-7.5 | HRP-100-12 | HRP-100-15 | HRP-100-24 | HRP-100-36 | HRP-100-48 | |
| Output | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 20A | 17A | 13.5A | 8.5A | 7A | 4.5A | 2.9A | 2.2A | |
| CURRENT RANGE | 0-20A | 0-17A | 0-13.5A | 0-8.5A | 0-7A | 0-4.5A | 0-2.9A | 0-2.2A | |
| RATED POWER W | 66W | 85W | 101.3W | 102W | 105W | 108W | 104.4W | 105.6W | |
| RIPPLE & NOISE (max.) mVp-p | 80 | 80 | 100 | 120 | 150 | 150 | 200 | 240 | |
| VOLTAGE ADJ. RANGE | 3.1-3.8V | 4.75-5.8V | 7.1-9V | 11.4-13.8V | 14.25-18V | 22.8-28.8V | 34.2-39.6V | 45.6-55.2V | |
| VOLTAGE TOLERANCE | +2.5,-3.5% | ±2.5% | ±2.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±2% | ±2% | ±1.5% | ±0.8% | ±0.8% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load | ||||||||
| HOLD UP TIME | 50ms/230VAC 20ms/115VAC at full load | ||||||||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 - 63Hz | ||||||||
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | ||||||||
| EFFICIENCY (Typ.) | 78.00% | 83.00% | 84.00% | 87.50% | 88.00% | 88.50% | 89.00% | 90.00% | |
| AC CURRENT (Typ.) | 1.1A/115VAC 0.6A/230VAC | ||||||||
| INRUSH CURRENT (Typ. ) | 35A/115VAC 65A/230VAC | ||||||||
| LEAKAGE CURR ENT | <1mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||||||
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 3.96-4.62V | 6-7V | 9.4-10.9V | 14.4-16.8V | 18.8-21.8V | 30-34.8V | 41.4-48.6V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| FUNCTION | REMOTE CONTROL | RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off | |||||||
| ENVIRONMENT | WORKING TEMP | -40 ~ +60℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.04%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020 | ||||||||
| Others | MTBF | 295.7K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 159*97*38mm (L*W*H) | ||||||||
| PACKING | 0.56Kg; 24pcs/15Kg/0.9CUFT | ||||||||
Meanwell HRP-100 Series Features
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 90%
l Withstand 300V AC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage
l Protections: Over temperature (optional)
l Cooling by free air convection
l 1U low profile 38mm
l Built-in remote ON-OFF control
l No load power consumption<0.5W
l All using 105C long life electrolytic capacitors
l 5 years warranty

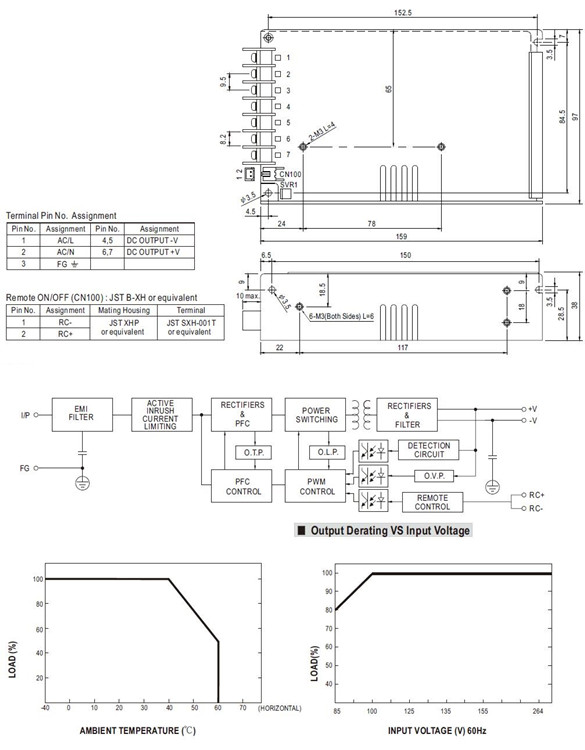

Meanwell HRP-100 Series Mechanical Diagram
