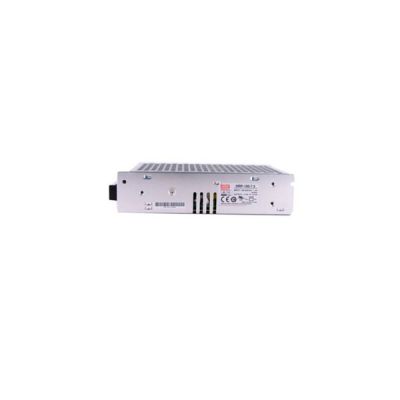

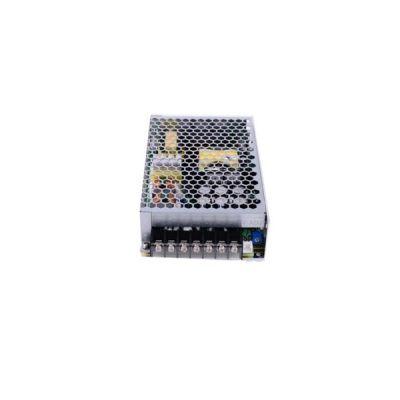

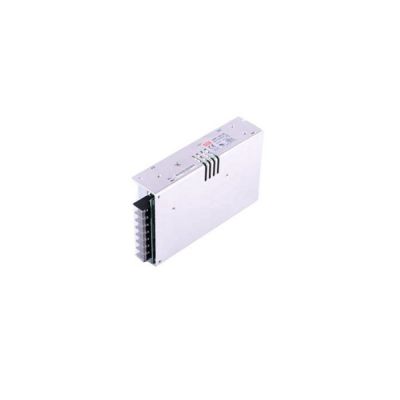

HRP-100-5
35.24
Details
Meanwell HRP-100-5 is 100W Single Output with PFC Function, Height only 38mm and natural air cooling and 5V17A0-17A85W804.75-5.8V. It is a new generation of green and environmentally friendly power supply with Universal AC input/Full range and High efficiency, and is also equipped with Built-in remote ON-OFF control. Meanwell HRP-100 -5 complies with international universal full range AC input with active PFC Function, and can withstand 300VAC surge input for 5 seconds. What’s more, it has multiple protection modes like short circuit, overload and overvoltage, all using 105°C long-life capacitors. Because of its high efficiency, high reliability and long longevity. Meanwell HRP-100-5 is suitable for a wide range of applications.
Meanwell HRP-100-5 Specifications
| Model | HRP-100-5 | |
| Output | DC VOLTAGE | 5V |
| RATED CURRENT | 17A | |
| CURRENT RANGE | 0-17A | |
| RATED POWER W | 85W | |
| RIPPLE & NOISE (max.) mVp-p | 80 | |
| VOLTAGE ADJ. RANGE | 4.75-5.8V | |
| VOLTAGE TOLERANCE | ±2.5% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±2% | |
| SETUP, RISE TIME | 2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load | |
| HOLD UP TIME | 50ms/230VAC 20ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT (Typ.) | 1.1A/115VAC 0.6A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 65A/230VAC | |
| LEAKAGE CURR ENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 6-7V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE CONTROL | RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off |
| ENVIRONMENT | WORKING TEMP | -40 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.04%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020 | |
| Others | MTBF | 295.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*38mm (L*W*H) | |
| PACKING | 0.56Kg; 24pcs/15Kg/0.9CUFT | |
Meanwell HRP-100-5 Features
l 5 years warranty
l 1U low profile 38mm
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 90%
l Cooling by free air convection
l Built-in remote ON-OFF control
l No load power consumption<0.5W
l All using 105C long life electrolytic capacitors
l Withstand 300V AC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage
l Protections: Over temperature (optional)
Meanwell HRP-100-5 Mechanical Diagram
