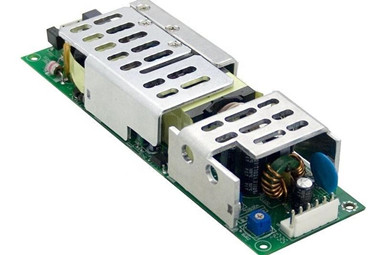

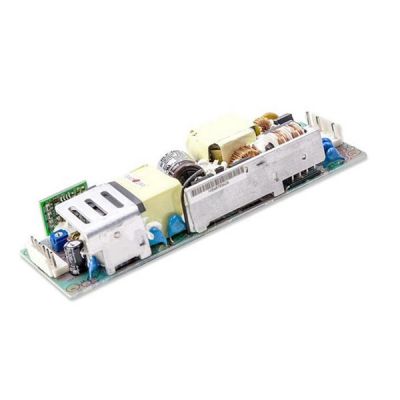

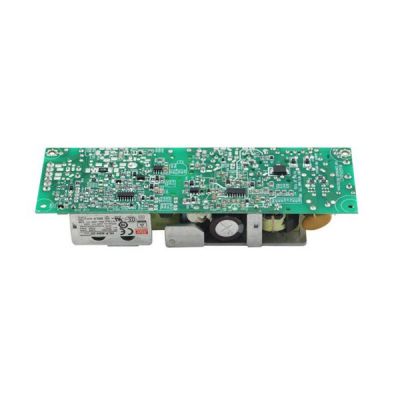

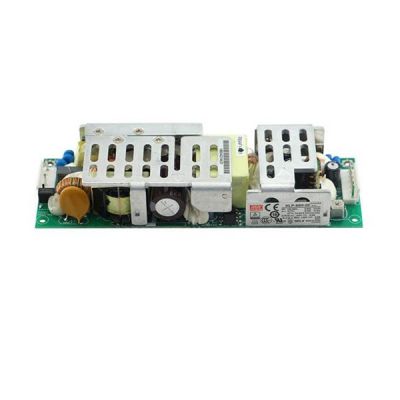

HLP-80H
21.06
Details
Meanwell HLP-80H Series is 80W Single Output Switching Power Supply highlighting universal AC input/Full range (up to 305VAC). The entire series accepts 90~305VAC input and offers various output voltages between 12V and 54V. Since the efficiency reaches high up to 90.5% and the extremely low no load power consumption. The product is able to operate under -40 ~ +70℃ just using free air convection. What’s more, HLP-80H is equipped with various protections such as Short circuit, Over current, Over voltage and Over temperature. Considering its longevity, high efficiency, and excellent quality, Meanwell HLP-80H Series is ideal for applications such as LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.
Meanwell HLP-80H Series Model Specifications
| Model | HLP-80H-12 | HLP-80H-15 | HLP-80H-20 | HLP-80H-24 | HLP-80H-30 | HLP-80H-36 | HLP-80H-42 | HLP-80H-48 | HLP-80H-54 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| RATED CURRENT | 5A | 5A | 4A | 3.4A | 2.7A | 2.3A | 1.95A | 1.7A | 1.5A | |
| RATED POWER | 60W | 75W | 80W | 81.6W | 81W | 82.8W | 81.9W | 81.6W | 81W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.5V | 13.5-17V | 17-22V | 22-27V | 27-33V | 33-40V | 38-46V | 43-53V | 49-58V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer | |||||||||
| 4-5A | 4-5A | 3.2-4A | 2.72-3.4A | 2.16-2.7A | 1.84-2.3A | 1.56-1.96A | 1.36-1.7A | 1.2-1.5A | ||
| VOLTAGE TOLERANCE | ±2.5% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| HOLD UP TIME (Typ.) | 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load | |||||||||
| SETUP TIME | 16ms at full load 230VAC /115VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR (Typ.) | PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input | |||||||||
| EFFICIENCY (Typ.) | 87.50% | 88.50% | 89.50% | 90.00% | 90.00% | 90.00% | 90.00% | 90.00% | 90.00% | |
| AC CURRENT (Typ.) | 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=525μs measured at 50% Ipeak) at 230VAC | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 14-17V | 18-24V | 23-30V | 28-35V | 35-43V | 41-49V | 48-58V | 54-65V | 59-68V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; Design refer to UL60950-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=60% load, 12V model >=65% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020 | |||||||||
| Others | MTBF | 2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 167*53*29.5mm (L*W*H) | |||||||||
| PACKING | 0.27Kg; 36pcs/11.2Kg/0.67CUFT | |||||||||
Meanwell HLP-80H Series Features
l Universal AC input/Full range (up to 305VAC)
l Built-in active PFC function
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Cooling by free air convection
l Output constant current level adjustable
l Class 2 power unit

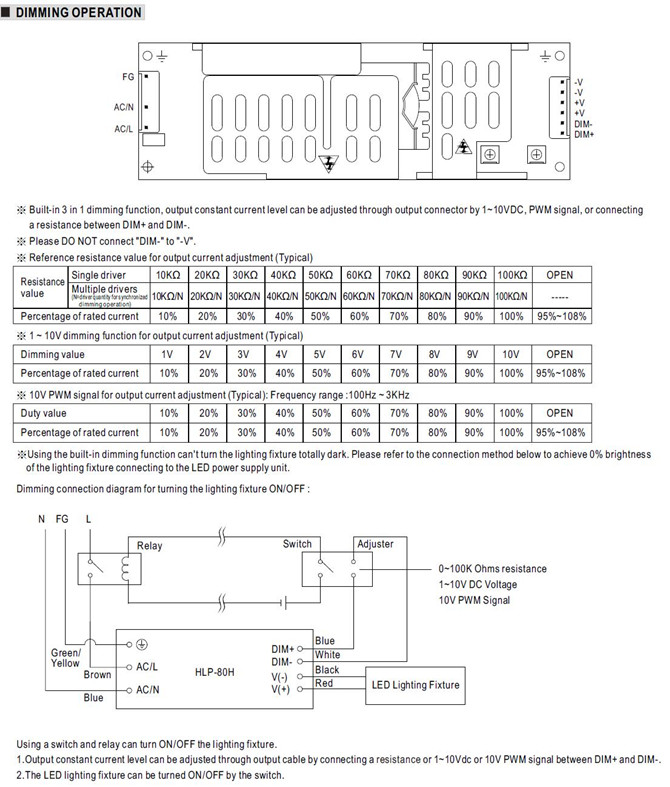

l Three in one dimming function (1~10Vdc or PWM signal or resistance)
l Suitable for built in LED lighting system
l Suitable for dry/damp locations
l 100% full load burn-in test
l 3 years warranty

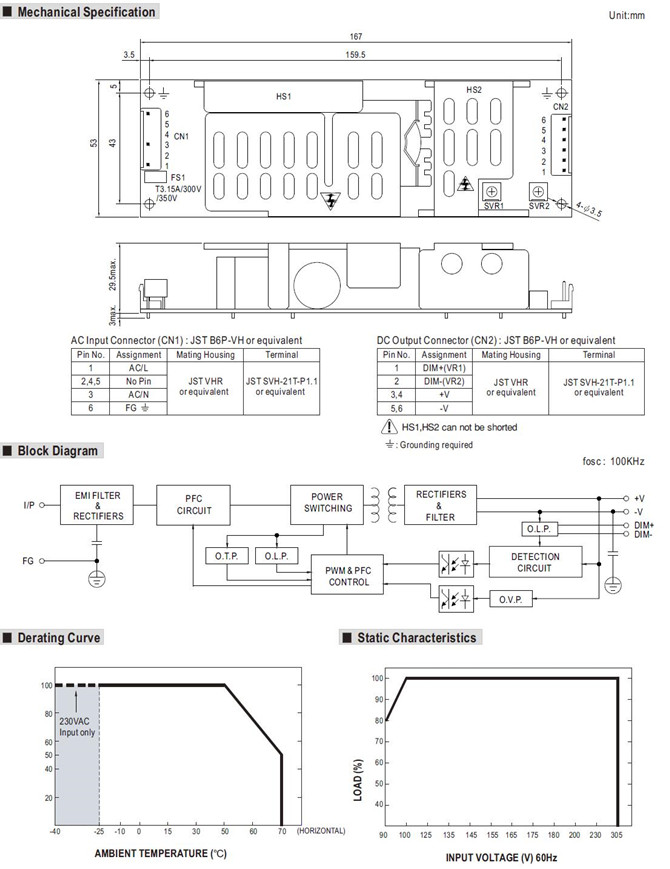

Meanwell HLP-80H Series Mechanical Diagram
