HLP-80H-42
21.98
Details

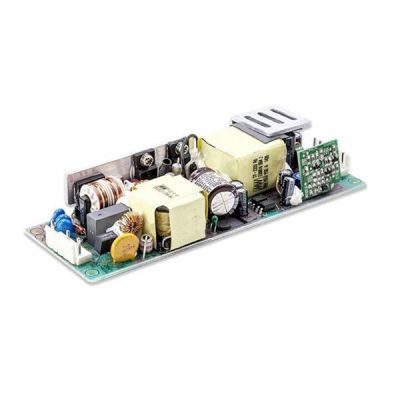

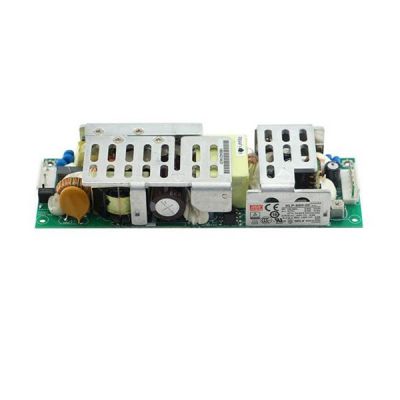

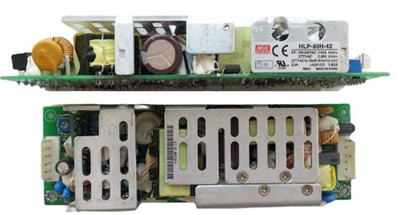

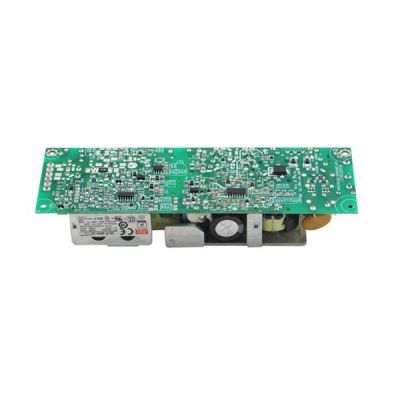

Meanwell HLP-80H-42 is 80W Single Output Switching Power Supply with 42V25.2-42V1.95A81.9W200mVp-p38-46V. The model offers universal AC input/Full range (up to 305VAC). It also accepts 90~305VAC input and offers output voltage 42V. Since the efficiency reaches high up to 90.5% and the extremely low no load power consumption. The item is able to work under -40 ~ +70℃ just using free air convection. In addition, HLP-80H-42 is equipped with various protections like Short circuit, Over current, Over voltage and Over temperature. Due to its longevity, high efficiency, and excellent quality, Meanwell HLP-80H-42 is ideal for applications such as LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.
Meanwell HLP-80H-42 Specifications
| Model | HLP-80H-42 | |
| OUTPUT | DC VOLTAGE | 42V |
| CONSTANT CURRENT REGION | 25.2-42V | |
| RATED CURRENT | 1.95A | |
| RATED POWER | 81.9W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 38-46V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer | |
| 1.56-1.96A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| HOLD UP TIME (Typ.) | 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load | |
| SETUP TIME | 16ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=525μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 48-58V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; Design refer to UL60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=60% load, 12V model >=65% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020 | |
| Others | MTBF | 2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 167*53*29.5mm (L*W*H) | |
| PACKING | 0.27Kg; 36pcs/11.2Kg/0.67CUFT | |
Meanwell HLP-80H-42 Features
l 3 years warranty
l Class 2 power unit
l 100% full load burn-in test
l Built-in active PFC function
l Cooling by free air convection
l Suitable for dry/damp locations
l Suitable for built in LED lighting system
l Output constant current level adjustable
l Universal AC input/Full range (up to 305VAC)
l Three in one dimming function (1~10Vdc or PWM signal or resistance)
l Protections: Short circuit/Over current/Over voltage/Over temperature
Meanwell HLP-80H-42 Mechanical Diagram
