HLP-60H-30
21.69
Details

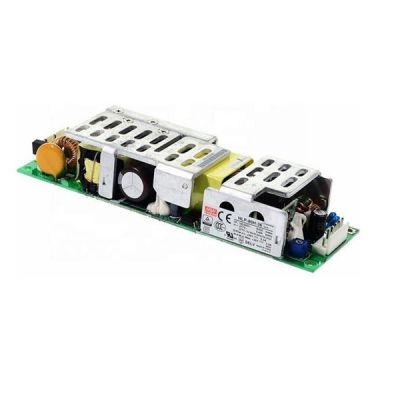

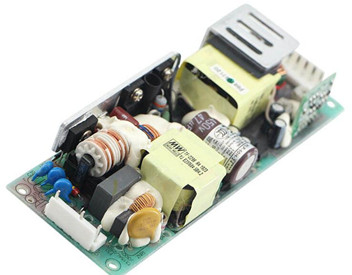

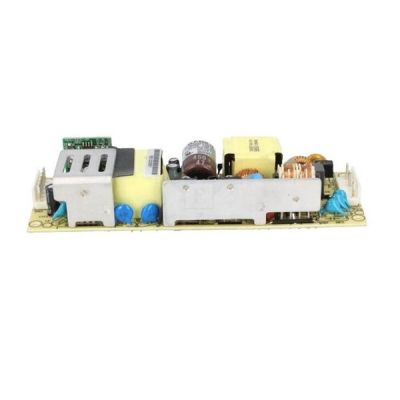

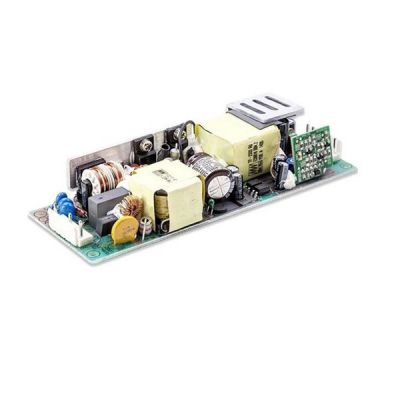

Meanwell HLP-60H-30 is 60W Single Output Switching Power Supply with 30V18-30V2A60W200mVp-p27-33V. The model offers universal AC input/Full range (up to 305VAC), and It accepts 90~305VAC input with output voltage 30V. As the efficiency reaches high up to 90.5% and the extremely low no load power consumption. HLP-60-30 is able to work under -40 ~ +70℃ just using free air convection. In addition, the product is equipped with various protections like Short circuit, Over current, Over voltage and Over temperature. In view of its long lifetime, high efficiency, and excellent quality, Meanwell HLP-60H-30 is ideal for applications such as LED lighting, LED electronic signage, LED decorative power supply, LED stage lights, etc.
Meanwell HLP-60H-30 Specifications
| Model | HLP-60H-30 | |
| OUTPUT | DC VOLTAGE | 30V |
| CONSTANT CURRENT REGION | 18-30V | |
| RATED CURRENT | 2A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 27-33V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer | |
| 1.2-2A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC at full load | |
| SETUP TIME | 500ms, 80ms at full load 230VAC / 115VAC | |
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>= 75% at 277VAC input | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A (twidth=265μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 35-43V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), BS EN/EN61347-1, BS EN/EN61347-2-13, GB19510.14, GB19510.1, EAC TP TC 004 approved ; design refer to UL60950-1, BS EN/EN60335-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, GB17743, GB17625.1, BS EN/EN61000-3-2 Class C (>=60% load) ; BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020 | |
| Others | MTBF | 3130.5K hrs min. Telcordia SR-332(Bellcore) ; 288.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 147*53*27mm (L*W*H) | |
| PACKING | 0.2Kg;72pcs/15.4Kg/1.01CUFT | |
Meanwell HLP-60H-30 Features
l Class 2 power unit
l 3 years warranty
l Built-in active PFC function
l Cooling by free air convection
l Suitable for dry/damp locations
l 100% full load burn-in test
l Output constant current level adjustable
l Suitable for built in LED lighting system
l Universal AC input/Full range (up to 305VAC)
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Three in one dimming function (1~10Vdc or PWM signal or resistance)
Meanwell HLP-60H-30 Mechanical Diagram
