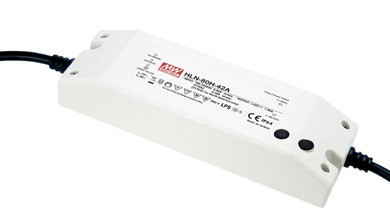

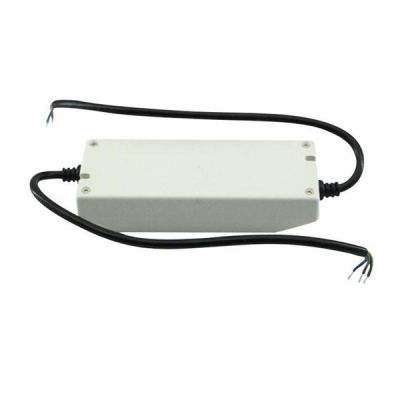

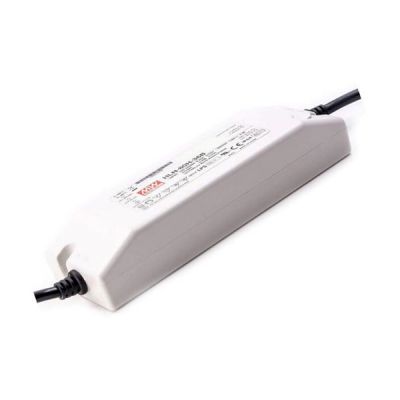

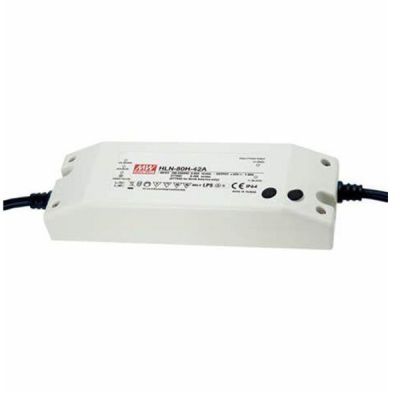

Meanwell HLN-80H Series is 80W Single Output Switching Power Supply with dustproof and waterproof plastic shell. Compared with PLN-60 and PLP-60 Series, HLN-80H increases by 1~4% in efficiency under -40 °C (230VAC condition). At the same time, HLN-80H has wide input voltage range of 90~305VAC, which is used in general 115VAC or 230VAC areas, but also suitable for 277VAC power systems in North America. The built-in two-stage active PFC function could meet the requirements of EN61000-3-2 Class C (under 60% load) for EU harmonic interference limit for lighting products, and PF>0.9 limit above 60% load. HLN-80H is also able to withstand industrial-grade instantaneous lightning surge 4KV (EN61000-4-5). Since the efficiency reaches high up to 91%, the power supply can only use natural air cooling heat dissipation to operate at -40℃~+50℃. Additionally, built-in standard functions include short circuit, overload, over voltage, and over temperature. The series is certified with UL/CUL/TUV/CB/CE and other international certifications including UL8750, EN61347-2-13. Considering its longevity, high efficiency, and excellent quality, Meanwell HLN-80H Series is ideally suitable for LED indoor lighting, LED electronic billboards, LED decorative power supplies, LED stage lights, etc.
Meanwell HLN-80H Series Model Specifications
| Model | HLN-80H-12□ | HLN-80H-15□ | HLN-80H-20□ | HLN-80H-24□ | HLN-80H-30□ | HLN-80H-36□ | HLN-80H-42□ | HLN-80H-48□ | HLN-80H-54□ | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| RATED CURRENT | 5A | 5A | 4A | 3.4A | 2.7A | 2.3A | 1.95A | 1.7A | 1.5A | |
| RATED POWER | 60W | 75W | 80W | 81.6W | 81W | 82.8W | 81.9W | 81.6W | 81W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8-13.5V | 13.5-17V | 17-22V | 22-27V | 27-33V | 33-40V | 38-46V | 43-53V | 49-58V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer A type only | |||||||||
| 3-5A | 3-5A | 2.4-4A | 2.04-3.4A | 1.62-2.7A | 1.38-2.3A | 1.17-1.95A | 1.02-1.7A | 0.9-1.5A | ||
| VOLTAGE TOLERANCE | ±2.5% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP TIME | 1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load | |||||||||
| HOLD UP TIME (Typ.) | 16ms at full load 230VAC /115VAC | |||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||

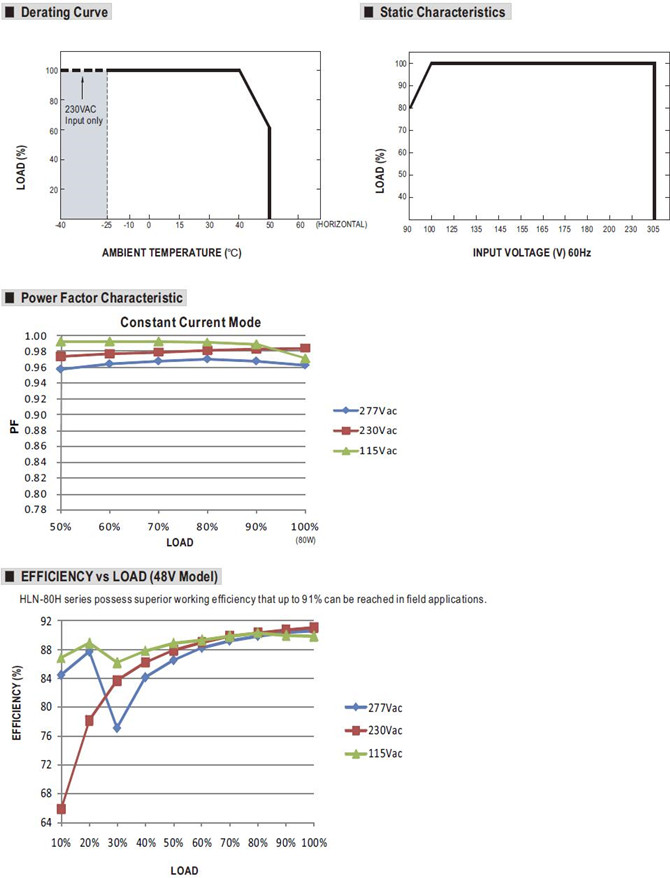

| POWER FACTOR (Typ.) | PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input | |||||||||
| EFFICIENCY (Typ.) | 88.00% | 89.00% | 90.00% | 90.50% | 91.00% | 91.00% | 91.00% | 91.00% | 91.00% | |
| AC CURRENT (Typ.) | 0.85A/115VAC 0.425A/230VAC 0.4A/277VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 14-17V | 18-24V | 23-30V | 28-35V | 35-43V | 41-49V | 48-58V | 54-63V | 59-68V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP | -40 ~ +50℃ (Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004,GB19510.1,GB19510.14 approved ; Design refer to UL60950-1 | |||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=60% load, 12V model >=65% load) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020 | |||||||||
| Others | MTBF | 2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 181*61.5*35mm (L*W*H) | |||||||||
| PACKING | 0.5Kg; 24pcs/13Kg/0.87CUFT | |||||||||
| HLN-80H-12A A: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer. B : IP64 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance. |
||||||||||
Meanwell HLN-80H Series Features
l Universal AC input/Full range (up to 305VAC)
l Built-in active PFC function
l Protections: Short circuit/Over current/Over voltage/Over temperature
l Cooling by free air convection
l OCP point adjustable through output cable or internal potentiometer
l Fully isolated plastic case with IP64 level
l Class 2 power unit
l Three in one dimming function (1~10Vdc or PWM signal or resistance)
l Suitable for LED lighting, Industrial Lighting and moving sign applications
l Compliance to worldwide safety regulations for lighting
l Suitable for dry/damp locations or outdoor application
l 3 years warranty

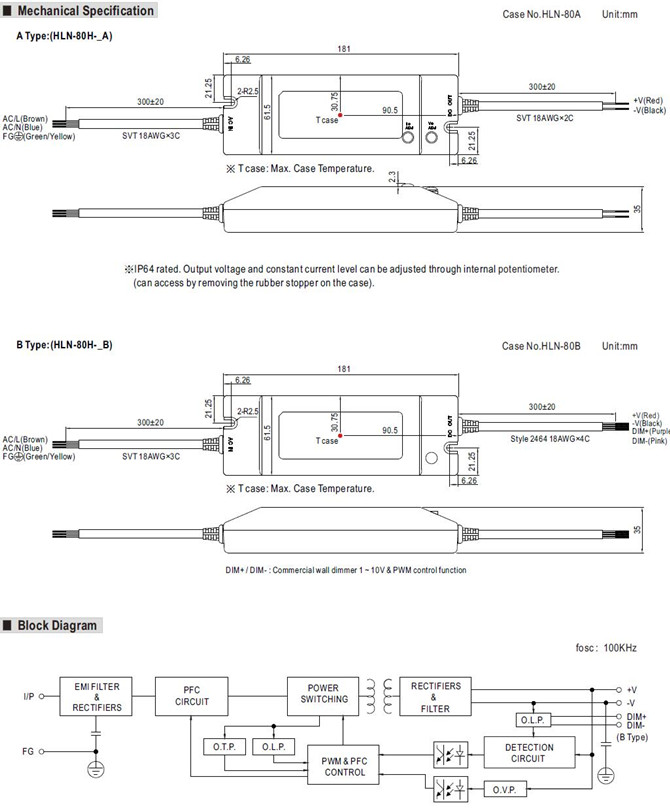

Meanwell HLN-80H Series Mechanical Diagram
